Wireless Crane Camera System
Total Solution for All Cranes
Optimized Construction Project with One System
Improve communication with ground staff
Lift faster & safer without stress
Ensure complies OSHA safety regulatory
Reduce costly accidental & fatal injury
Check-up multiple sites anytime remotely
Ensure project critical paths are met
How Apollo M1 Works

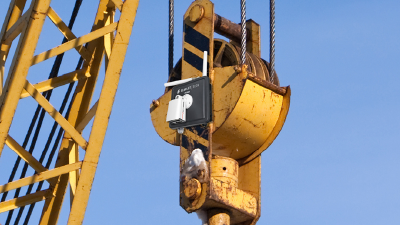

- Wireless Hook View Camera
Wide-angle downward camera installed on the hook block for rigging details - Wireless Solar-Battery Power Station
Dual power integration, solar panel + rechargeable battery, supports the camera for long hours continuous operation. - Wireless Touchscreen Monitor
Live stream audio-video feed and recording (up to 4 camera views) inside of the cabin - Wireless Winch View Camera
Wide-angle cameras installed on the winch/sides of the crane for the full-range operation details
Apollo Cam Smartphone App
Live stream audio-video feeds on your smartphone via 4G LTE technology for remote monitoring
Enhance Crane Load View
Increase Situational Awareness
Tired of blind lifting ? Keep everything in sight with just one tool.
Wireless crane camera system with dual wide-angle cameras for hook and winch part of the crane.
Avoid Blind Lift Collision
Improve Crane Safety
Lift safer and faster with wireless crane camera system.
Get instant visuals and audio confirmation of the load and surroundings inside of the cabin.
Instant Live View, Anytime, Anywhere
Manage multiple crane operations on the go through 4G LTE technology. Livestream up to 16 channels of audio-visual feeds on any smart device and take HD snapshots.
Auto-Switch Smart Power Charging
7 days Backup Electricity
Free from power outage anxiety and maintenance downtime. High-volume rechargeable battery stores 7-days of backup power and makes it available on demand for continuous operation without sunlight..........Read More
1.5X More Energy Conversion
Industry-leading Waveguide solar panel collects wide spectral of diffused sunlight. The solar energy converts 1.5x more to electricity than any traditional solar modules..........Read More
Smart Power Management
Provides reliable, consistent power in all weather. Solar power station detects light intensity and automatically switch between solar panel & li-ion battery to maximize the camera uptime..........Read More
“Innovation distinguishes between a leader and a follower.”
- Smart Solar Power Station
- Hook View Camera
- Winch View Camera
- Touchscreen Monitor
Wireless Crane Load View Camera System Comparison
| Apollo M1 | B Cam | H Cam | O Cam | |
|---|---|---|---|---|
| Camera System | 2 FHD audio-video cameras | 1 Camera | 1 Camera | 1 Camera |
| Battery Power | Self-Sustained Solar Panel 60+ hrs Battery Power | Battery Pack (12 hrs) | Build-in Battery (18 hrs) | Battery Pack (12 hrs) |
| Monitor | 10.1” LCD Sunlight readable touchscreen | 10.1” LCD | 9.7” LCD | 12” LCD |
| Remote Live View | 4G router included + free iOS/Android App *sim card and 4G service fee not included | Charge separately | Charge separately | Charge separately |
| Price | $$ | $$$$ | $$ | $$$ |
| Get a Quote |
Darren Whitford
Managing Director, Skyline Arcomet Ltd
Darren Whitford
Managing Director, Skyline Arcomet Ltd
Darren Whitford
Managing Director, Skyline Arcomet Ltd
Daníel Sigurðsson
Managing Director, DS Lausnir Ehf
Darren Whitford
Managing Director, Skyline Arcomet Ltd
Darren Whitford
Managing Director, Skyline Arcomet Ltd
Wilfred D'Souza
Services Manager, Johnson Arabia LLC
Darren Whitford
Managing Director, Skyline Arcomet Ltd
Darren Whitford
Managing Director, Skyline Arcomet Ltd
Darren Whitford
Managing Director, Skyline Arcomet Ltd
Darren Whitford
Managing Director, Skyline Arcomet Ltd
| Item | Description |
|---|---|
| Dimension | 285 x 198 x 67mm |
| Weight | 835g |
| Display | 10.1” Touch Panel LCD |
| Video | HD (1280x720) (default) FHD (1920x1080) |
| Waterproof | IP67 |
| Wireless | 2.4GHz |
| I/O Ports | Micro SD x1, USB 2.0 x1, RJ45 x1, Mini HDMI x1 |
| Recording | Micro SD card or external HDD via USB port |
| Power | DC 5V, 3A |
| Battery Volume | 4400mAh (Up to 2 hours of remote monitoring) |
| Operation Temperature | -20°C to 60°C |
| Item | Description |
|---|---|
| Dimension | 280 x 246 x 65mm |
| Weight | 4.8kg |
| Battery Type | Molicel 21700 |
| Battery Volume | 41000mAh / 442.8Wh |
| Input | Pmax: 7.1W, Vmp: 15.8V, Imp: 0.45A (Solar) 6A/115VAC, 3A/230VAC (AC/DC Charger) |
| Output | 0.8A/9V (5-pin port) 1A/5V (USB port) |
| Battery Working Hours | Up to 70hrs (Total 7-14 days, daily working 8 hours.) |
| DC/AC Charger | Voltage: 110/220V Charging Time: 5 hours |
| Waterproof | IP67 |
| Installation | Mounting by Magnets |
| Operation Temperature | -20°C to 55°C |
| Item | Description |
|---|---|
| Dimension | 148 x 90 x80mm |
| Weight | 990g |
| Video | Full HD (1920x1080) |
| Field of View | 114° |
| Night Vision | IR LED x 20 |
| Zoom | 2x |
| Audio | One-way audio with built-in microphone |
| Waterproof | IP67 |
| Wireless | 2.4GHz |
| Power Supply | Smart Solar Power Station |
| Operation Temperature | -20°C to 55°C |
| Real-time Live View | Yes (via APP) |
| Item | Description |
|---|---|
| Dimension | 129 x 85 x 73mm |
| Weight | 450g |
| Video | Full HD (1920x1080) |
| Field of View | 104° |
| Night Vision | IR LED x 20 |
| Zoom | 2x |
| Audio | One-way audio with built-in microphone |
| Waterproof | IP67 |
| Wireless | 2.4GHz |
| Power Supply | DC 9V, 0.8A |
| Operation Temperature | -20°C to 55°C |
| Real-time Live View | Yes (via APP) |
Download
The unique difference that distinguishes Apollo M1 from other brands is its “Smart Solar Power Station”. This is not your traditional solar power battery, Apollo M1 solar power is designed with a waveguide Mono-Si Solar Panel innovation that collects wide spectral of diffused sunlight light in all weather condition. This means Apollo M1 solar panel is 2.5 times more efficient than the typical solar panel with up to 40% electricity conversion.
Besides that, you get an all-in-one package with Apollo M1, no additional purchase of accessories such as panel antenna, 4G wifi router, etc. Everything included for you in one package at no additional cost.
The market price of a standard wireless crane camera system starts from USD 10,000. To get a standard crane camera system with only one camera and standard feature you have to pay more than USD 10,000.
Compared to other brands with less functionality and specification, Apollo M1 has an absolute competitive advantage in terms of pricing, design, functionality, and technology features. Hence, price-wise and specs-wise, Apollo M1 is such a value buy. One investment, for year-long benefits such as an increased in productivity and work safety which will save you a lot more money and time in the future.
Apollo M1 comes with waterproof luggage that includes 2 wide-angle cameras, 1 touch screen monitor, 1 smart solar power station, and other accessories.
Apollo M1 can operate up to 70 hours straight (Total 7-14 days, Daily working 8 hours). The smart solar power station is equipped with dual battery function; sustainable solar battery and rechargeable li-ion battery that can switch automatically based on light intensity (day & night). Store back-up power of 30+ hours from the solar battery without any charging required. Worry-free from power outage!
Apollo M1 is compatible with all types of crane, such as tower crane, mobile crane, luffing crane, hammerhead crane, etc.
