Why Choose Scarlet Ex-Proof Intrinsically Safe Anemometers

Explosion-Proof

World’s first ATEX approved intrinsically safe wireless anemometer state-of-art wind monitoring solutions in Zone 1 & Zone 2 hazardous environments.

Cable Free

Transmission distance up to 1,300 meters (4,000 ft) by using state-of-art and market-proven wireless modules. Avoid possible risks from machine operation.

Easy Installation

User-friendly interface. Three different alarm set points integrating into your system. Free smartphone Apps with external devices connectivity.

Reliability

IP 67 rugged waterproof wind sensors durable to all kinds harsh environments. 3-year sensor battery life and one-year warranty with free replacement.

How Intrinsically Safe Anemometer Work?

To use Scarlet’s WS-E10/WSD-E11 safely in your work environment according to OSHA and other explosion protection regulations, you must follow the noted instructions while using the device.

The sensor of the wireless anemometer can be installed in Zone 1/2 hazardous area. However, the receiver (monitor) can only be used in a non-hazardous safe zone. It is recommended to have approved intrinsic safety barriers placed between the hazardous area and non-hazardous area while controlling equipment.

Trustable Reliability - Any Time, Any Where.

ATEX certified Intrinsically Safe
ATEX Certified EX II 2 G EX ib IIB T4
Intrinsically Safe for Zone 1 & 2 Hazardous Sites

We adopt innovative low-power-consumption wireless technology on wind sensors. The 3-year long battery life reduces your maintenance cost significantly. Moreover, Scarlet’s WS-E10/WSD-E11 with its water-proof and Explosion-proof features make it capable to hold up to all extreme environment.

Our device is certified as EX II 2 G EX ib IIB T4 by ATEX approvals for use in hazardous areas zone 1 and zone 2. The user can monitor the wind situation in safe distance from the non-hazardous area to eliminate any potential danger. Together, we make you and your worksite safe and sound.

Easy Operation & Installation

ATEX&IECExapprovedintrinsicallysafewirelessanemometer,EasyInstallation,IP67ruggedwaterproof,canbeinstalledinhazardousareaZone1/2,Wirelesstransmissiondistanceupto1,300meters,Built-in90dBaudiblealarm,Replaceablewindcupsandvanes

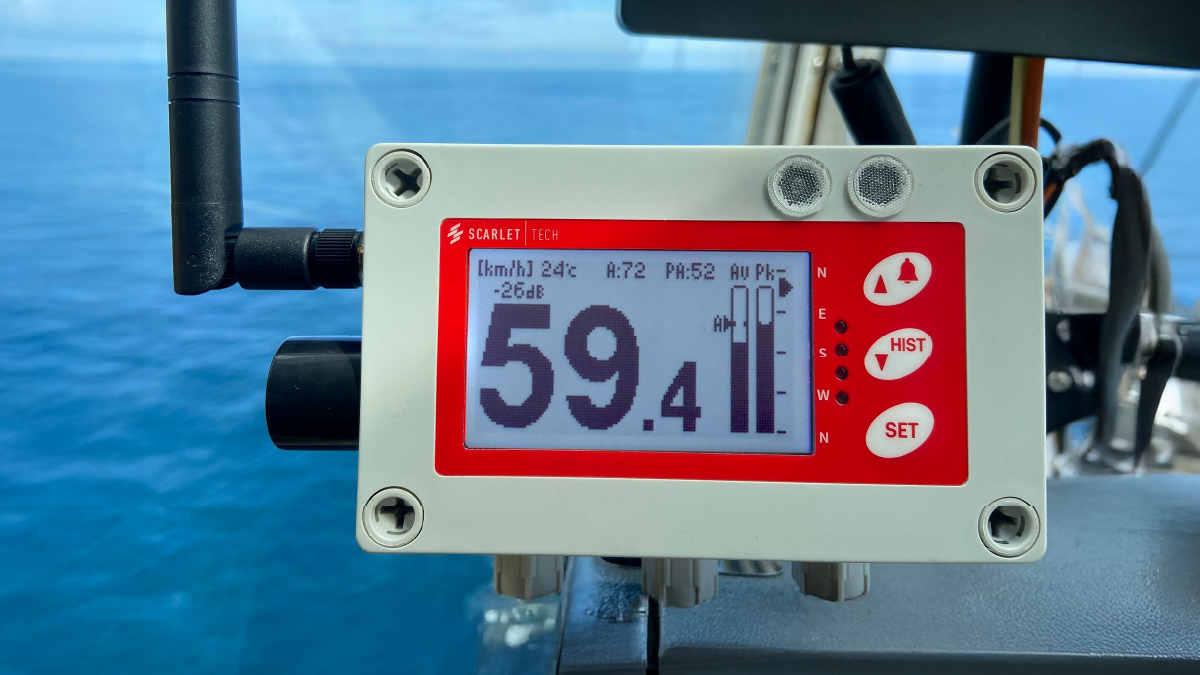

Wireless transmission distance up to 400 meters/ 1,300 meters (XB model). Easy-to-use solution for wind site evaluation in remote supervision. With three different active warning & alarm set points, users can customize their own alarm system.

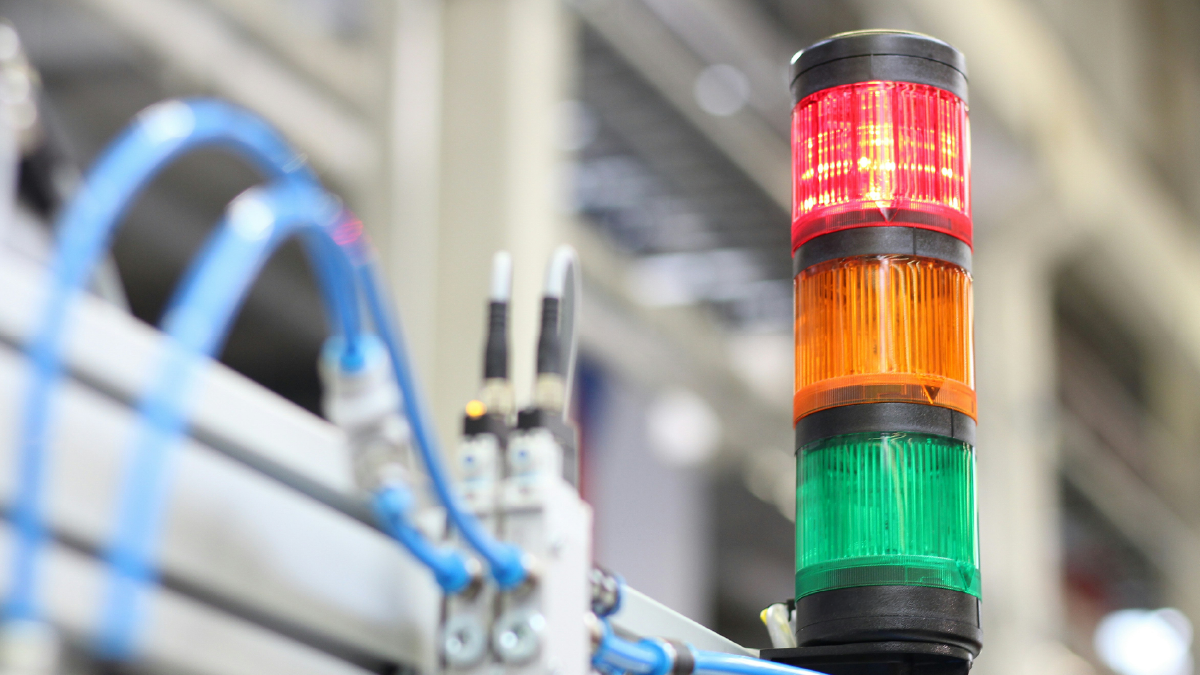

Scarlet explosion-proof wireless anemometer allows external devices connectivity. Based on the pre-set values, the receiver can trigger local alarms such as LED lights and buzzer, or trigger external indication via 4 built-in relays when measured wind speeds exceeding the threshold. Scarlet aims to let you manage your workplace not only safe but smart.

GET A QUOTE

How Intrinsically Safe Anemometer Work?

To use Scarlet’s WS-E10/WSD-E11 safely in your work environment according to OSHA and other explosion protection regulations, you must follow the noted instructions while using the device.

The sensor of the wireless anemometer can be installed in Zone 1/2 hazardous area. However, the receiver (monitor) can only be used in a non-hazardous safe zone. It is recommended to have approved intrinsic safety barriers placed between the hazardous area and non-hazardous area while controlling equipment.

Trustable Reliability - Any Time, Any Where.

ATEX Certified EX II 2 G EX ib IIB T4
Intrinsically Safe for Zone 1 & 2 Hazardous Sites

We adopt innovative low-power-consumption wireless technology on wind sensors. The 3-year long battery life reduces your maintenance cost significantly. Moreover, Scarlet’s WS-E10/WSD-E11 with its water-proof and Explosion-proof features make it capable to hold up to all extreme environment.

Our device is certified as EX II 2 G EX ib IIB T4 by ATEX approvals for use in hazardous areas zone 1 and zone 2. The user can monitor the wind situation in safe distance from the non-hazardous area to eliminate any potential danger. Together, we make you and your worksite safe and sound.

ATEX certified Intrinsically Safe
ATEX&IECExapprovedintrinsicallysafewirelessanemometer,EasyInstallation,IP67ruggedwaterproof,canbeinstalledinhazardousareaZone1/2,Wirelesstransmissiondistanceupto1,300meters,Built-in90dBaudiblealarm,Replaceablewindcupsandvanes

Easy Operation & Installation

Wireless transmission distance up to 400 meters/ 1,300 meters (XB model). Easy-to-use solution for wind site evaluation in remote supervision. With three different active warning & alarm set points, users can customize their own alarm system.

Scarlet explosion-proof wireless anemometer allows external devices connectivity. Based on the pre-set values, the receiver can trigger local alarms such as LED lights and buzzer, or trigger external indication via 4 built-in relays when measured wind speeds exceeding the threshold. Scarlet aims to let you manage your workplace not only safe but smart.

GET A QUOTE

Specification-Ex-Proof Intrinsically Safe Anemometers

  • Long range transmission distance up to 400 meters/ 1,300 meters (XB model)
  • Built-in 90dB audible alarm
  • Up to 3 years sensor battery life
  • Backlit graphical LCD with large digits
  • Bluetooth 4.0 Smartphone Connectivity with Free iOS & Android App
  • 4 programmable alarm relay outputs & 4-20mA outputs
  • Active Warning with LED lights
  • Replaceable wind cups and vanes
Item Description
ATEX Explosion-proof LevelEX II 2 G EX ib IIB T4
Wind Speed Measurement Range0.3…50 m/s
Wind Speed Accuracy+/- 3 %
Wind Speed Resolution0.1 m/s
Units of Measurementm/s, km/h, knots, mph, Bf
Wind Direction Measurement Range0-360° ,no blank sector, contactless magnetic measuring principle
Temperature Measurement Range-30…55°C
Temperature Resolution0.5 °C
Dimensions - Sensorheight 210 mm; diameter(cup to cup) 120 mm
Dimensions - Receiver150 x 80 x 55 mm
Operating voltage12...24 V DC
Antenna input (receiver)50 ohm, SMA connector
Data transmissionevery 2 seconds
Measurement interval2 seconds
Transmission frequency868 MHz/ +10 dBm(standard); 908 MHz, 922 MHz (customizable)
Sensor battery3.6V AA Lithium battery, Type: LS14500EX, Brand: SAFT
Audible alarm85...90 dB
Relay Contacts Output4 x relays, 2 A / 24 V
4-20 mA Output4 mA=0 m/s, 20 mA=10...50 m/s (programmable)
Bluetooth LEOptional. Range up to 40m
MountingOptional Accessary Self-Leveling Mounting Bracket

The Scarlet Ex-proof anemometers E10/E11 are certified by ATEX mark following the EN 60079-0:2012 A11: 2013 Essential Health and Safety Requirements.

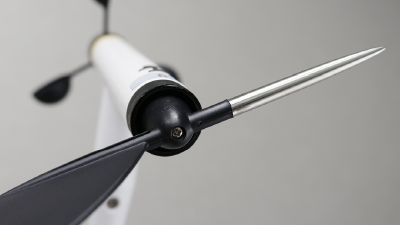

Wind speed accuracy is +/- 3%. We guarantee every wind speed sensors is calibrated and tested before shipment.

The wireless module used on wind speed sensors only requires very low power consumption. The transmission power consumes 20-30 uA in normal condition and 35 mA peak current in every 2 seconds. The standard 3.6V Lithium battery (2400 mAh) can sustain the sensor for 3 years.

The transmission distance can reach as far as 400 / 1,300 (XB model) meters in open space. With the external antenna, the distance can reach up to 2,000 meters. The actual distance depends on the topology & obstacles. According to user experiences, the vertical transmission distance can be 500 meters in height. Harmonic disturbances are possible in theory, but so far we did not receive complaints about this.

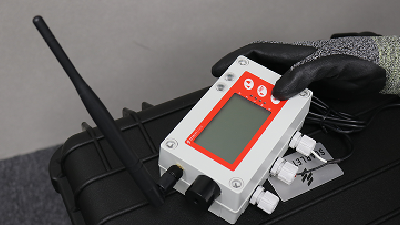

Pairing between sensor & receiver is based on address. The address is labeled on the sensor body. User can set receiver address by setting menus. All WS E10 & WSD E11 were paired and tested before shipping. If the text instruction is still not clear, please visit this YouTube link.

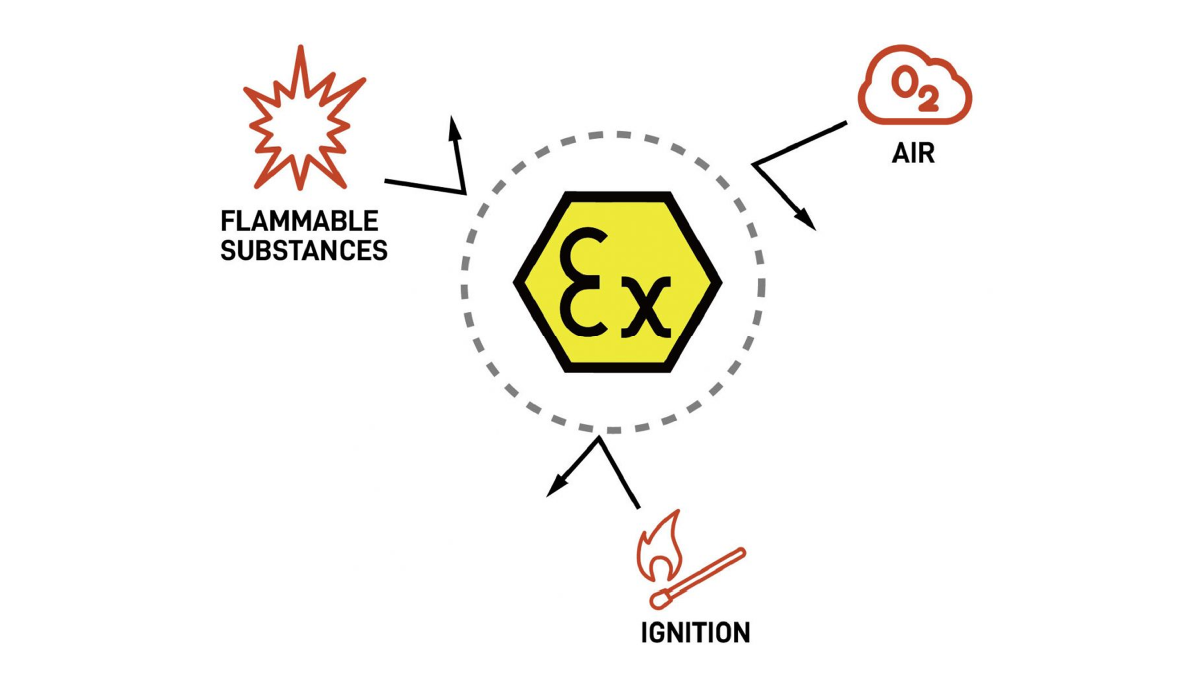

ATEX is an abbreviation for "ATmosphere EXplosible". At the same time, ATEX is the abbreviated name of the European Directive 2014/34/EC concerning the placing on the market of explosion-proof electrical and mechanical equipment, components and protective systems. Intrinsically safe equipment is defined as "equipment and wiring which is incapable of releasing sufficient electrical or thermal energy under normal or abnormal conditions to cause ignition of a specific hazardous atmospheric mixture in its most easily ignited concentration." (ISA-RP12.6) This is achieved by limiting the amount of power available to the electrical equipment in the hazardous area to a level below that which will ignite the gases.

Yes. The warranty period is one year after the date of purchase. During the limited period, any defective product will be replaced or repaired with a comparable product, however, it does not include battery and damages caused by misuse.

Scarlet’s explosion-proof wireless anemometer can be applied on a wide range of areas, such as FPSO, Petroleum refineries, Shipbuilding, Offshore, Onshore, HVAC, Sewage plants, Landfills, and Manufacturing Industry.

WindSmart Mobile App-Ex-Proof Intrinsically Safe Anemometers

FREE APPS AVAILABLE FOR MULTIPLE DEVICES

Available on both iOS (4s+) and Android (4.3+)
Real time speed and temperature graph
Multiple Measurements (m/s, km/h, knots, mph, Bft)
History tab, accessible across all your devices.
Graphical and sound alarms

E10 XB WIND SPEED METER

Intrinsically Safe ATEX approved wind speed sensor powered by 3.6V LS14500EX Battery. Data Transmission rate every two seconds. Replaceable Wind Cups.

E11 XB WIND SPEED & DIRECTION METER

Intrinsically Safe ATEX approved wind speed and direction combined sensor. First of its kind in the world to provide a state-of-art safety option for hazardous environments.

Where does Scarlet Intrinsically Safe Anemometer Apply

Oil & Gas
Mining Industry
Manufacture
Construction

Use Cases of Scarlet Intrinsically Safe Anemometer

Mining Explosion Proof

Underground coal mines, methane mines, rescue staff, ventilation control & monitoring

Offshore Explosion Proof

Chemical plants, refineries, gas stations, oil tankers, pipelines, offshore sites, shipyard, etc.

Hazardous and Explosive Area

Environments where significant quantities of flammable liquids, vapor and combustible dusts could cause fire or explosion.
