HERCULES

The Best Wireless Hookcam &
CRANE IP Camera System For Tower Cranes

The long-range, IoT-based Hercules crane camera is a system for crane safety and construction sites productivity. It provides crane operators and safety officers a direct 2k video feed from anywhere on the cranes and worksites.
Meet the
Brand New
HERCULES

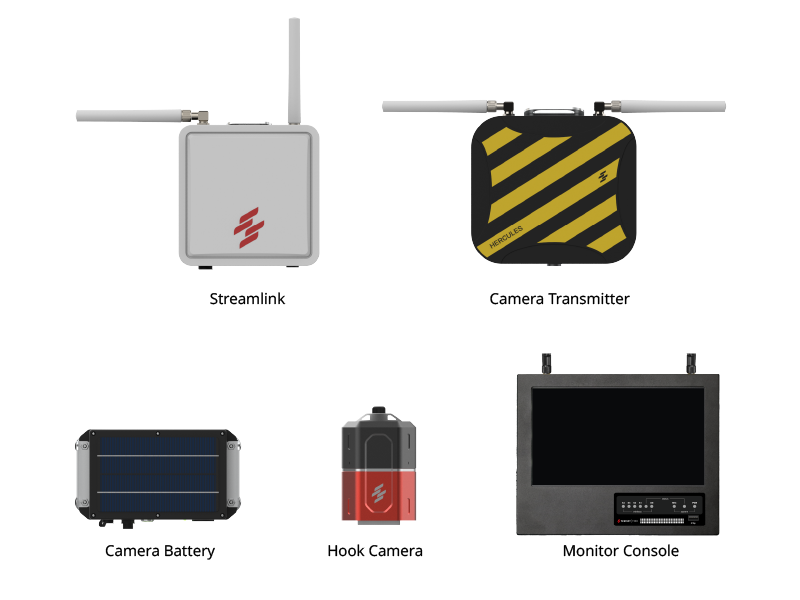

wireless tower crane camera system-Hercules

1.Hook AP

Wi-Fi 5GHz Ultra-long range transmitter

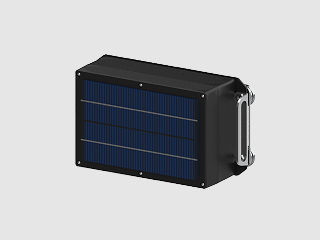

2.Solar Panel Battery

Max 35hr long-lasting power

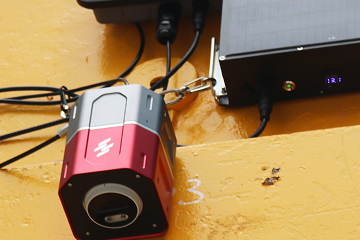

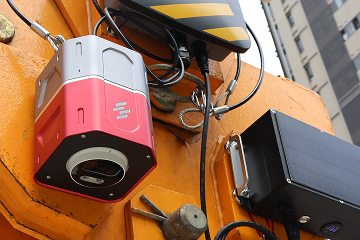

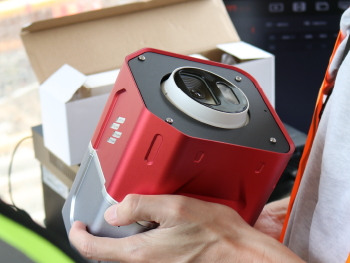

3.Wireless Hook Cam

Ultra-wide 2K Starlight clear view & recording

4.Monitor

Smooth streaming user-friendly Android touch display

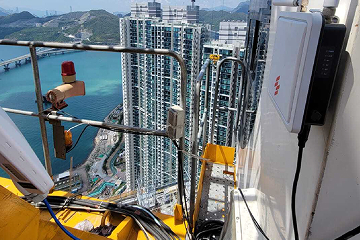

5.StreamLink™

Wi-Fi 5GHz high-speed ultra-long range

6.Cabin AP

Wi-Fi 5GHz Ultra-long range transmitter

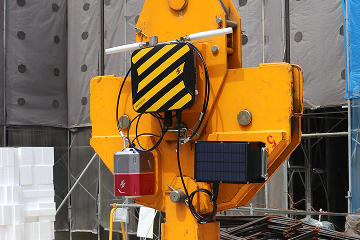

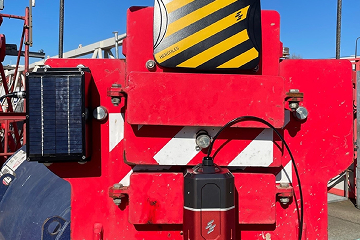

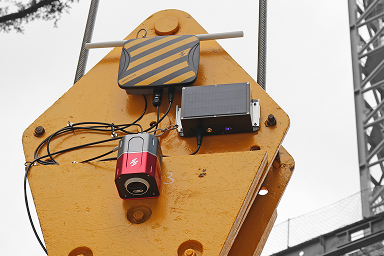

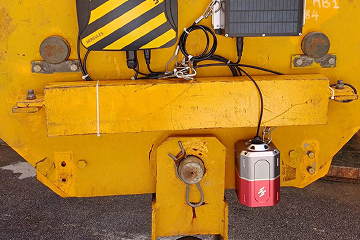

Wireless Hook Camera For Construction Cranes

Hercules is a compact, state-of-the-art wireless crane camera system to provide live monitoring
from multi-angles, video recording and an advanced cloud-connected remote access.

video recording
eliminate blind spots

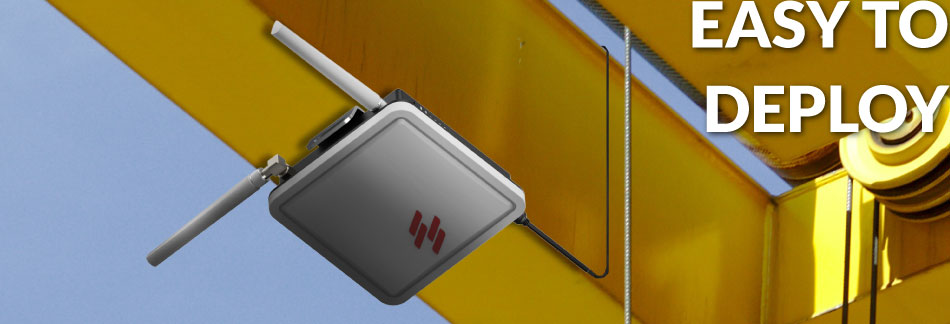

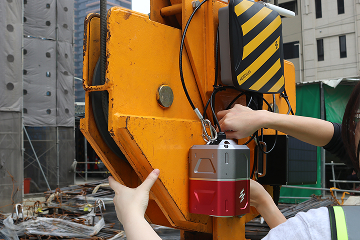

easy to deploy

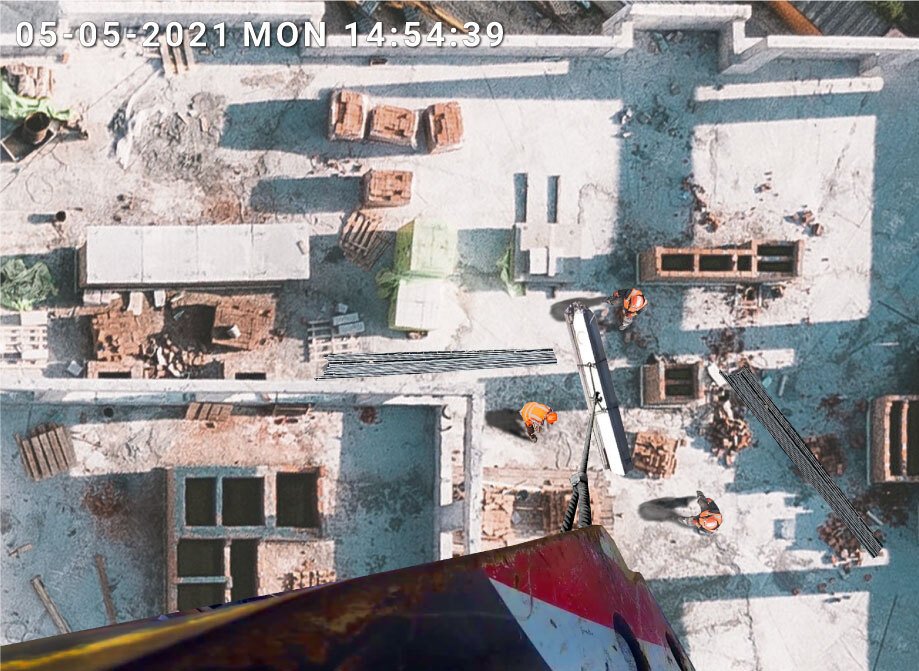

long range live view
enhance efficiency

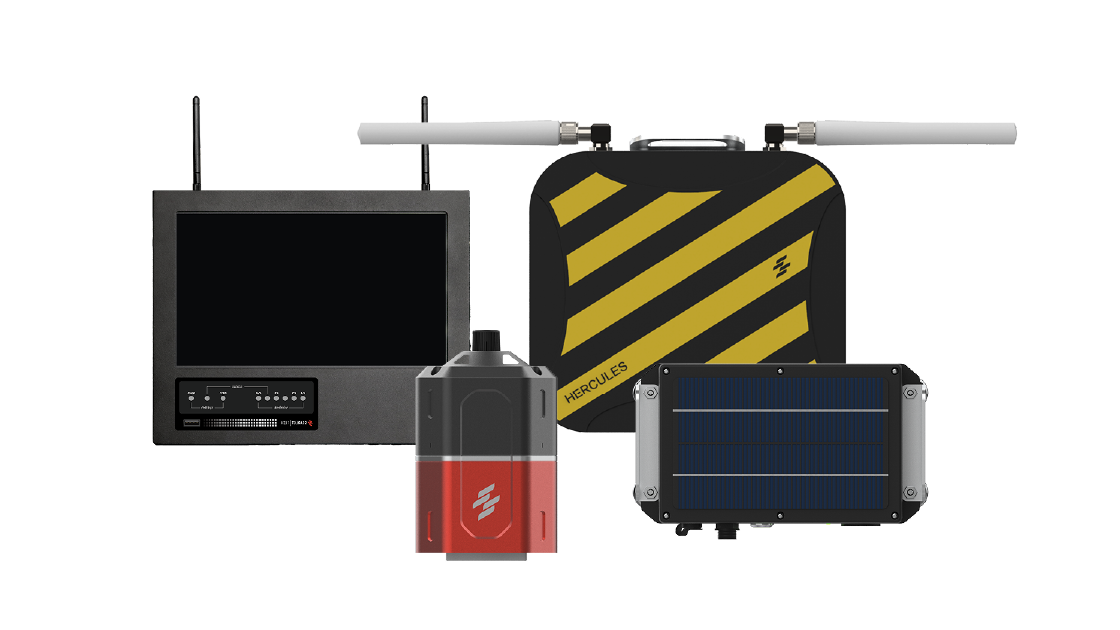

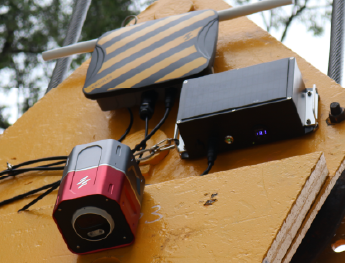

Robust HookCam Components

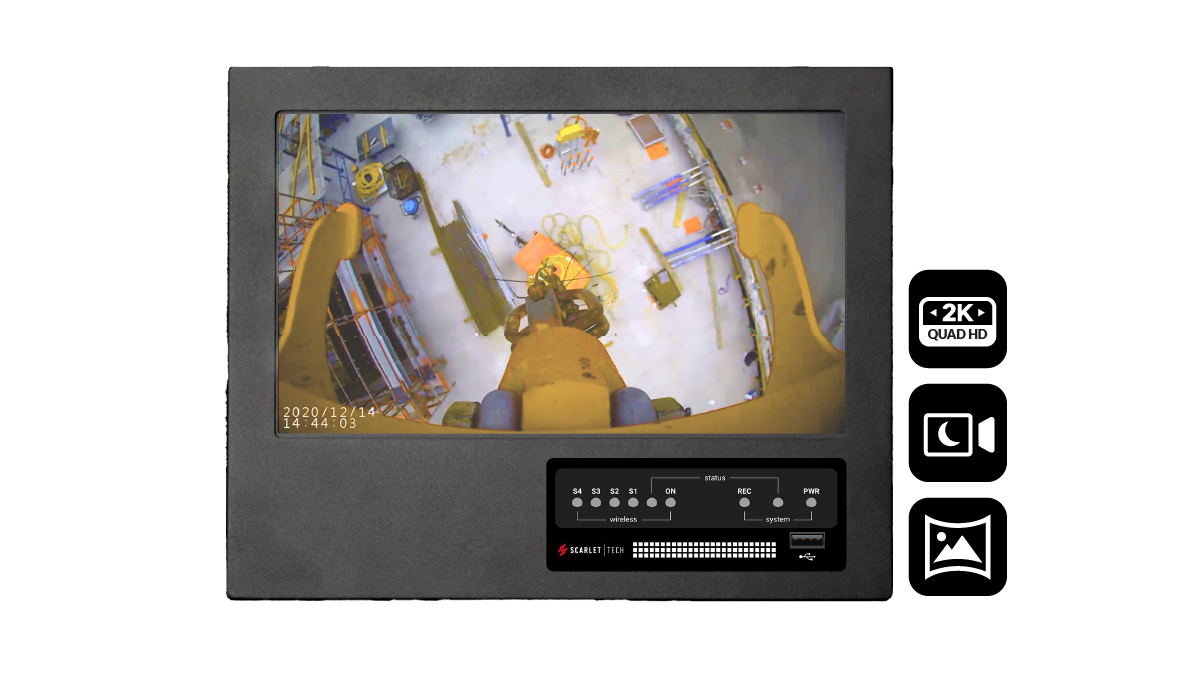

Better Vision,Better Decision

Low latency, real-time response live video streaming by using 802.11 a/c Wifi 5G technology. Zero in on the action with 2K ultra clear HD audio-visual feeds. Wide viewing angle for clear site overview and excellent details.
Better Vision
Better Decision

Low latency, real-time response live video streaming by using 802.11 a/c Wifi 5G technology. Zero in on the action with 2K ultra clear HD audio-visual feeds. Wide viewing angle for clear site overview and excellent details.

24/7 Continuous Recording
with Built-in SD Card

Built-in standard 128GB SD card recording capacity inside crane cameras. Never miss any important incidents. Reduced liability and preserve evidence without site disruption.

wireless crane camera
wireless crane camera
24/7 continuous Recording with built-in sd card

Built-in standard 128GB SD card recording capacity inside crane cameras. Never miss any important incidents. Reduced liability and preserve evidence without site disruption.

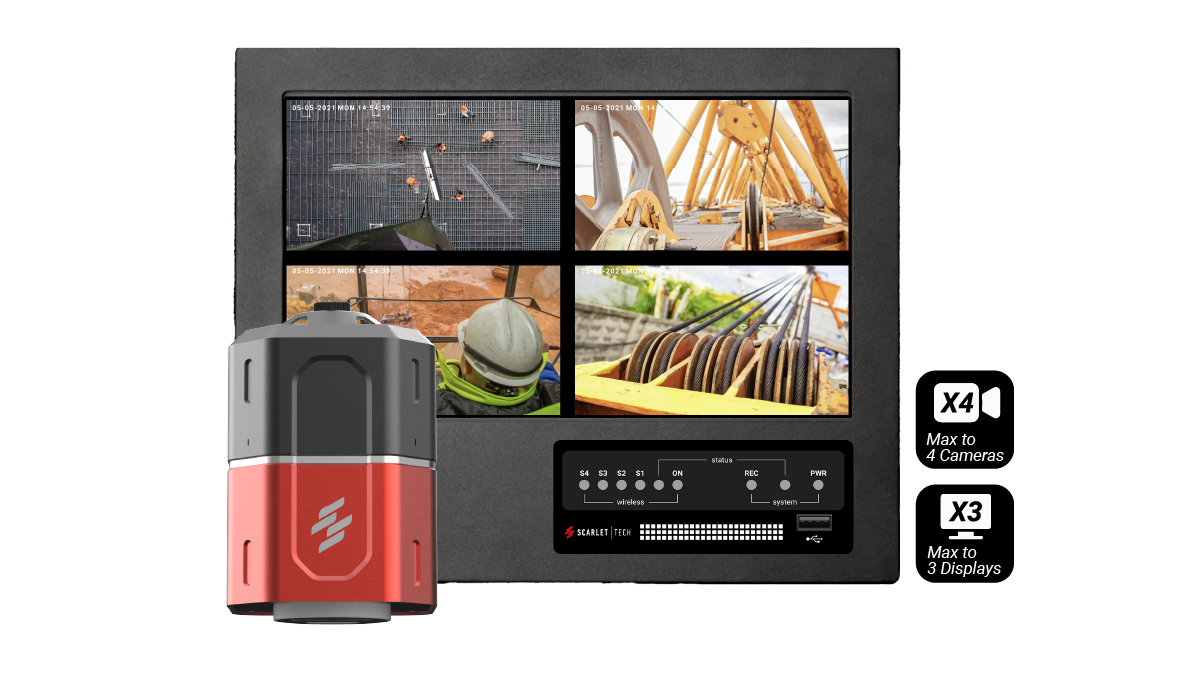

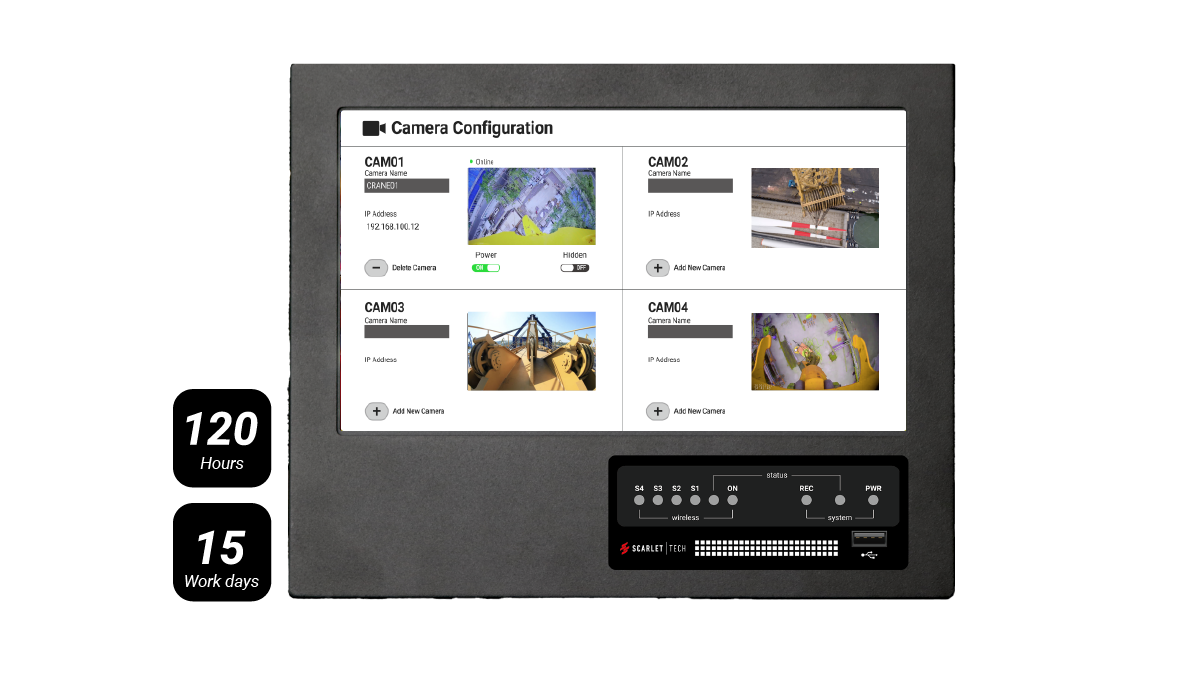

Connecting Maximum
4 Cameras & 3 Different Displays

Get the full picture of the load and critical surroundings from different angles.
Streaming 4 channels video simultaneously on the multi-view monitor.

Connecting Maximum 4 Cameras
& 3 Different Displays

Get the full picture of the load and critical surroundings from different angles.
Streaming 4 channels video simultaneously on the multi-view monitor.

wireless crane camera system

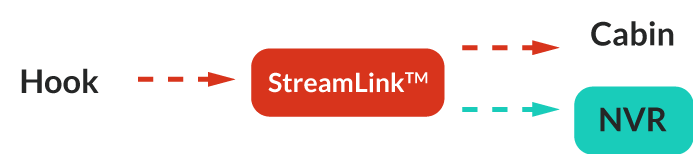

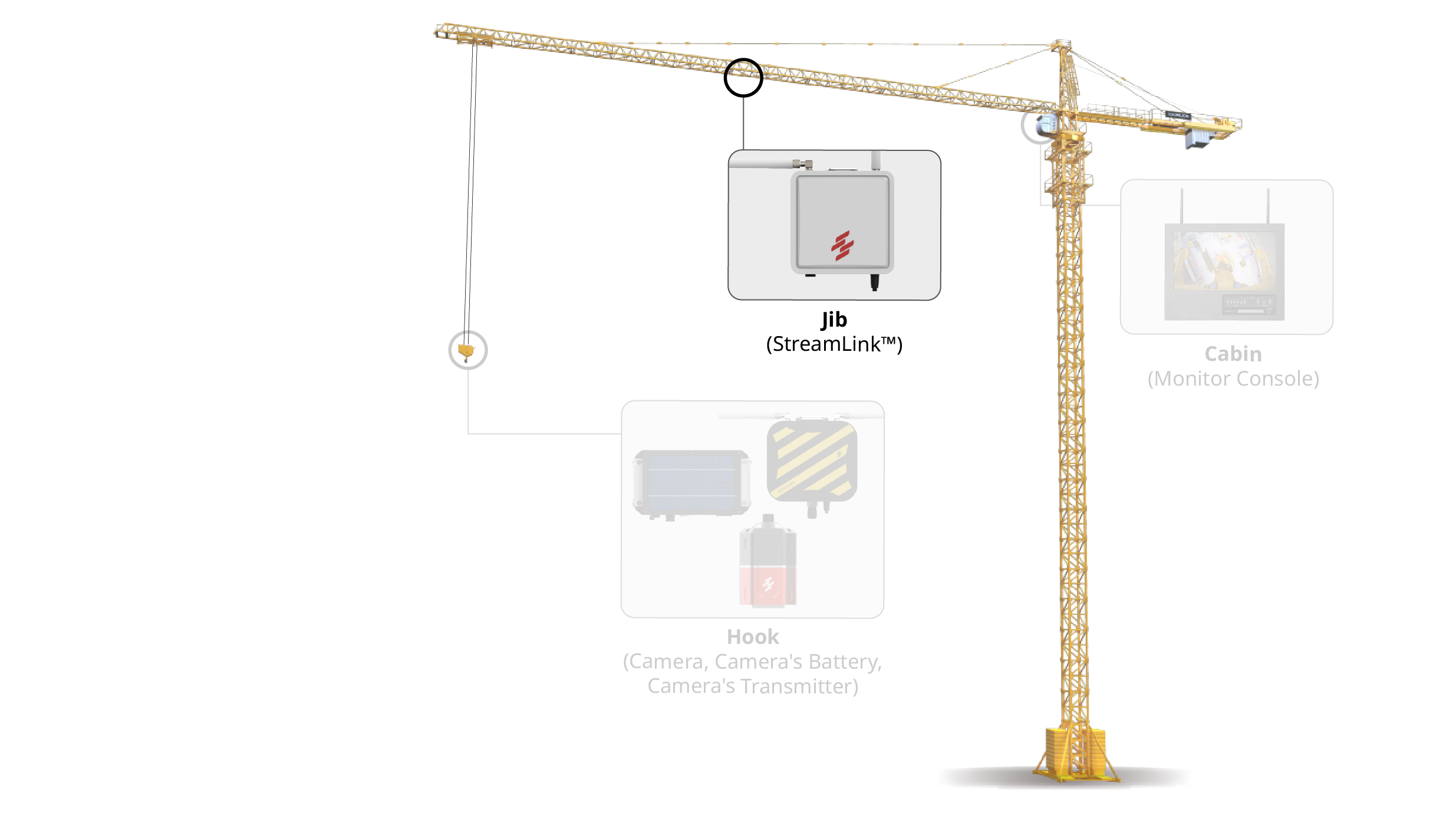

Hercules & Streamlink Wireless Transmission Framework

wireless crane camera system

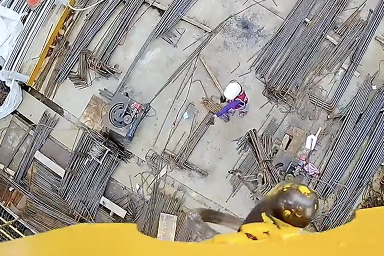

Eliminate All Lifting Blind Spots
No More Obstacles

Scarlet Ultra-Long 802.11 a/c high-speed StreamLink provides smooth, seamless live streamings without compromising any details.

wireless crane camera system
Eliminate All Lifting Blind Spots
No More Obstacles

Scarlet Ultra-Long 802.11 a/c high-speed StreamLink provides smooth, seamless live streamings without compromising any details.

The Solution To Enhance Safety &
Efficiency for Crane Operations

Low Visibility Environment
(Tunnels, Mines, Underground)
Optimizing crane operators visibility in underground-level and tunnel works by starlight camera lens and Scarlet StreamLink technology.
Eliminate Blind Spots
Around Buildings
Ultra-long wireless communication. Avoid blind spots collision in confined space regardless of the type of buildings and cranes.

Enhancing Clear Night-Time Crane Operations
and Load View Safety

The first starlight full color night vision video enhancements
and smart defogging function on crane cameras. Captures all worksite action in ultra-sharp focus in any weather.
crane camera system-starlightcrane camera system-starlight

Starlight Color Night Vision

crane camera system-defugcrane camera system-defug

Smart Defog Enhancement

Smart, Remote, Cloud-based
Crane Safety Management

Add the Scarlet NVR system to access instant liveview and video back-up 24/7 remotely.
Staying alert & manage multiple crane operations anytime, anywhere.

Smart, Remote, Cloud-based
Crane Safety Management

Add the Scarlet NVR system to access instant liveview and video back-up 24/7 remotely.
Staying alert & manage multiple crane operations anytime, anywhere.

wireless tower crane camera system

Best Wireless Cameras for Construction Crane in 2022

`
HERCULESB CamH CamO Cam
Camera System2K QHD 3MPFHD 1080pFHD 1080pHD 720p
Wireless rangeHigh-Speed Wi-Fi 5GHz (Maximun 1,000 M)5G (Maximun 975 M)2.4 GHz (Maximun 300 M)(Maximun 300 M)
MonitorMax 3 Android touch monitors connection111
Power supplySolar Battery: 35 hrs12 hrs10 hrs< 20hrs
Price$$$$$$$$$$$$
Get a Quote
BUY NOW

Upgrade Your Safety With Powerful Add-Ons

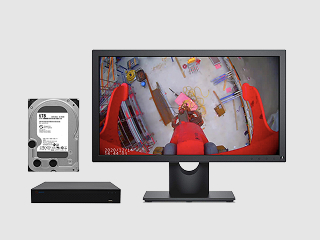

NVR Remote Access
Onsite backup recording. Supporting remote live view

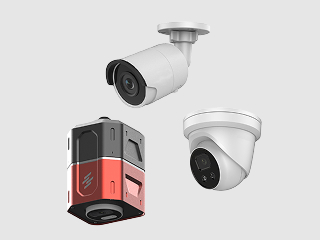

Vast Camera Compatibility
Customizable camera system
ONVIF Conformant
Integrate with your existing security network seamlessly

Specifications – The Best Crane IP Camera System

ItemDescription
Dimension180 x 122 x 122 mm
Weight2.5kg
Resolution & Pixels2K QHD 2304 x 1296, 3MPHD 1280 x 720, 1MP
Image Sensor1/2.8" CMOS
Electronic Shutter1/25s - 1/10,000s
Compression StandardH.265 / H.264 / MJPEG
Angle of View110° Ultra-wide angle
Night VisionStarlight Color Night Vision
WaterproofIP67
DefogDigital Defog
MICYes
Video Storage96 hours (2K)
API for IntegrationONVIF
Power SupplyDC 12V2A / POE
InstallationMounting by magnets

ItemDescription
Dimension265 x 265 x 82 mm
Weight2.2kg
Wireless TechnologyWi-Fi 5GHz (802.11 ac a/n)
Antenna
Omnidirectional 5GHz x2
Power SupplyDC 12V
WaterproofIP67
InstallationMounting by Magnets

ItemDescription
Dimension272 x 146 x 91 mm
Weight5kg
Battery TypeMolicel 26700 LiFePO4
Battery Volume28000mAh
Working Hours35+ hours
LED IndicatorPower status
Power InputDC 14.3~14.6V2A (Charging by Power Charger)
Power Output12V4A (Max)
WaterproofIP67
InstallationMounting by Magnets

ItemDescription
Dimension230 x 230 x 93 mm
Weight1.1kg
Wireless TechnologyWi-Fi 5GHz (802.11 ac a/n)
Antenna
Omnidirectional 5GHz x2
Power SupplyDC 24V
WaterproofIP67
Operation Temperature-10℃~60℃
InstallationMounting by magnets

ItemDescription
Dimension269 x 239 x 82 mm
Weight2.6kg
Wireless TechnologyWi-Fi 5GHz (802.11 ac a/n)
Wi-Fi 2.4GHz (802.11 b/g/n)
I/O portEthernet port x3 (for POE cameras)
Power SupplyDC 52V 1.25 A
InstallationMounting by magnets
AntennaOmnidirectional 5GHz x2
Omnidirectional 2.4GHz x1
Operation Temperature
-10℃~60℃

ItemDescription
Dimension247 x 193 x 40 mm (including case & holder)
Weight700g
Display10” IPS Touch Screen
OSAndroid 10
Resolution1280 x 800
Wireless ConnectivityWi-Fi 2.4GHz (802.11 b/g/n)
CPUOcta-core Processor
Memory2G RAM + 32G ROM
Power SupplyDC 5V2A
InstallationMounting by bracket with clamp
