Why Choose Wind Smart

WindSmart Bluetooth WInd Meter

Bluetooth

Wireless Bluetooth 4.0 technology connects wind sensor with smartphones and tablets.

Free App

Free customized mobile Apps based on clients’ applications.

WIndSmart Bluetooth Anemometer with Low Battery Consumption

Long Battery Life

Low-power consumption supports battery life up to 4 years reduces the maintenance cost.

Scarlet Wind Smart Bluetooth Anemometer

wireless anemomete-Wind Smart Bluetooth Anemometer

Scarlet Wind Smart wind meter turns your smartphone into a high-tech meteorological tool. The professional cup anemometer takes the real-time data of current, average, maximum wind speed, temperature, and wind direction (optional). The sensor can operate with multiple smart devices at the same time. The user may set an audible alarm based on the wind speed value. Every unit has been through wind tunnel calibration to ensure precision.

Scarlet Wind Smart Bluetooth Anemometer

Scarlet Wind Smart wind meter turns your smartphone into a high-tech meteorological tool. The professional cup anemometer takes the real-time data of current, average, maximum wind speed, temperature, and wind direction (optional). The sensor can operate with multiple smart devices at the same time. The user may set an audible alarm based on the wind speed value. Every unit has been through wind tunnel calibration to ensure precision.

More Info
wireless anemomete-Wind Smart Bluetooth Anemometer

Measure Wind Speed and Direction

wireless anemomete-Measure Wind Speed and Direction
For higher precision of the measurements, we develop a wind direction sensor with the vane that aligns with the wind. The sensor allows you to measure wind direction separately and provides 360 degrees of measurement without any blank sector. The contactless magnetic measuring principle gives you precisely reading of direction.

Long Battery Life – Wind Smart wireless Anemometer

wireless anemomete-Long Battery Life

We use innovative low-power consumption wireless technology on wind speed sensors. The battery power consumption is only 20-30 uA in normal condition and 35 mA peak current during data transmission. 3.6V Lithium battery with 2400 mAh capacity can run the sensor for 4 years.

4-year long battery life reduces the maintenance cost significantly. Low battery indicator on the display monitor will show up when battery capacity is lowered than 10%.

WindSmart AppStore
wireless anemomete-Measure Wind Speed and Direction

Measure Wind Speed and Direction

For higher precision of the measurements, we develop a wind direction sensor with the vane that aligns with the wind. The sensor allows you to measure wind direction separately and provides 360 degrees of measurement without any blank sector. The contactless magnetic measuring principle gives you precisely reading of direction.

Long Battery Life – Wind Smart wireless Anemometer

We use innovative low-power-consumption wireless technology on wind speed sensors. The battery power consumption is only 20-30 uA in normal condition and 35 mA peak current during data transmission. 3.6V Lithium battery with 2400 mAh capacity can run the sensor for 4 years.

4-year long battery life reduces the maintenance cost significantly. The low battery indicator on the display monitor will show up when battery capacity is lowered than 10%.

wireless anemomete-Long Battery Life
WindSmart AppStore
wireless anemomete-Wind Smart

Data

Refresh every 2 seconds
Displays graphs on mobile application.

Distance

Range up to 30m
Sensors mount on a pipe with 20 mm diameter

Outstanding Features

Wind tunnel calibrated sensors with precision
Stainless steel ball bearing and replaceable cups

Buy now

Specification – Wind Smart wireless Anemometer

  • Customized mobile Apps based on clients’ applications including offshore, construction and other industrial fields
  • Available on both iOS (iphone 4s or newer) and Android (4.3 or newer)
  • Real time speed and temperature graph
  • Unit of measure can be chosen (m/s, km/h, knots, mph, Bft)
  • Live map, showing measurements from other users
  • History tab, accessible across all your devices
  • Graphical and sound alarms
  • subjective ambient temperature dependent on wind speed
  • sound alarm at exceeded wind speed
Item Description
Wind Speed Measurement Range0.6...50 m/s
Wind Speed Accuracy+/- 3 %
Wind Speed Resolution0.1 m/s
Units of Measurementm/s, km/h, knots, mph, Bf
Dimensions - Sensorheight 210 mm; diameter cup to cup 120 mm
Data transmissionevery 2 seconds
Bearings2 x precision stainless steel ball bearing
Transmission frequencyBluetooth 4.0 (Android 4.3 or newer; iPhone 4s, 5, 5s, 6)
Battery - sensor1 x 3.6 V AA Lithium battery

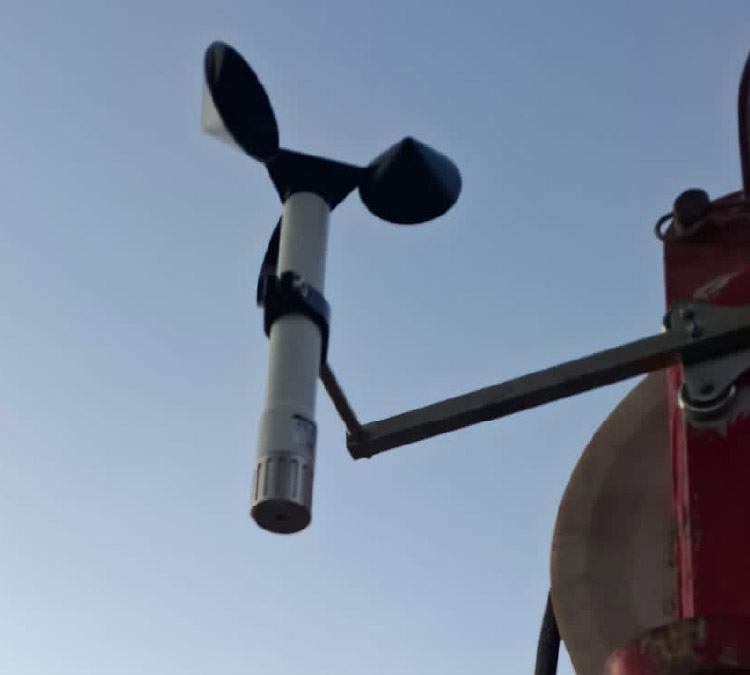

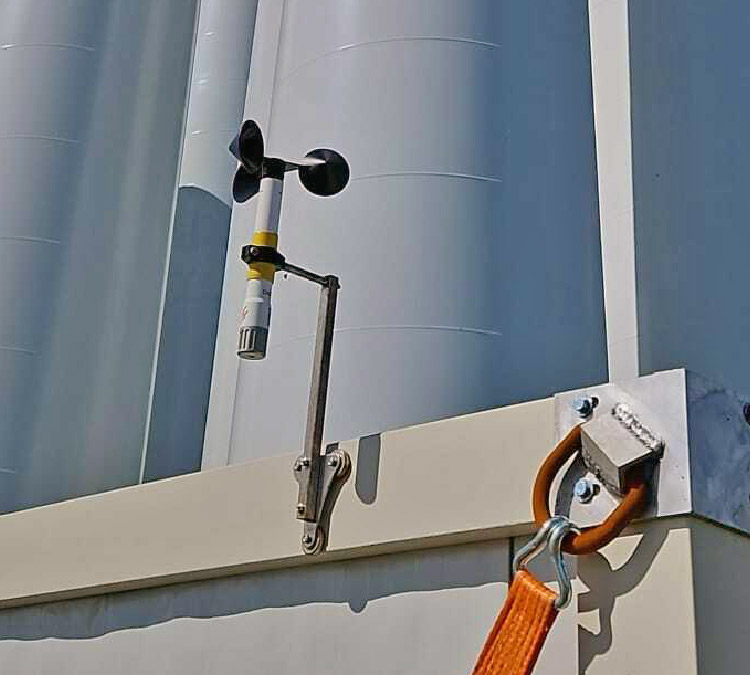

Mountingthe sensor mounts on a pipe with ø 20 mm diameter

Where does Scarlet Wireless Anemometer Apply

Agriculture

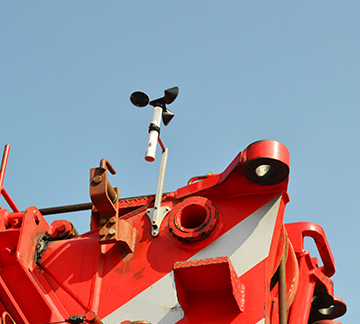

Construction
Marine
Chemical Plant
Office Tower
Offshore
