WINDPRO

Advanced Wind Monitoring & Control Systems for Industrial Use

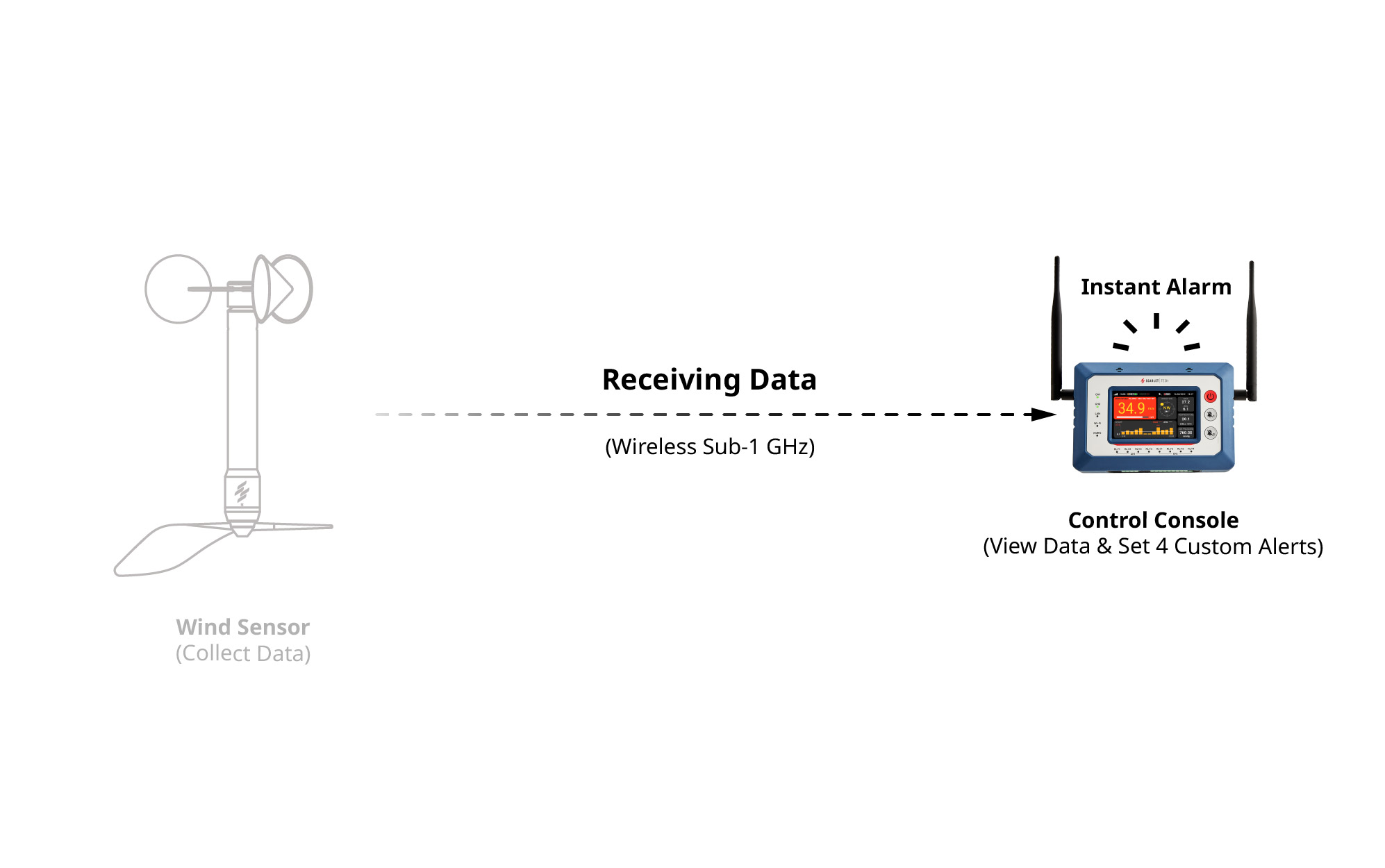

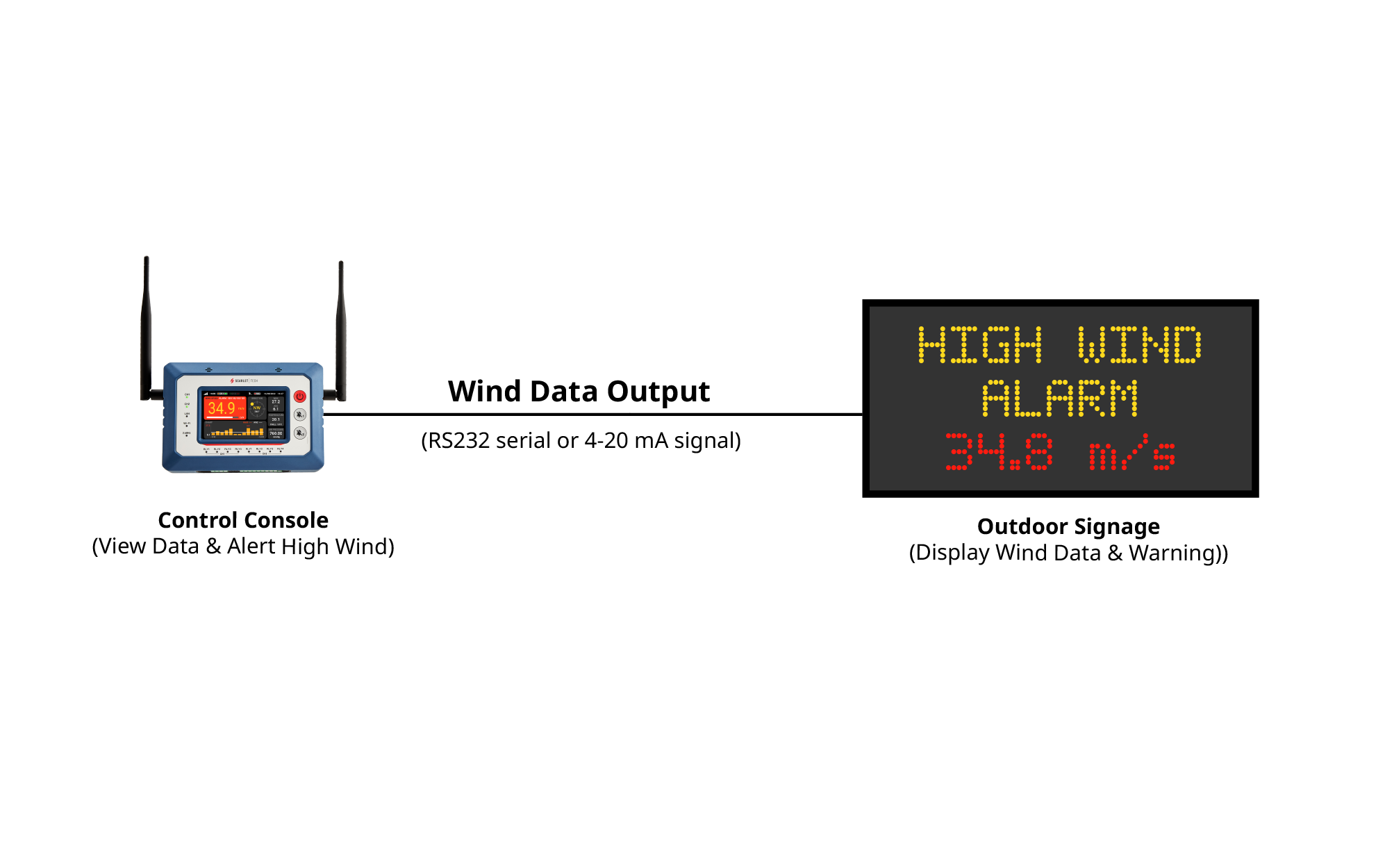

WindPro offers precise wind speed and direction monitoring at up to 1,000m wireless range. Designed for easy integration into existing systems with 4-20mA analog output and programmable contact relays and more. View real-time data effortlessly on its LCD screen, your PC, outdoor signage, or through Bluetooth mobile app.

GET A QUOTE

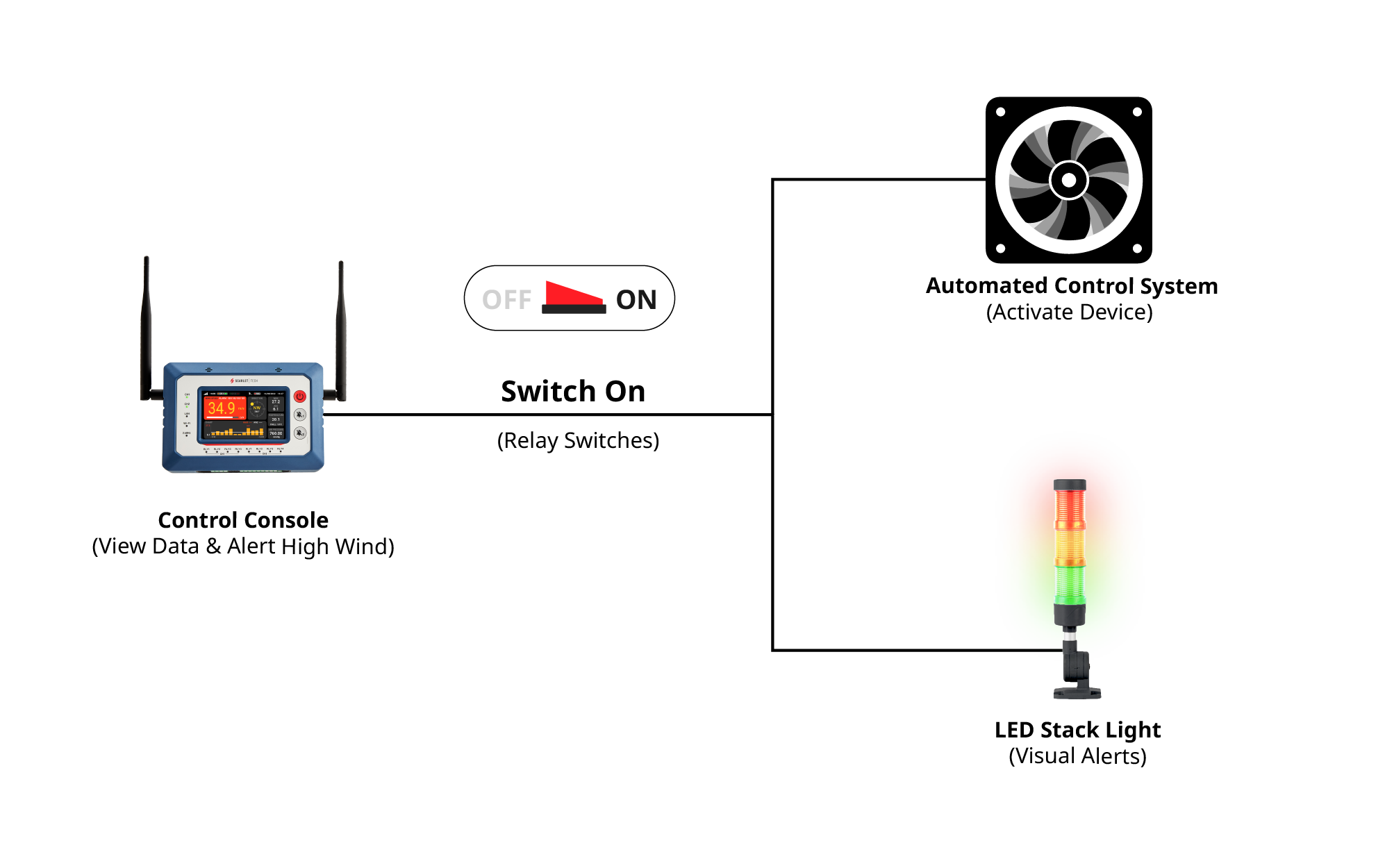

Develop an Automated Control
System by Wind Speeds & Directions

WindPro simplifies automation by setting 4-level wind thresholds with relay switches. This feature enables automatic activation or deactivation, streamlining tasks and conserving energy effortlessly.

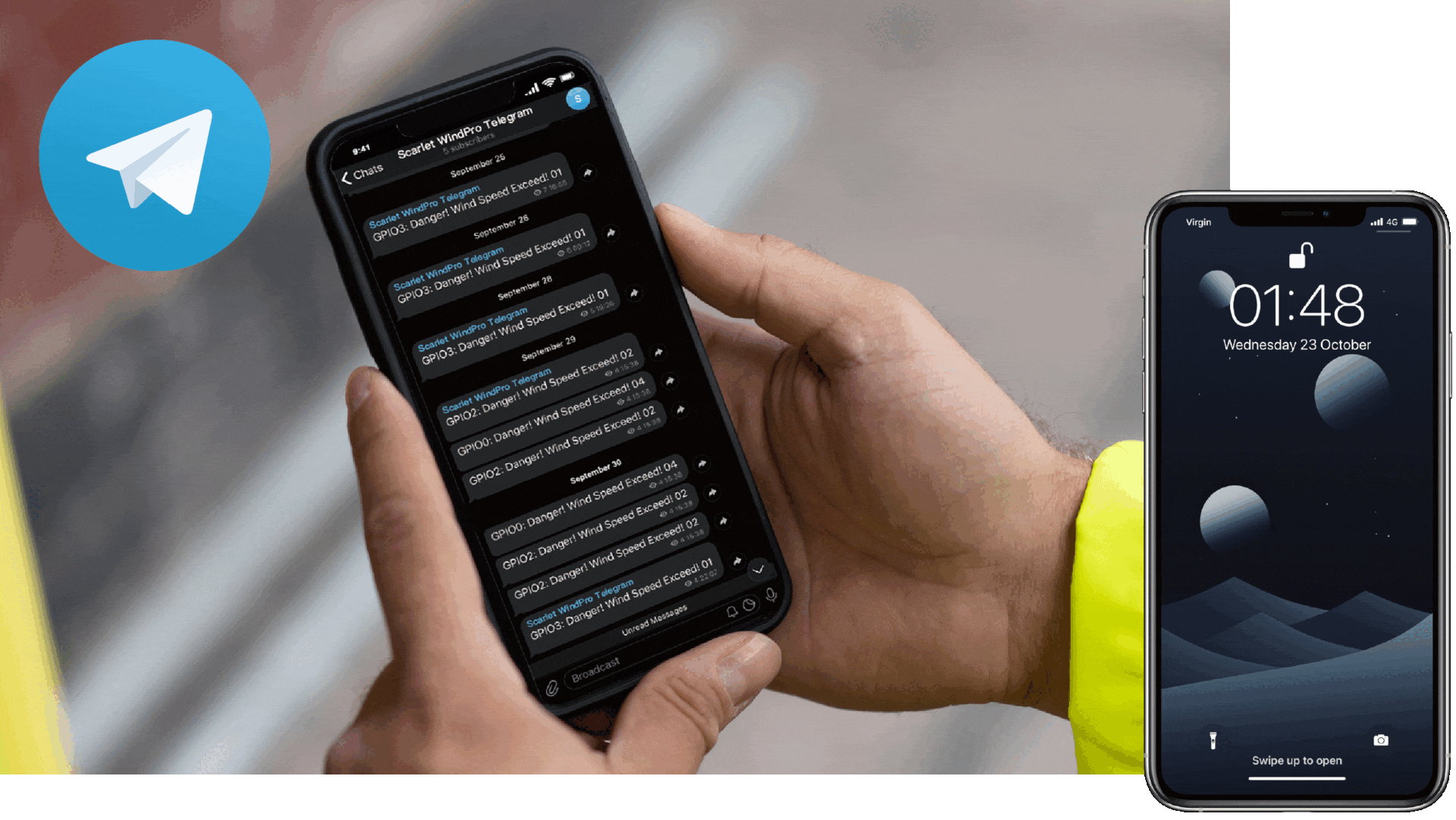

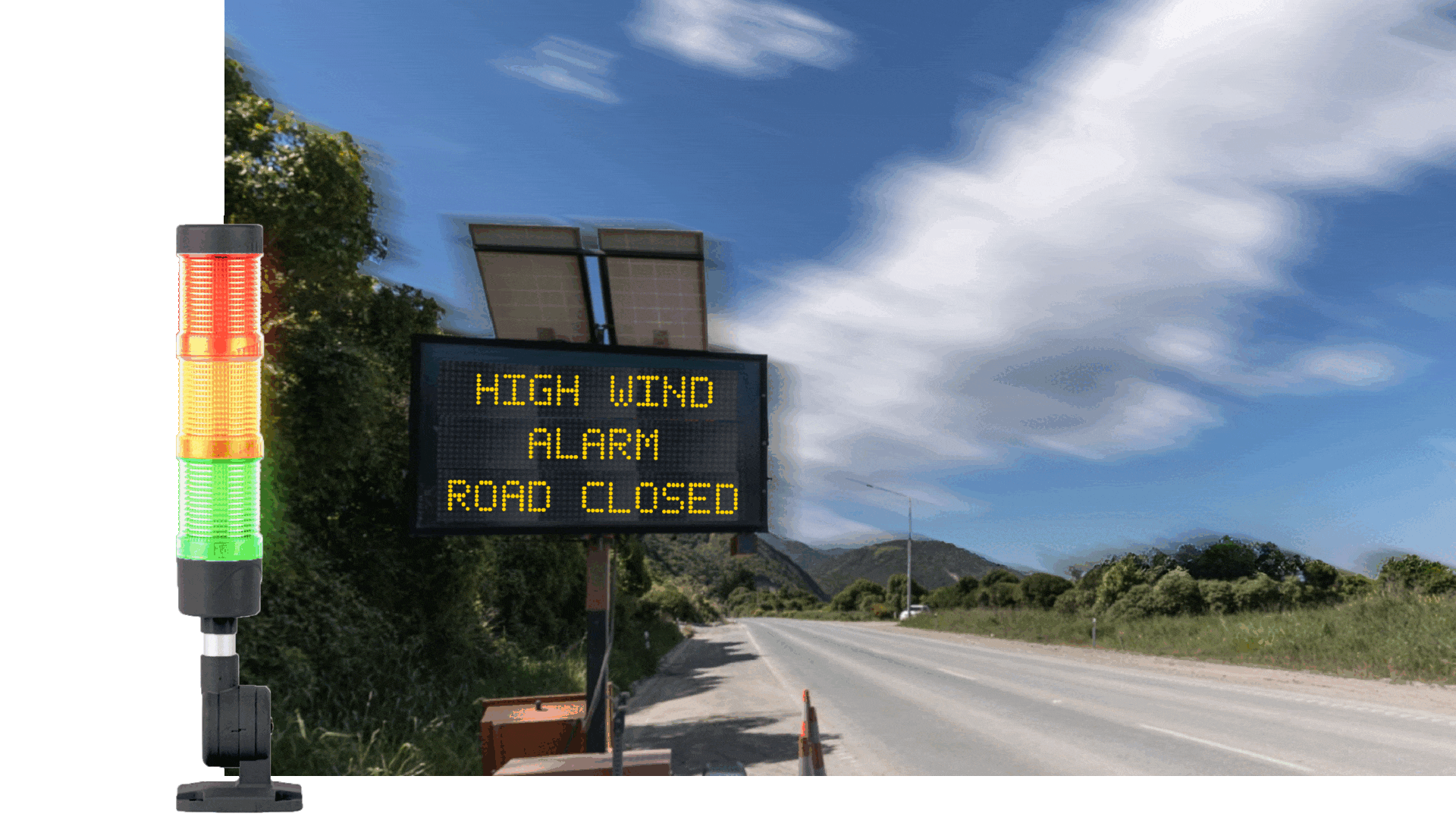

Create Instant High Wind Alerts on Telegram App

WindPro allows customized wind alerts sent to your mobile via the Telegram app using contact relays. Stay updated in real-time for swift decisions and ensure safety.

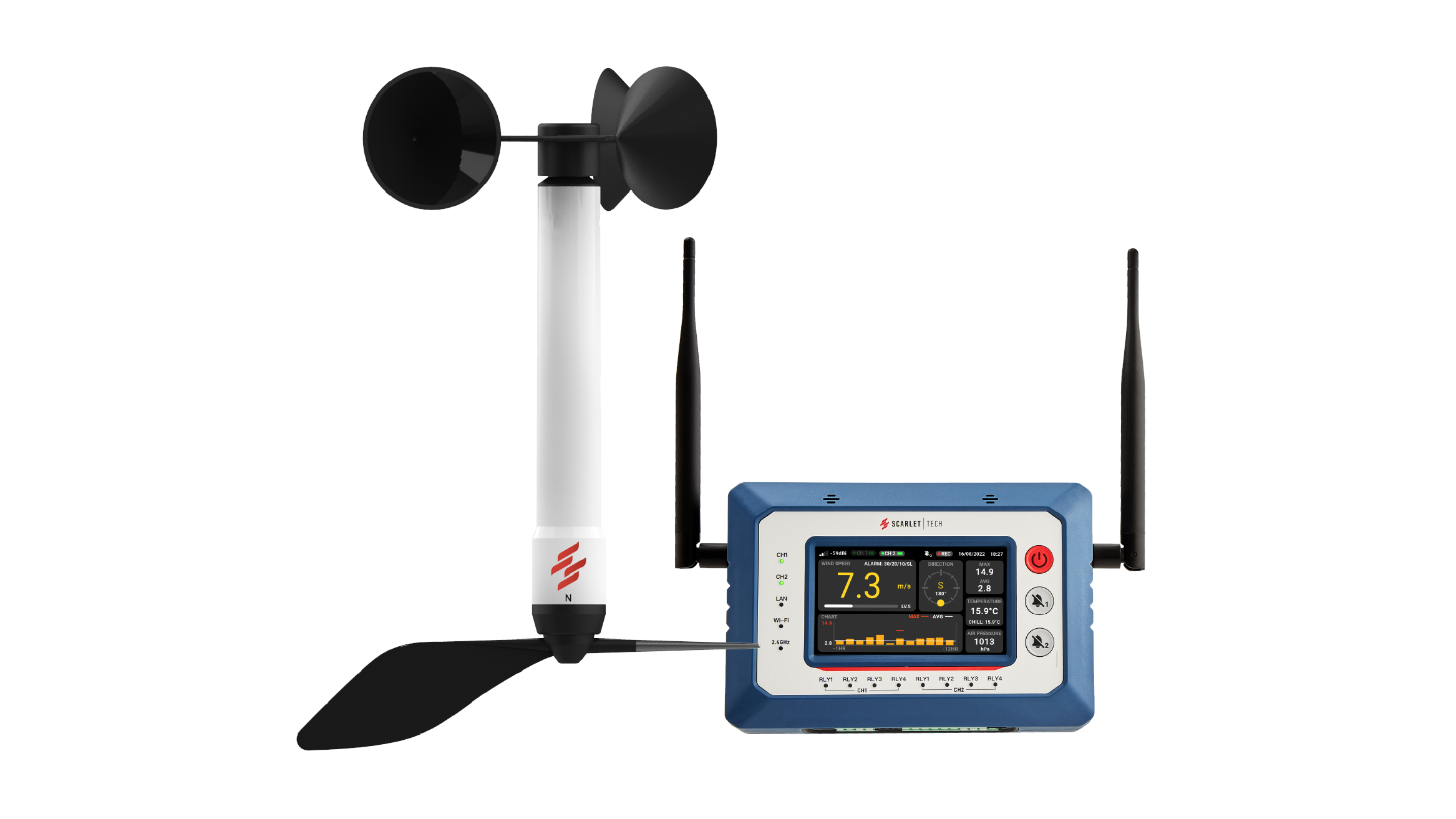

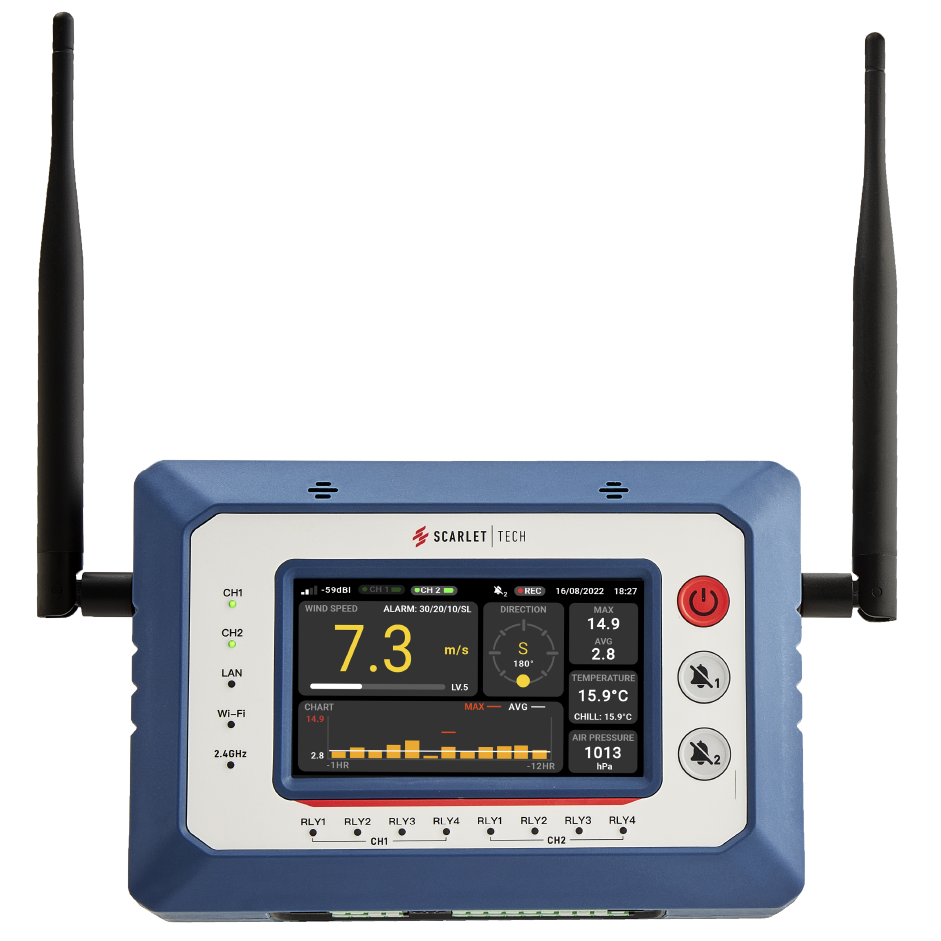

WindPro
Wind Sensor Industrial Control System

Measure wind data at max 1,000m ultra-long wireless range.
Configurable alerts at 4 wind thresholds on each sensor.
IP67 waterproof rated & robust for industrial installation.
Connect up to 2 different wind sensors simultaneously.

Measure wind data at max 1,000m range
Configurable alerts at 4 thresholds/sensor
Connect up to 2 different wind sensors
IP67 waterproof & robust design

Wind Speed (0-50 m/s)

Wind Direction

Wind Chill Index

3 Years Battery Life

Beaufort Scale

Air Temperature

Air Pressure

IP67 Housing

1,000m Wireless Range

2 Sensors Support

24V DC Power Supply

Various IIoT Integration

4 Alarms & Relay Switches

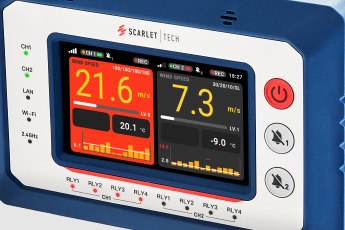

4.3 Full-color Touchscreen

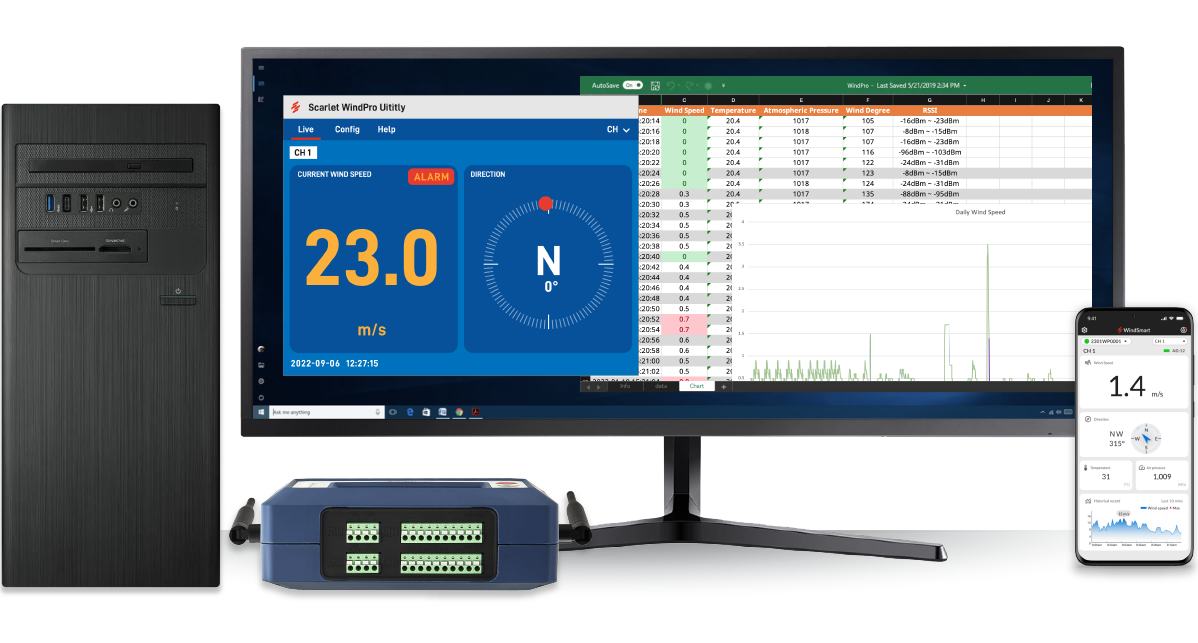

Real-Time Wind Readings Across Platforms

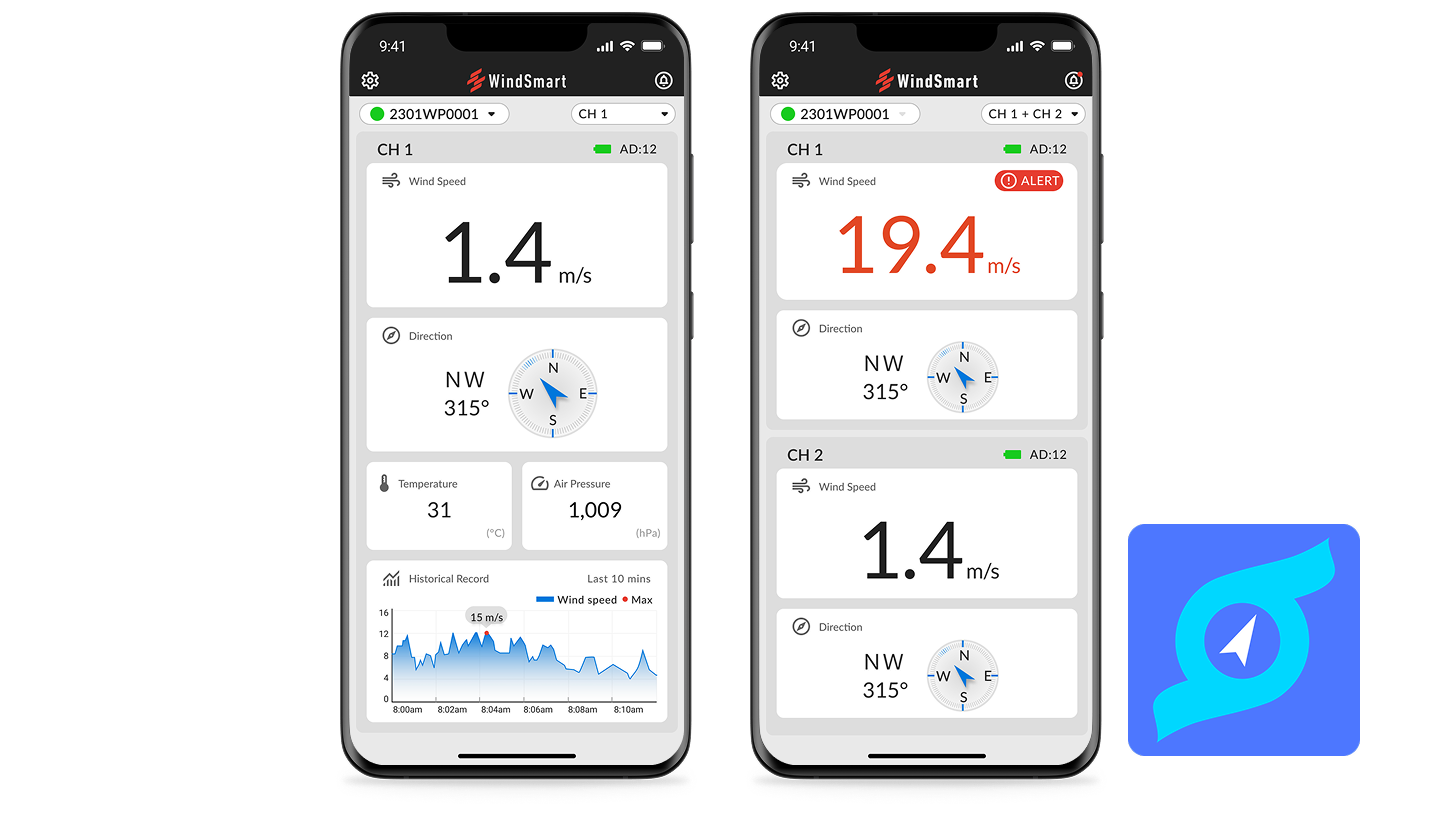

WindPro delivers real-time wind data to your PC with the RS-232 port and mobile devices via Bluetooth broadcasting on the WindSmart app. Scarlet also offers an integrable protocol that allows users to feed WindPro data into their own systems, such as SCADA or PLC.

WindPro delivers real-time wind data to your PC with the RS-232 port and mobile devices via Bluetooth broadcasting on the WindSmart app. Scarlet also offers an integrable protocol for SCADA or PLC.

WindPro RS232

data display utility
(Windows OS)

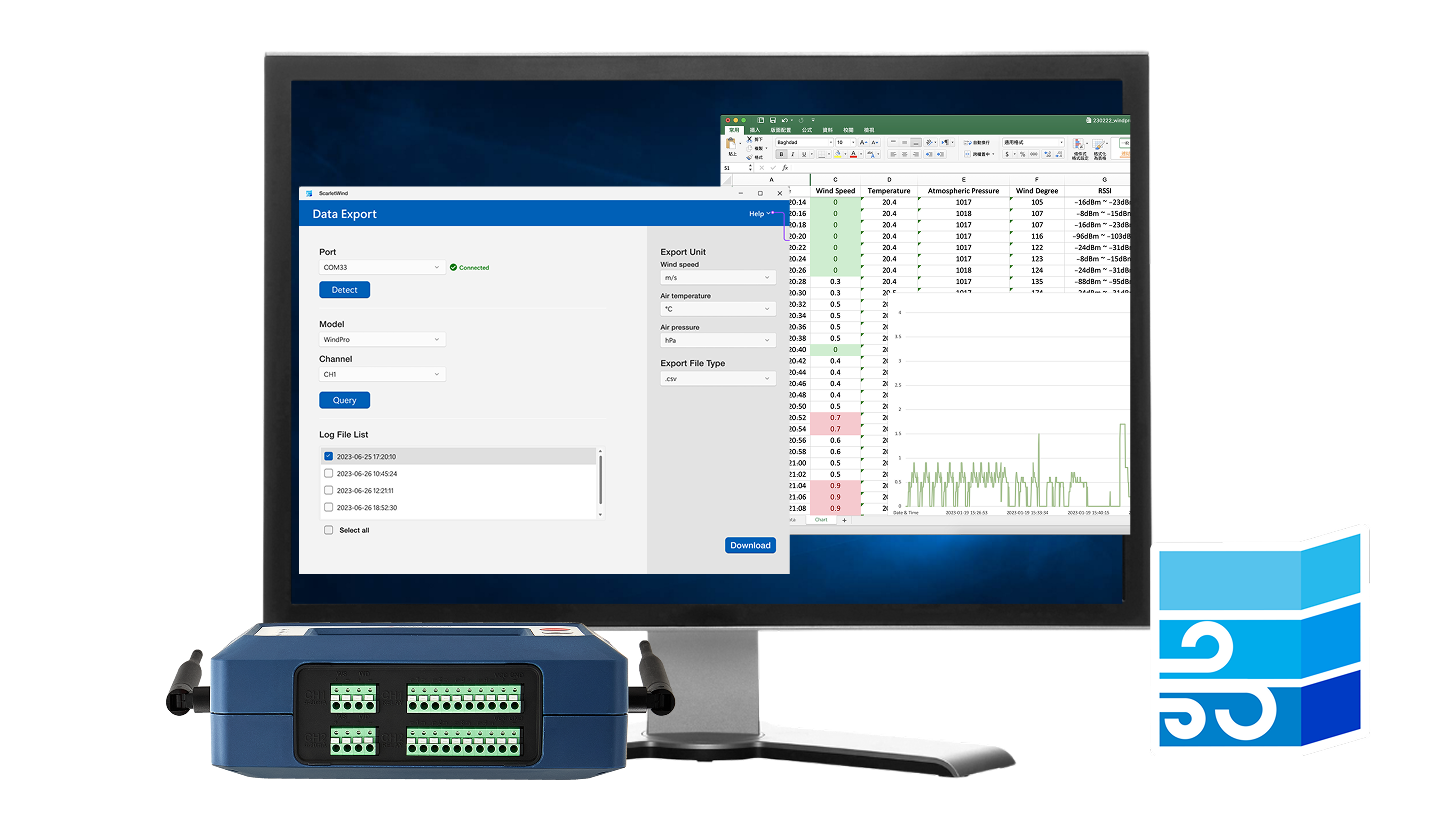

ScarletWind

- Log export utility
(Windows OS)

WindSmart

- Wind data viewer
(Android)

WindSmart

- Wind data viewer
(iOS)

WindPro Video Tutorials for Easy Setup

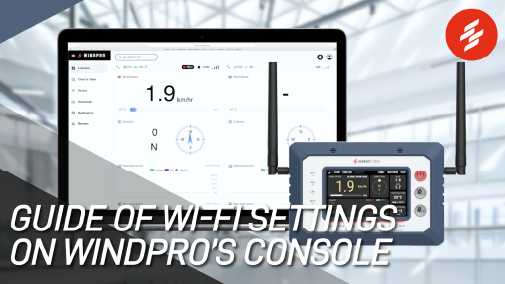

Guide of Wi-Fi Settings on WindPro’s Concole

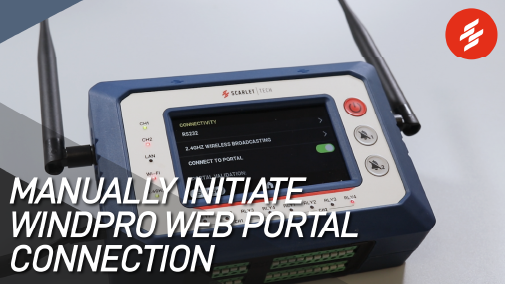

Manually Initiate WindPro Web Portal Connection

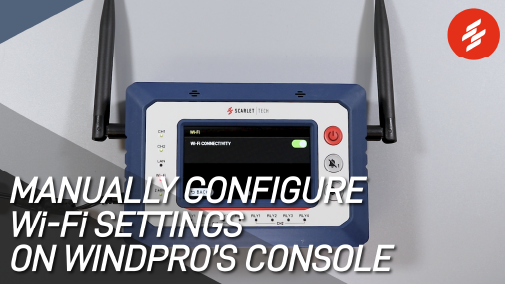

Manually Configure Wi-Fi Settings on WindPro’s Console

How to Connect Quad LED Stack Light with WindPro’s Concole

View All Videos

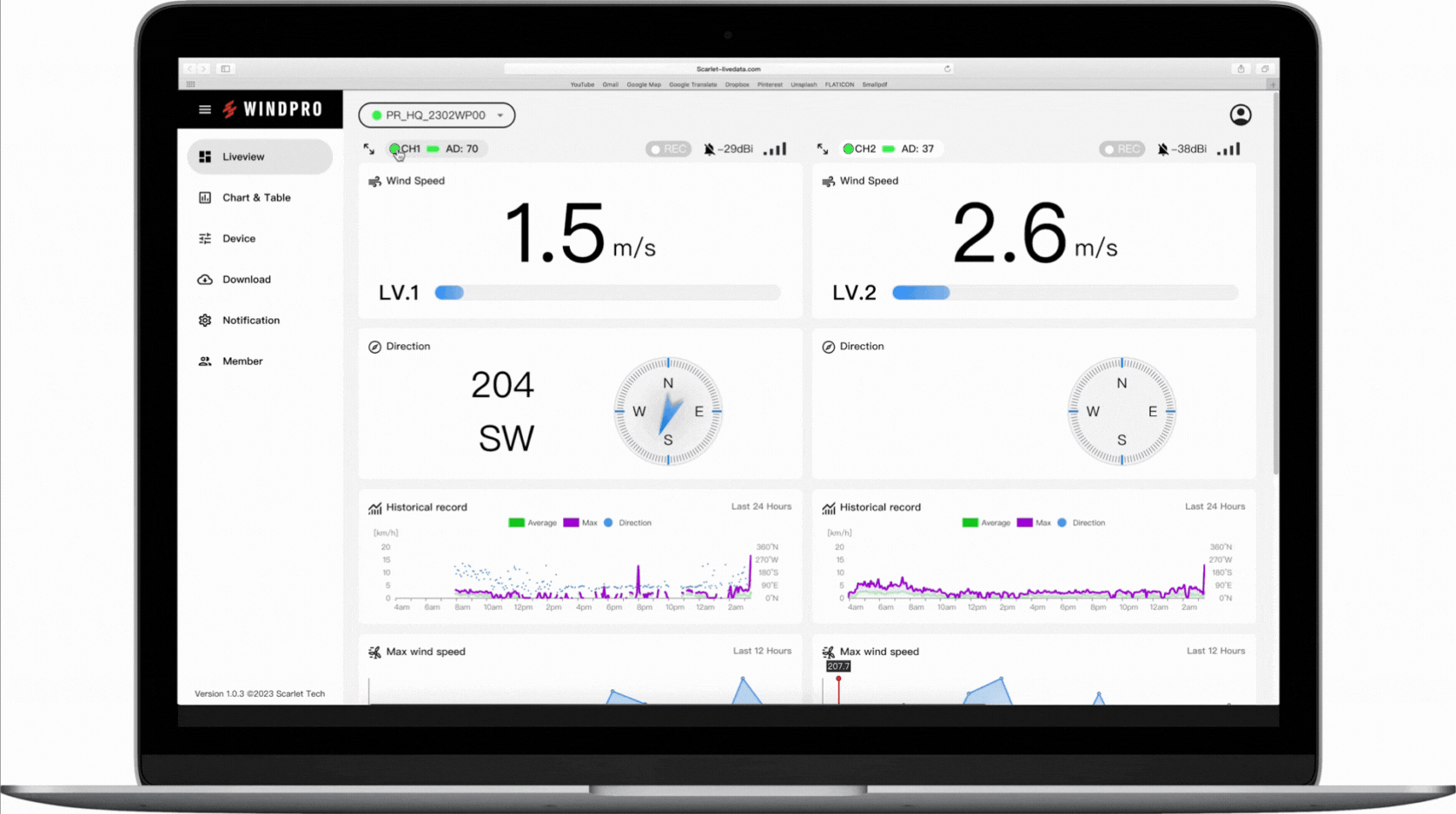

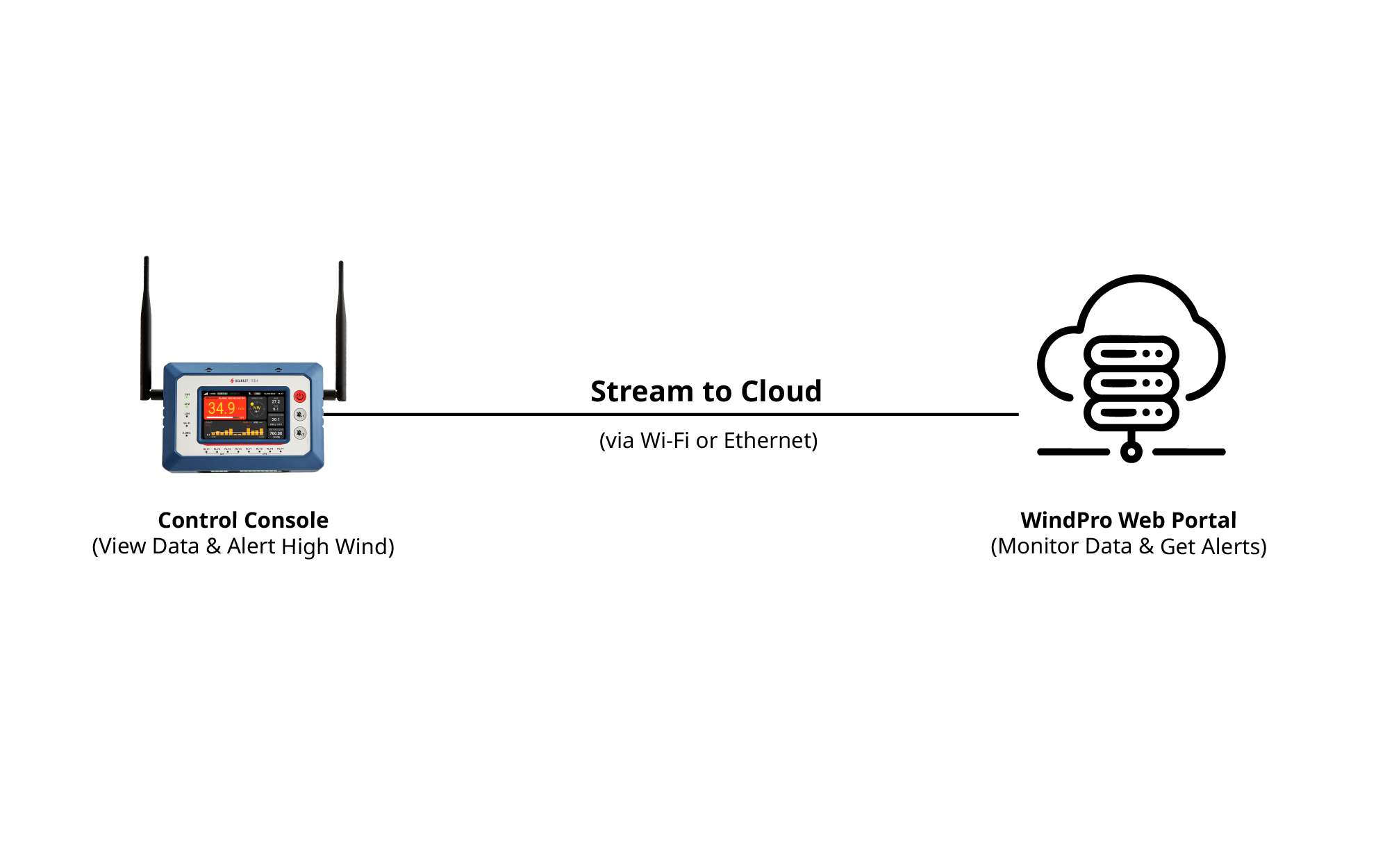

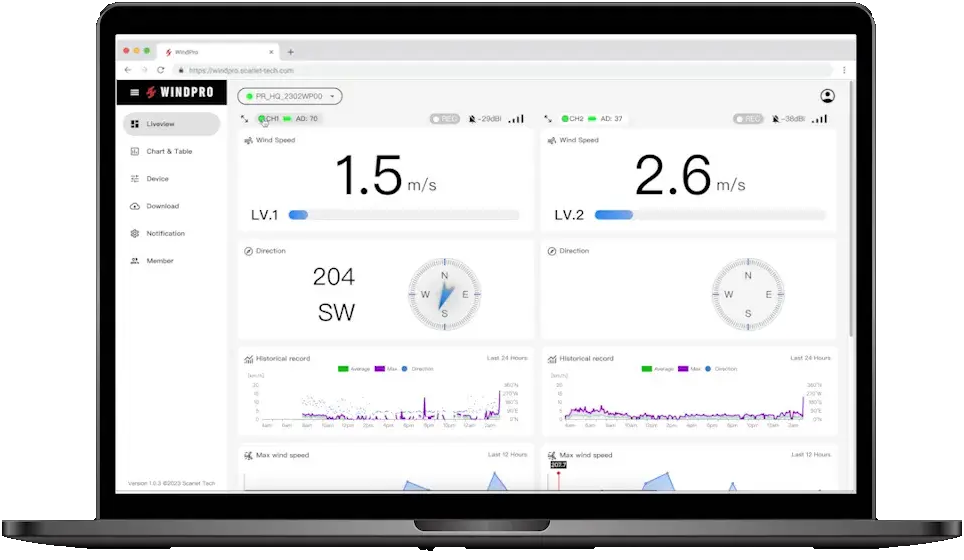

Web-based Remote Wind Management
(WindPro Online)

Upgrade to WindPro Online for remote wind monitoring with unlimited data storage on WindPro Web Portal. Ensuring all critical wind measurements are securely archived and easily accessible from anywhere. Experience the convenience of real-time alerts via email and web notifications, keeping you promptly informed of changing wind conditions.

LEARN MORE

Case Study:
Our Solution,Their Success

How clients benefit by using WindPro for efficient wind monitoring from different locations

Explore how Fons van Egmond, a renowned expert in mega-events production, leveraged WindPro's capabilities at Amsterdam2023. Utilizing its dual-sensor connectivity and remote WindPro web portal, he monitored real-time wind data effectively to enhance safety and precision at various event locations simultaneously.

Client-Captured Product Usages

Explore our photo gallery showcasing WindPro's diverse applications across various industries,
as shared by our clients worldwide. Ideal for use in wind energy, turbines, marine, offshore,
aviation, construction sites, cranes, and more.

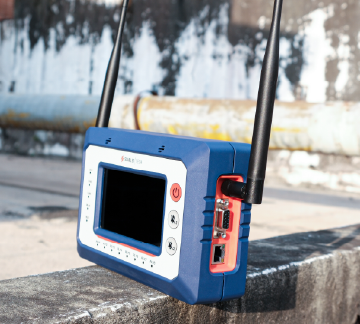

Before Installation

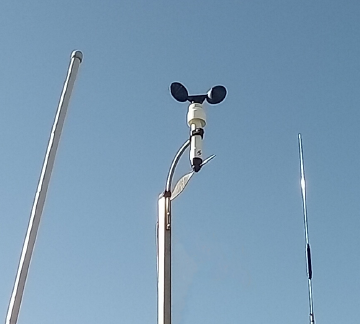

Port Terminal

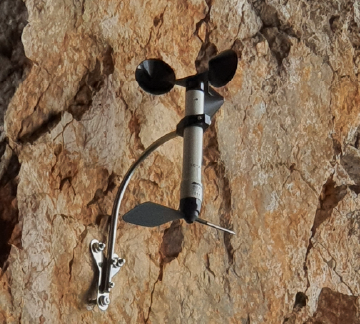

Environmental Research

Outdoor Event

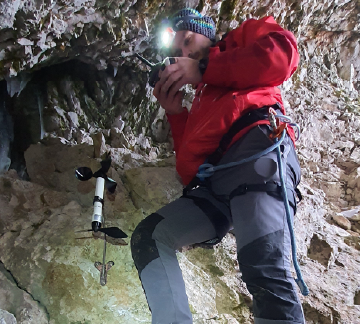

Paradana Ice Cave

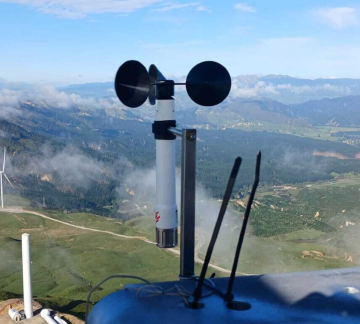

Renewable Energy

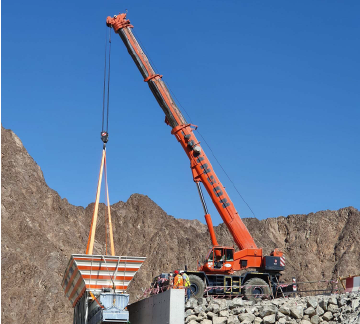

Construction Site

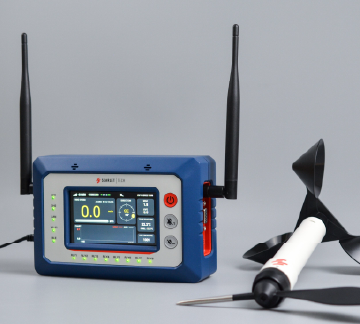

Indoor Setup

Specifications

A maximum wireless range of up to 1,000 meters for extensive coverage.
4-level configurable alarm system with an integrated buzzer for alerts.
Data logging function to record and analyze environmental conditions.
Various outputs for diverse IIoT integration: Relay, 4-20mA, RS232, USB, RJ45, Wi-Fi, and 2.4G Wireless broadcasting.
Measure accurate indexes: wind speed, direction, air temperature, air pressure, and more.
User-friendly touchscreen and can connect to 2-sensors simultaneously.

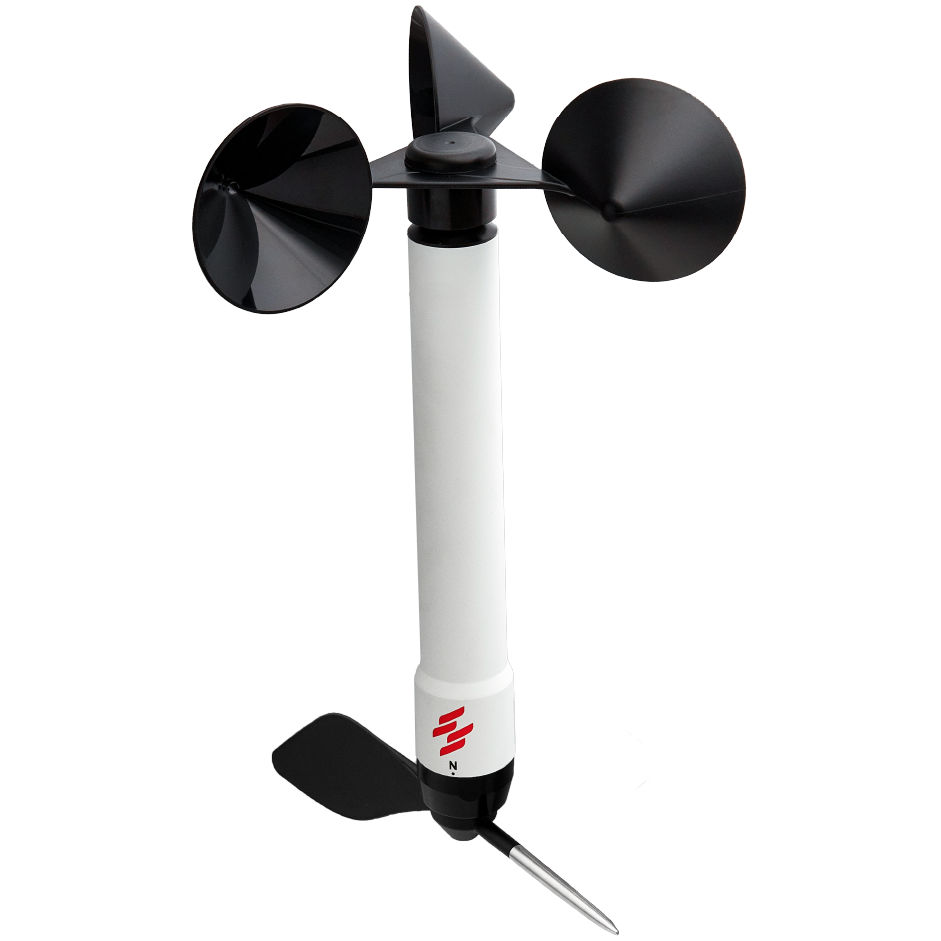

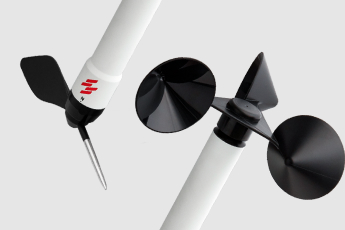

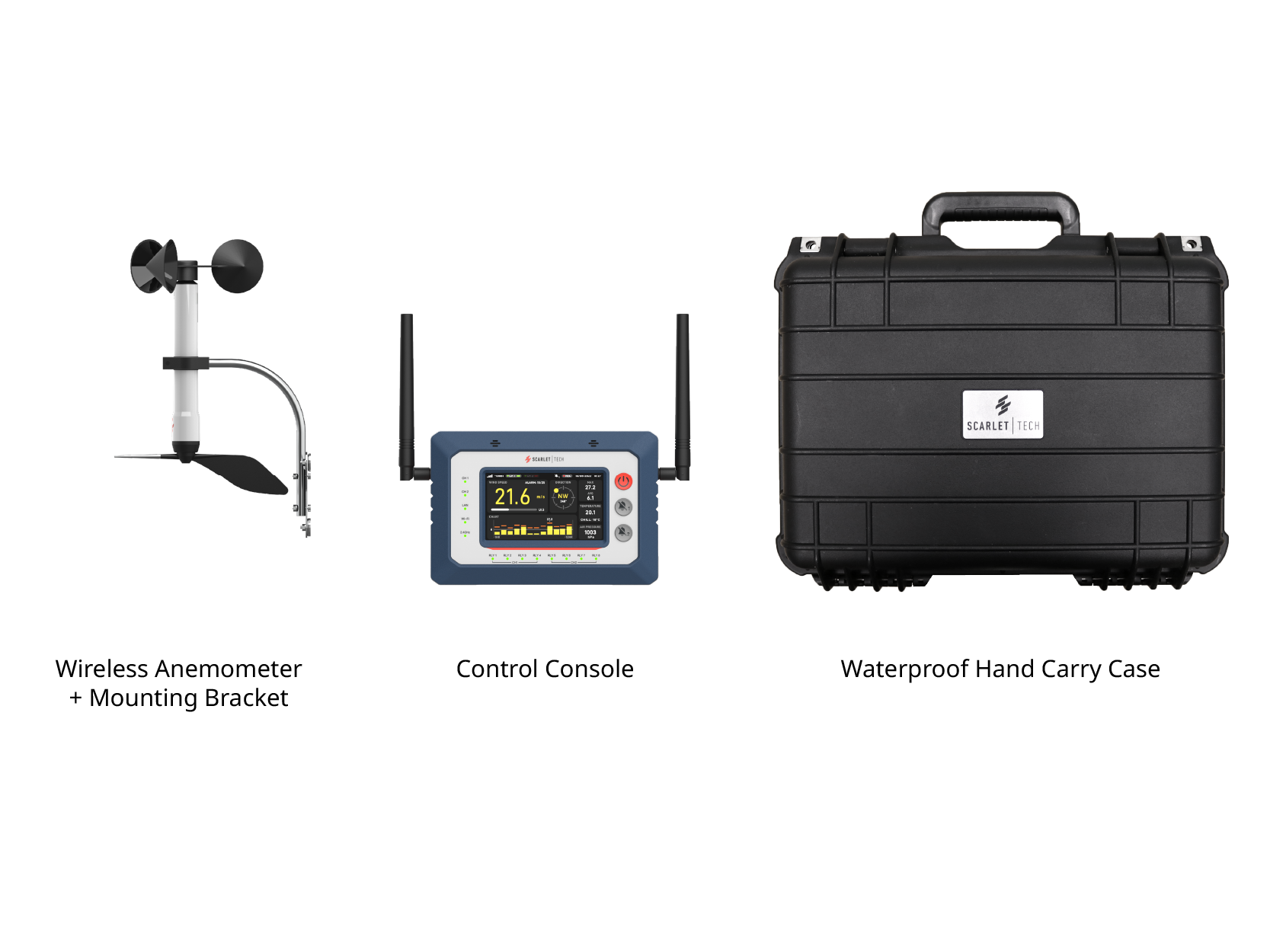

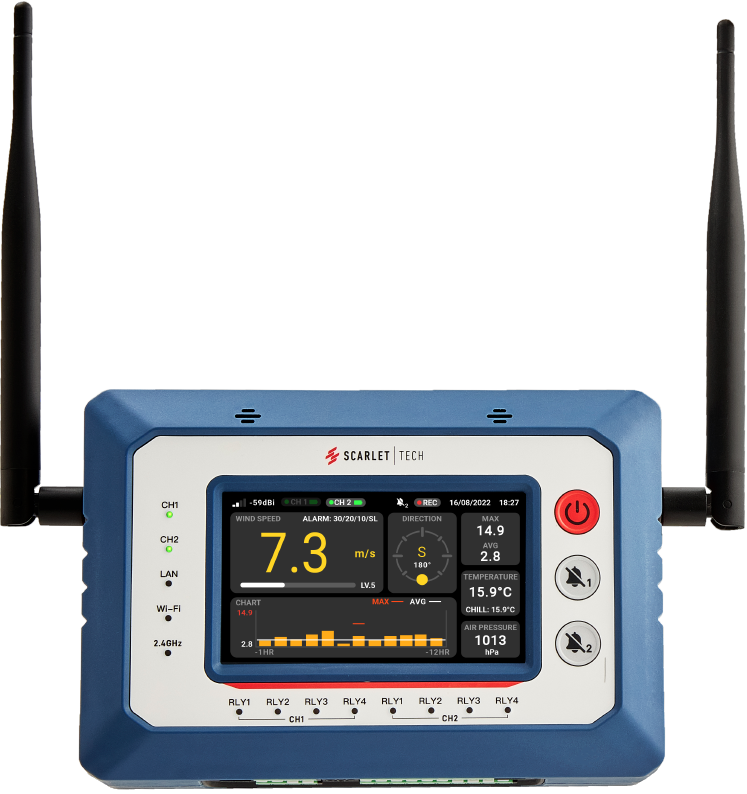

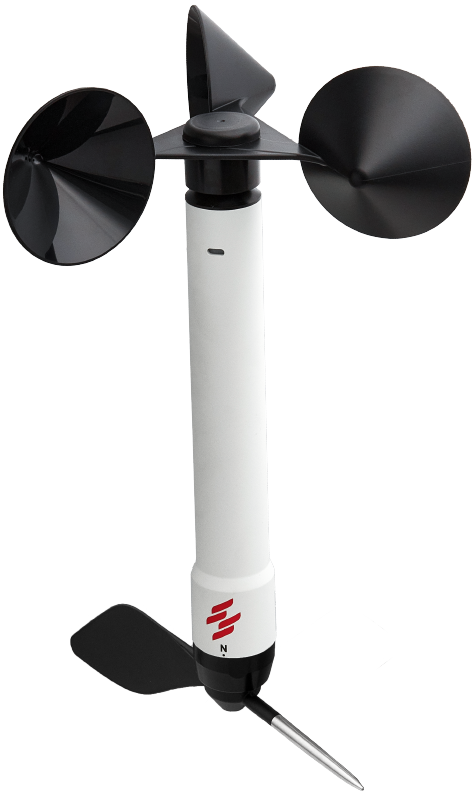

WindPro console with antenna & WL-21 wireless sensor (wind speed and direction)

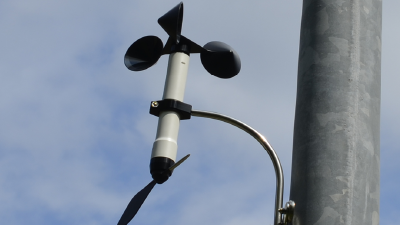

Magnetic sensor mounting bracket
Magnet holder kit designed for the WindPro console
Power adapter (Input: 100-240V, 50/60Hz, 1.5A; Output: 25V, 2.5A)
User manual & certificate of conformity
Scarletwind mobile app
RS232 Windows utility software
Waterproof carrying case
Cloud-based IoT Web Portal for remote wind management (Optional)
24/7 Online Data Logging for continuous monitoring (Optional)
WR-3 Plus wireless wind speed sensor (Optional)

Item	Description

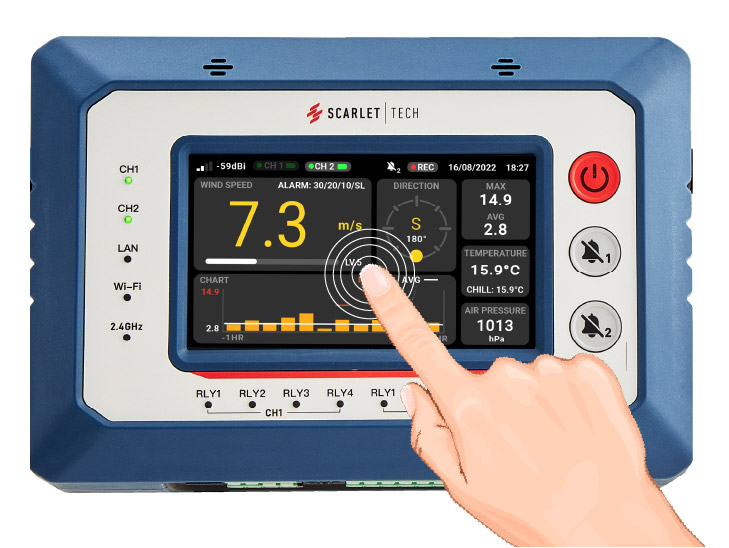

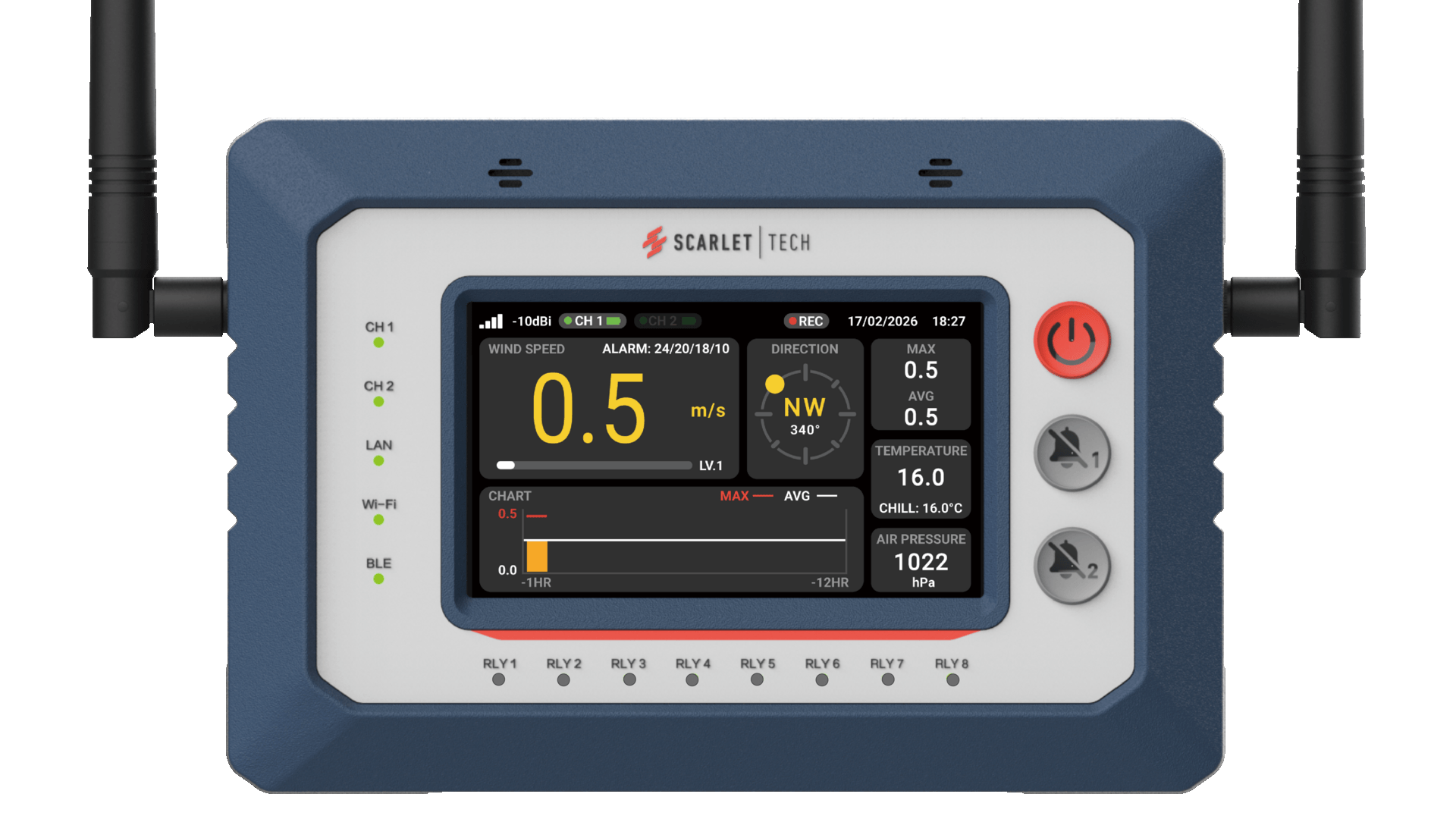

Display	Touchscreen LCD, 4.3" (480 x 272)
Data	Wind speed (Live/avg/max)Wind direction Ambient Temperature Wind Chill Beaufort Scale Air Pressure
Wireless Range	Max to 1km (Sensor to Console, line of sight)
Operating Frequency	868 / 915 / 933 MHz
Antenna Input (Console)	50 ohm, SMA Connector
Recording Data	Wind Speed, Wind Direction, Air Temperature, Air Pressure
Build-in Memory	128MB
Recording Interval	Every 2 Seconds
Measuring Rate	Every 2 Seconds
Buzzer Alarm	> 110 dB
Alarm Thresholds	Wind Speed x 3, Wind Direction x 1 (each channel)
Output Connector	RJ45, RS232, USB Type C (data export), 4-20mA (wind speed & wind direction for each channel), Relay x 4 td (for each channel), Vcc/Gnd x 2 (DC24V)
Wind Speed Measurement Range	0.3 to 50 m/s
Wind Speed Accuracy	±2%
Wind Speed Resolution	0.1 m/s, 0.1 knots, 0.1 MPH, 0.1 km/hr, 0.1 ft/s
Units of Measurement	m/s (default), knots, MPH, km/hr, ft/s
Temperature Measurement Range	-30 to +60 °C
Atmospheric Measurement Range	500 to 1100 hPa
Wi-Fi Frequency Range	2.412 GHz to 2.484 GHz
Wi-Fi Module	CJM410 802.11 b/g/n
WiFi Output Power	Min 16 dBm, Max 20dBm
Power Supply	Sensor: 3.6V Lithium Battery x 1 Console: 60W AC adapter; Input: AC 100-240V, 50/60 Hz, 1.5A; Output: DC 24V, 2.5A
Material Casing	Polyamide 6 (PA6) reinforced, with 35% Glass Fiber (GF)
Dimensions	Sensor: 262.5 x 183.5 x 32mm Console: 185 x 126 x 65mm
Weight	5.1 kg (full package), 700g (WindPro Console)

WindPro Wireless Wind Monitor System datasheet version 2023. 10.15 MB

Download

WindPro Wireless Wind Monitor System - Web Portal User Manual 1.12 MB

Download

WindPro Wireless Wind Monitor System - User Manual 1.14 MB

Download

ScarletWind (WindPro version)

Download

WindPro RS232 Utility

Download

WindSmart App (iOS version)

Download

WindSmart App (Android version)

Download

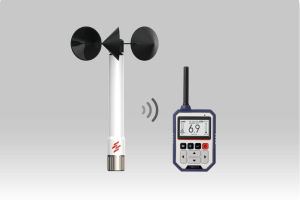

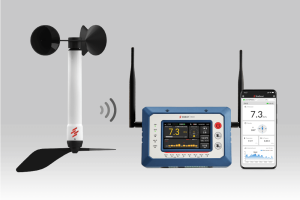

	WindPro	WindPro Online	WR-3 Plus	WL-21

	GET A QUOTE	MORE INFO	MORE INFO	MORE INFO
Wireless Range	1,000 meters	1,000 meters Remote worldwide (Web Portal)	500 meters	500 meters
Sensor	Wind speed Wind direction Air temperature Air pressure	Wind speed Wind direction Air Temperature Air pressure	Wind speed Air Temperature Air pressure	Wind speed Wind direction Air Temperature Air pressure
Number of sensor connected	2	2 (each Console) Unlimited Console (Web Portal)	1	1
IIoT Integration	Relays 4-20 mA RS232 Bluetooth	Relays 4-20 mA RS232 Bluetooth Internet (Ethernet / Wi-Fi)
Alert Thresholds	4-level wind speed / direction alarms	4-level wind speed / direction alarms	Wind speed alarm	Wind speed alarm
Remote Warning		Email / Web browser
Remote Monitoring		Web browser
Software Support	WindSmart (iOS/Android Bluetooth phone app) WindPro RS232 monitoring utility ScarletWind (Windows data extraction software)	WindSmart (iOS/Android Bluetooth phone app) WindPro RS232 monitoring utility ScarletWind (Windows data extraction software)
Power Supply	Sensor: 3.6V lithium battery Receiver: DC 24V power adapter	Sensor: 3.6V lithium battery Receiver: DC 24V power adapter	Sensor: 3.6V lithium battery Receiver: AA batteriey x 3 / USB	Sensor: 3.6V lithium battery Receiver: AA batteriey x 3 / USB
