SV300 Wireless Mobile Crane Camera
The Ultimate Solution for Eliminating Blind Spots of the Loads and Surrounding in Mobile Cranes
Wireless Camera System for Mobile Cranes
Experience a direct 2K audiovisual feed from the loading area and address the potential hazards effectively. Empower operators handle heavy loads with confidence and safeguard on-site personnel safety in demanding conditions.
- 1
- 2
- 3
Integrated Hook Camera
2K wide-angle lens with Starlight imaging, built-in Wi-Fi, SD card, long-life battery, and magnetic mount for simple hook installation.
Touchscreen Tablet Display
10” high-res display shows live video from the hook. Lightweight and easy to mount in any operator cabin.
High-Speed Wireless
5GHz Wi-Fi delivers stable, smooth, low-latency video streaming with up to 300 meters wireless range.
Real-Time Hook View for Safer Crane Lifting
Load View from Hook to Cabin
Ensure Load Visibility During Crane Operations
Plug-and-play 2K video streams from the crane hook with up to 300m wireless range, enhancing visibility and safety during blind lifts.
Hook-Mounted Camera
Snaps onto Hook for 20 Hours of Continuous Operation
Video capture, wireless transmission, and rechargeable battery — all in one compact unit. Attaches to the crane hook via magnetic mount and runs up to 20 hours on a single charge.
In-Cabin Display Set
High-Resolution Live Monitoring with Easy Setup
View real-time HD video that follows the crane hook movement on the 10" tablet in the cabin, with the Streambox powered by car charger or optional supply to ensure a stable wireless feed.
Interested in This Solution? Get a Quote Now!
Enhance safety during mobile crane operations with SV300 wireless camera system.
Get a Quote
Easy & Secure Installation on Cranes
Mounting SV300 wireless crane camera is quick and reliable, using strong magnets and safety lanyards for extra security. With an IP65-rated waterproof and rugged design, it’s built to endure long-hour operation in tough industrial conditions.
Eliminate All
Lifting Blind Spots
Serves as the operator’s extra eye during lifting, SV300 delivers a 2K QHD real-time view and ensures clear visibility in low light conditions.
24/7 Continuous
Video Recording
SV300 supports around-the-clock footage recording on a built-in 265 GB SD card – up to 168 hours in full 2K quality, easily accessed or downloaded for safety and risk monitoring.

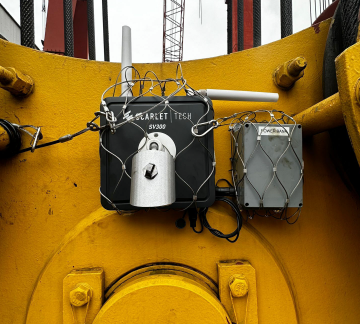

Heavy-Duty Lifting

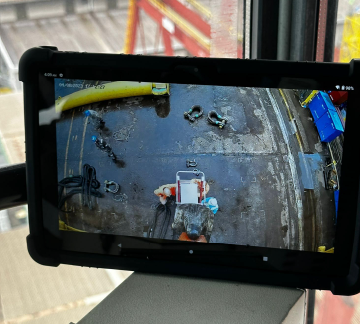

2K Live Video Feed

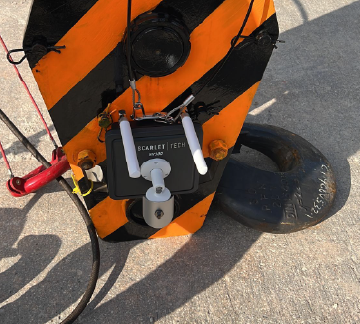

3-in-1 Crane Camera

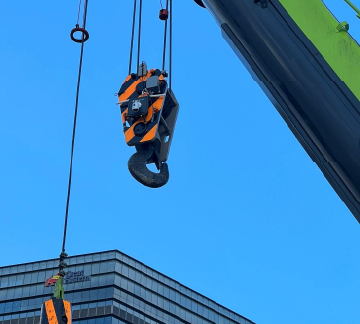

SV300 in Mobile Crane

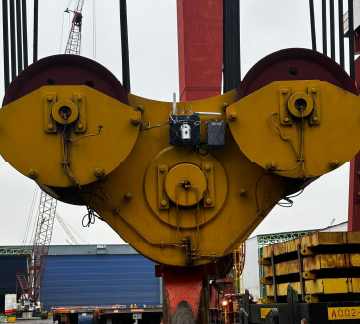

Installation in Singapore Port
Elevate Mobile Crane Safety & Productivity
With the SV300, you can reduce crane-related risks such as blind lift collisions, property damage, and load shifting — giving you peace of mind when handling heavy loads under challenging conditions.
Reduce incidents 55%
Be safer with its clear view of load's security and hazards. An extra set of eyes for better operations
Boost productivity 25%
Boost crane productivity by 31% in blind lifts and 27% in open lifts through improved communication and accuracy.
Cost saving 67%
By faster, more efficient lifts, the lifting project plan be improved. And reduce the need for additional riggers.
Frequently Asked Questions
Find quick answers below, or visit our FAQ page for more.
Is the camera compatible with all types of cranes?
Yes, the camera is designed for universal compatibility, such as tower crane & mobile crane.
Can the SV300 operate at night or in low-light conditions?
Yes, SV300 uses Starlight hook-camera with full-color and auto-defog, even in low light conditions.
Will SV300 easily fall off once it's mounted on the crane?
No, SV300 is equipped with strong magnets. For added protection, a safety lanyard is included.
Tailored Design Specially for Mobile Crane
Crafted exclusively for mobile cranes, our solution is tailored to your needs. Enhance crane operation with a versatile hook camera that seamlessly integrates advanced wireless tech, a durable battery, strong magnets, and a dynamic camera view.
All-in-one hook camera
Integrates with wireless solution, long-lasting rechargeable battery and strong magnets for quick and simple attachment to the crane hook.
Convenient cabin set
Comes with car charger for quick installation in the crane cabin, Streambox receives video stream and makes tablet display it in high definition in real-time.
Dynamic camera view
The camera view follows the movement of the crane hook, reducing the crane driver's effort to manually zoom in or out.
Our Clients
Specifications
- Hook Camera
- Streambox
- Monitor
- Features
- Package List
- FAQ
- Download
| Item | Description |
|---|---|
| Resolution & pixels | 2K QHD 2304 x 1296, 3MP |
| Image sensor | 1/2.8" CMOS |
| Electronic shutter | 1/25s - 1/10,000s |
| Compression standard | H.265 |
| Angle of view | 105° Ultra-wide angle |
| Night vision | Starlight Color Night Vision |
| MIC | Yes |
| Video storage | Yes, 265 GB SD card (168 hrs in 2K) |
| Power supply | DC 14.6V4A (via power charger or battery) |
| Waterproof | IP65 |
| Installation | Mounting by magnets |
| Weight | 2.7 kg |
| Item | Description |
|---|---|
| Wireless technology | Wi-Fi 5GHz |
| Power supply | DC 12V |
| Antenna | Omnidirectional 5GHz x2 |
| I/O port | RJ45 port x1, USB Type A port x1, Power Jack x1 |
| LED indicator | Power status x1, LAN connection status x1, Signal strength x4 |
| Operation temperature | -10℃ to 60℃ |
| Dimensions | 150 x 100 x 48 mm |
| Weight | 0.5 kg |
| Item | Description |
|---|---|
| Display | 10” IPS Touch Screen |
| OS | Android 11 above |
| Resolution | 2000 x 1200 |
| Wireless connectivity | Wi-Fi 802.11 a/b/g/n/ac |
| CPU | Octa-core Processor |
| Memory | 4G DDR |
| Power supply | DC 5V |
| Installation | Hold with a standing bracket |
| Dimensions | 250 x 155 x 8 mm |
| Weight | 0.5 kg |
| Features |
|---|
| Package List |
|---|
-
The all-in-one hook camera providing real-time video feeds to improve crane safety and smooth blind lift operation.
-
Yes, SV300 uses Starlight hook-camera with full-color and auto-defog, even in low light conditions.
-
Please refer to HerculesPro, this system supports remote monitoring by including a Cloud Network Video Recorder (NVR), enabling live video feeds to be displayed in your site office.
-
Up to 300 meters transmission video and data in clear, open spaces.
-
Yes, the camera is designed for universal compatibility, such as tower crane & mobile crane.
-
No, SV300 is equipped with strong magnets. For added protection, a safety lanyard is included.
Case Study:
Our Solution, Their Success
HerculesPro Enhances Visibility & Communication During Dry Bulk Cargo Loading
Learn how Scarlet's HerculesPro enhances visibility and communication with clear 2K video during dry bulk cargo loading.
Learn More
HerculesPro for a Mega Construction Project in Tennessee
Discover how Scarlet’s HerculesPro simplifies multiple crane monitoring at Tennessee’s Chickamauga Lock Replacement project
Learn More
Scarlet HerculesPro Minimize Blind Lift on Tower Crane Lifting Operations
Scarlet Hercules Tower Crane CCTV Minimize Blind Lift
Learn MoreFind the Ideal Crane Camera

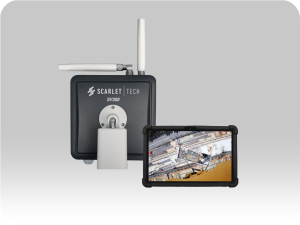

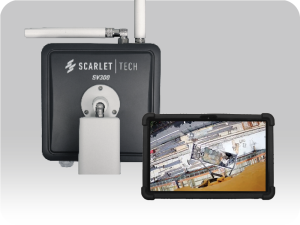

SV300 Wireless Mobile Crane CameraGet A Quote |

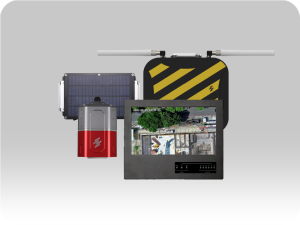

HerculesPro Tower Crane CameraMore Info |
|
|---|---|---|
|
Suitable Crane Type |
Mobile cranes, heavy machinery | Static cranes, tower cranes, port cranes, offshore cranes |
|
Max Wireless Range |
300 meters | 1,000 meters |
|
Camera Resolution |
2K QHD, 3MP Resolution | 2K QHD, 3MP Resolution |
|
Camera Features |
360° camera adjustment Starlight camera technology for a clear vision in low light |
Fixed camera angle points downward. Starlight camera technology for a clear vision in low light |
|
Video Recording |
96 hrs (2K) | 96 hrs (2K) in camera SD card + 30 days in Monitor Console |
|
Power Supply |
Built-in Rechargeable battery: 20 hrs External Power Pack (Optional): Additional 20 hrs |
Battery Bank: 35 hrs |
Industries
Wireless crane cameras are well-suited for wind energy, construction, offshore, and port operations. In these industries, real-time visibility, lifting safety, and blind spot elimination are essential for efficient and secure operations. Designed for tough environments, they help improve coordination and reduce operational risks.
Renewable energy
Ensures safe and precise lifting during wind turbine installation and maintenance. With real-time visibility and robust performance in remote environments, it minimizes risks and improves coordination.
Construction
Wireless crane cameras minimize reliance on ground spotters and reduce the risk of material damage, streamlining operations and accelerating project timelines.
Offshore
In the challenging conditions of offshore platforms, wireless crane camera helps to provide real-time visibility during heavy lifting operations. It eliminates blind spots in material transfer and equipment installation.
Port
Ideal for busy port environments, providing operators with high-definition visibility during cargo loading and unloading. With reduced blind spots and improved communication, it ensures faster and safer operations, even in high-traffic or low-visibility conditions.
