WindPro Online Wind Monitor System
The Online Anemometer Solution with Cloud-Based Wind Monitor System & Email Alerts
Real-Time Wind Monitoring from Anywhere
The advanced online wind monitor system built to enhance safety and operational efficiency. Access real-time wind measurement through a secure online web portal, with all data saved in the unlimited cloud storage. Receive instant wind speed alerts via browser notifications or email.
- 1
- 2
- 3
- 4
- 5
WindPro Console
4.3" touchscreen displays live wind data and audiovisual alerts. Built with 4–20mA, RS232, and relay outputs, the WindPro console integrates seamlessly with your external displays or alerts system.
WindPro Web Portal
A secure platform for WindPro data monitoring, accessible exclusively to authorized team members. It connects WindPro devices to the web portal via Wi‑Fi or Ethernet, enabling remote access to wind data from any location.
WindSmart Mobile App
Bluetooth mobile app for instant wind speed & direction readings at the worksite, accessible for both Android and iOS versions.
Wind Speed Sensor
Wind cups made from tough ABS material ensure high sensitivity, detecting low wind speeds from 0.3 m/s.
Wind Direction Sensor
Wind vane accurately monitors wind direction in the 0-359° range with compass reading capability.
How WindPro Online Works
A Smart Wind Management Monitor
Clould-Based Monitoring & Alerts
WindPro Online connects your sites through the cloud, delivering live wind data to your desktop or phone. Get instant alerts via browser and email when high winds hit, enabling teams to respond quickly. One smart platform for seamless, online wind management.
Local Wind Safety System
Sub-1 GHz Wireless Technology
WindPro console provides direct wind monitoring & alerts for teams in the field. Data from the wind sensor is transmitted wirelessly using Sub-1 GHz technology at max. 1km range, enabling on-site personnel to respond immediately to changing wind conditions.
24/7 Connected Wind Network
Sync Field Data to the Cloud
WindPro console connects to the online portal using Wi-Fi or Ethernet. Once online, all data is securely stored and accessible via the web portal with unlimited storage. This connection bridges the job site and remote users, ensuring up-to-date wind information is always available across teams.
Interested in This Solution? Get a Quote Now!
Experience online wind monitoring with WindPro Online.
Get a Quote
Unlimited Data Access to Web Portal
Monitor data from multiple WindPro devices, get instant wind alerts via email or browser, and export Excel logs.
Streamlined Real-Time Wind Readings
The WindPro Web Portal delivers real-time, reliable data tailored for industrial use and seamlessly integrates with IIoT systems.
Explore the WindPro Web Portal demo using the login below:
Account: demo1@scarlet-tech.com
Password: scar@123
Data Visualization
WindPro Web Portal provides a comprehensive chart and table view for a quick glance at wind data. Download the historical data for in-depth analysis and future trend predictions.
Local and Remote Data Backup
• The data can be accessed locally from console and exported to Excel.
• Wind data recorded at a 2-second interval and stored in WindPro console (128MB).
• Synchronizing data on the remote data center.

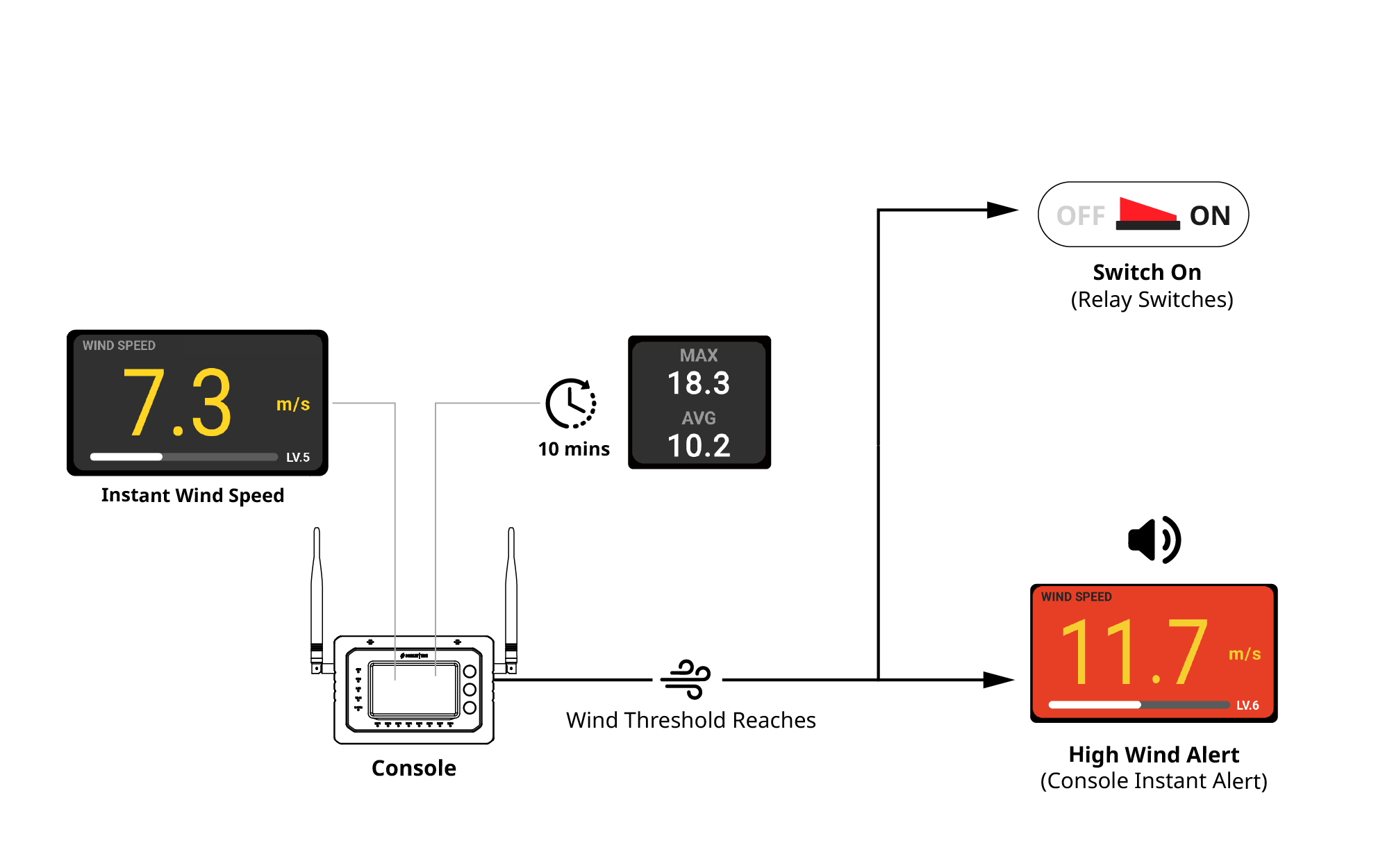

Instant Notifications
from Anywhere
The wind alert system is built in the WindPro console for onsite alarming. It can be connected to external devices, like LCD signages or sirens. Additionally, remote personnel/HSE managers can stay informed by email and web notifications.
Console
Onsite visual & audible alarms
Browser
Pop-up warnings
User-defined notifications
Frequently Asked Questions
Find quick answers below, or visit our FAQ page for more.
I have purchased WindPro, can I upgrade to WindPro Online?
Yes, you can upgrade by purchasing the 1-year WindPro web portal access.
How many people can access to a WindPro Online monitoring portal?
Unlimited teams, with each team up to 3 people, consist of 1 manager and 2 members.
Apart from remote monitoring, can data still be viewed onsite?
Yes, you can monitor and receive instant alerts from the WindPro onsite.
A Safety Sentinel for
Any Wind Condition
Take control of your wind monitoring needs and ensure project efficiency with advanced features of WindPro today.

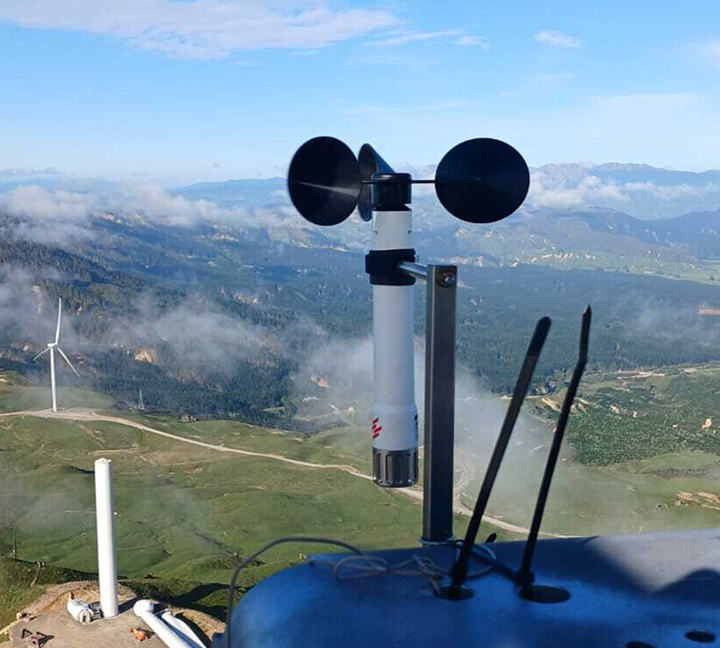

Renewable Energy

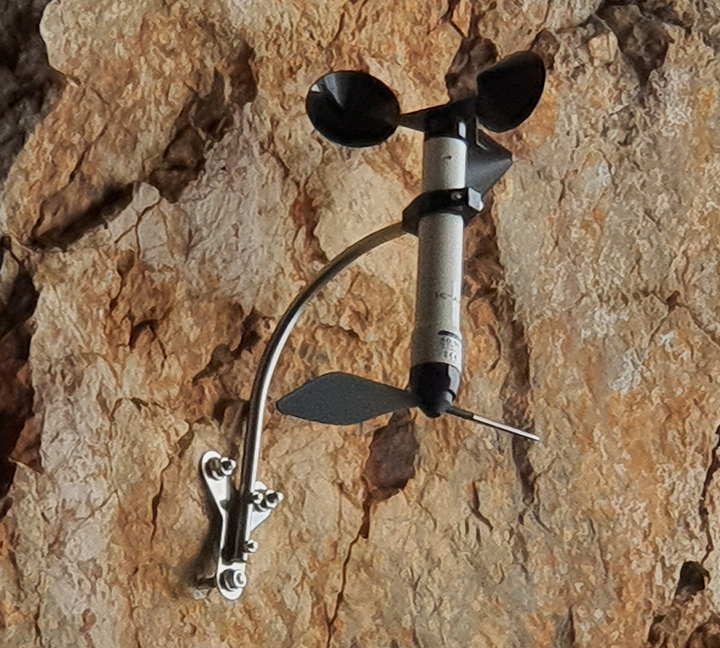

Environmental Research

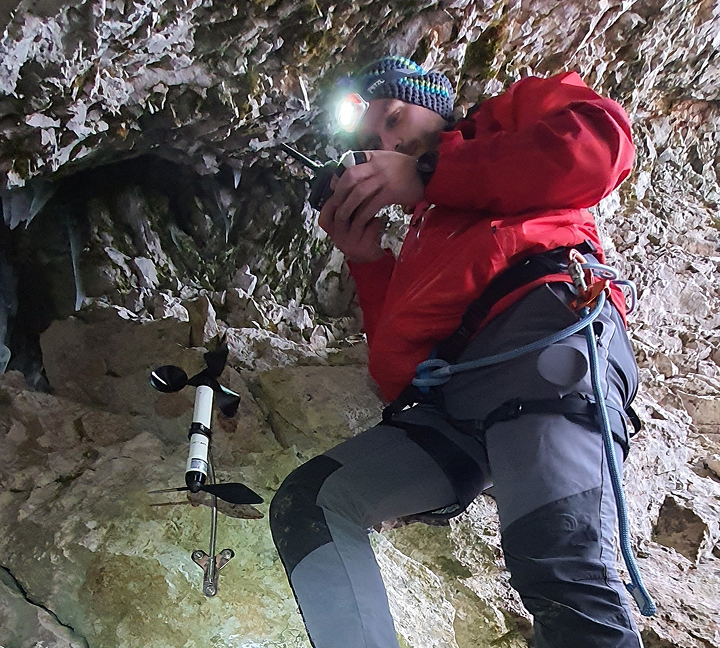

Paradana Ice Cave

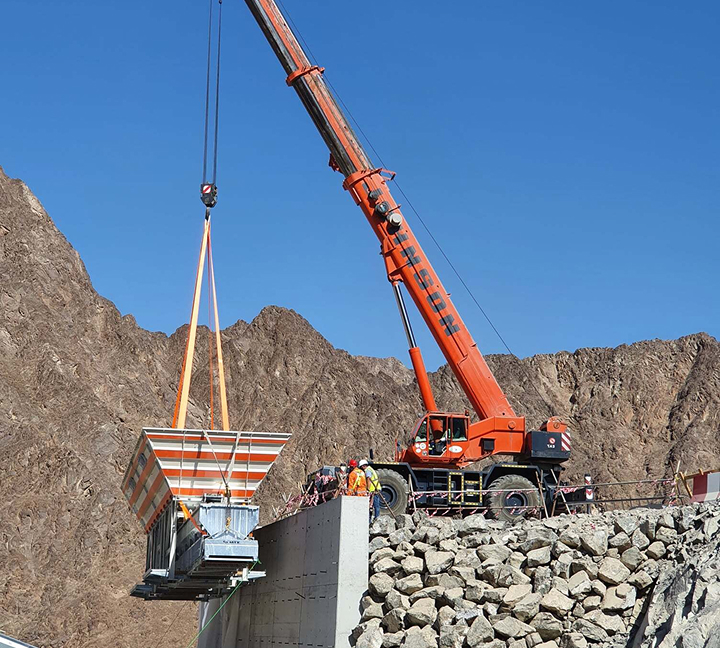

Construction Site

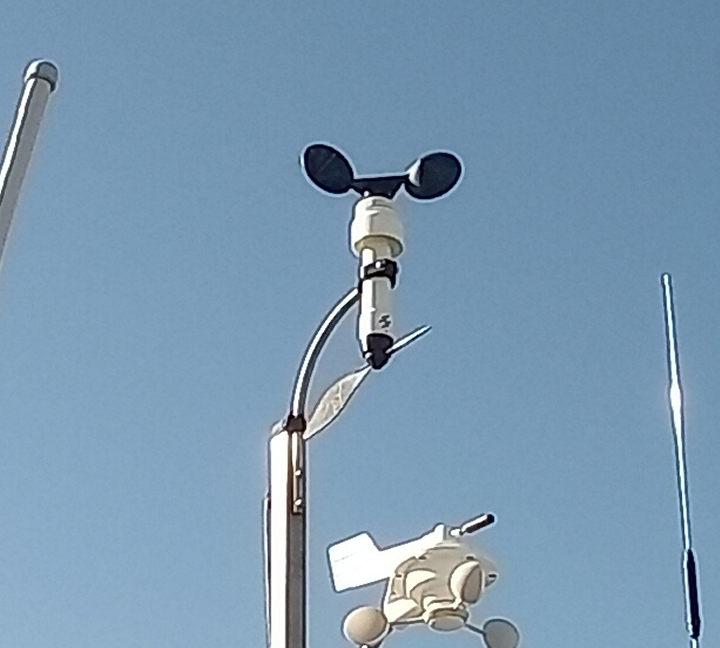

Port Terminal

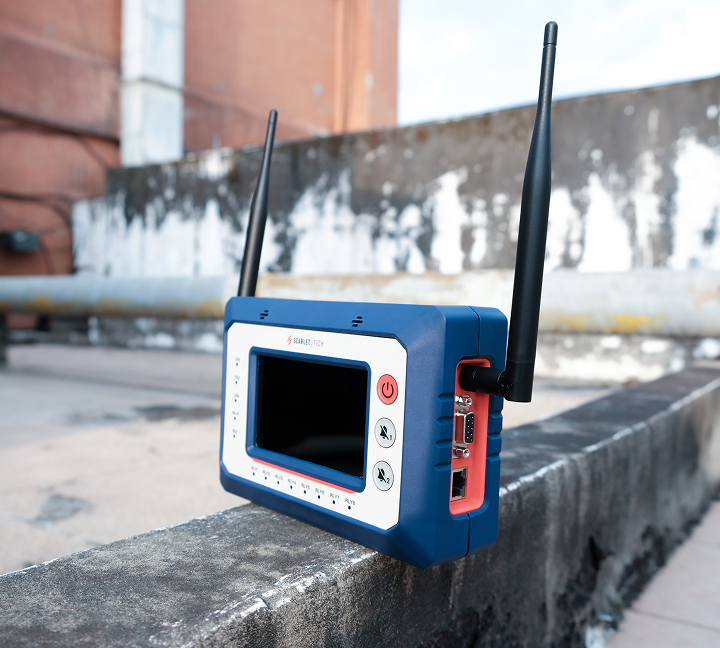

Before Installation

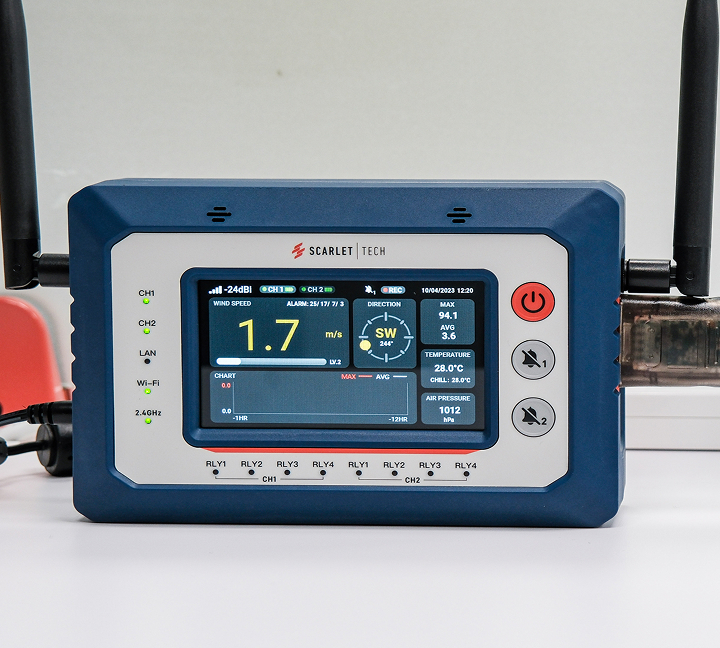

Indoor Setup
Specifications
- Control Console
- Wind Sensor
- Features
- Package List
- FAQ
- Download
| Item | Description |
|---|---|
| Display | Touchscreen LCD, 4.3" (480 x 272) |
| Wireless range | Max to 1 km (Sensor to Console, line of sight) |
| Operating frequency | 868 / 915 / 933 MHz |
| Build-in memory | 128 mb |
| Measuring rate | Every 2 Seconds |
| Buzzer alarm | > 110 dB |
| Alarm thresholds | Wind Speed x 3, wind direction x 1 (each channel) |
| Power supply | 60W AC adapter (Input: AC 100-240V, 50/60 Hz, 1.5A; Output: DC 24V, 2.5A) |
| Material casing | Polyamide 6 (PA6) reinforced, with 35% Glass Fiber (GF) |
| Item | Description |
|---|---|
| Measurement | Wind speed (Live/avg/max), Wind direction, Ambient Temperature, Wind Chill, Beaufort Scale, Air Pressure |
| Wind speed measurement range | 0.3 to 50 m/s |
| Wind speed accuracy | ±2% |
| Wind speed resolution | 0.1 m/s, 0.1 knots, 0.1 MPH, 0.1 km/hr, 0.1 ft/s |
| Units of measurement | m/s (default), knots, MPH, km/hr, ft/s |
| Temperature measurement range | -30 to +60 °C |
| Atmospheric measurement range | 500 to 1100 hPa |
| Wind direction range | 0-359° no blank sector |
| Data transmission | Every 2 seconds |
| Dimensions | 262.5 x 183.5 x 32 mm |
| Waterproof | IP67 |
| Features |
|---|
| • A maximum wireless range of up to 1,000 meters for extensive coverage. |
| • 4-level configurable alarm system with an integrated buzzer for alerts. |
| • Data logging function to record and analyze environmental conditions. |
| • Various outputs for diverse IIoT integration: Relay, 4-20mA, RS232, USB, RJ45, Wi-Fi, and 2.4G Wireless broadcasting. |
| • Measure accurate indexes: wind speed, direction, air temperature, air pressure, and more. |
| • User-friendly touchscreen and can connect to 2-sensors simultaneously. |
| Package List |
|---|
| • Cloud-based IoT web portal for remote wind management |
| • 24/7 online data logging for continuous monitoring |
| • WindPro console with antenna |
| • WL-21 wireless wind sensor (wind speed and direction) |
| • Magnetic sensor mounting bracket |
| • Magnet holder kit designed for the WindPro console |
| • Power adapter (Input: 100-240V, 50/60Hz, 1.5A; Output: 25V, 2.5A) |
| • User manual & certificate of conformity |
| • ScarletWind mobile app |
| • RS232 Windows utility software |
| • Waterproof carrying case |
| • WR-3 Plus wireless wind speed sensor (Optional) |
-
WindPro Online monitors live wind data and alerts remotely via WindPro web portal. It is capable of connecting multiple WindPro devices on the portal for seamless management of all wind monitoring projects.
-
There is no limit. You can connect as many WindPro devices as needed for remote monitoring.
-
The WindPro console can be integrated with systems that support 4–20 mA analog input, relay control, or RS232 signal communication. Watch our YouTube playlist for the complete tutorials.
-
Yes, you can upgrade by purchasing the WindPro web portal access. The access is valid for a year, and you can continue renew it.
-
Yes, you can access our demo site. Visit https://windpro.scarlet-tech.com/login with the following credentials:
Email: demo1@scarlet-tech.com
Password: scar@123 -
3 people, consist of 1 manager and 2 members. Read the article of How to Access the WindPro Web Portal? for full details.
-
Yes, you can monitor data and receive audiovisual alerts directly from the WindPro device onsite, ensuring both onsite and remote capabilities.
Case Study:
Our Solution, Their Success
Hassle-Free Wireless Wind Monitoring for Empty Container Yards
Discover how WindPro wireless anemometer ensures wind safety with easy operation, instant alerts, and long-hour performance.
Learn More
WindPro Online for Wind Monitoring Across Multi-Sites
Discover how Scarlet‘s WindPro helps monitor wind remotely to enhance safety. WindPro was deployed at the Amsterdam2023 outdoor concert, providing 24/7 online wind monitoring and remote wind alerts.
Learn More
WR-3 Plus Optimizes Wind Safety for Ferris Wheel Operations
Learn how WR-3 Plus monitors wind speed at Palanga Ferris Wheel with real-time data and alerts. Ideal for amusement parks.
Learn MoreFind the Perfect Anemometer
WindPro Online Wind Monitor SystemGet A Quote |
WL-21 Wind Data LoggerMore Info |
WR-3 Plus Wind Speed MeterMore Info |
WindPro Wireless Wind MonitorMore Info |
|
|---|---|---|---|---|
|
Optional Sensors |
2 (each console) Unlimited Console (Web Portal) |
1 | 1 | 2 |
|
Max Wireless Range |
1,000 meters Remote worldwide (Web Portal) |
500 meters | 500 meters | 1,000 meters |
|
Measurement Parameters |
Wind speed Wind direction Air Temperature Air pressure |
Wind speed Wind direction Air Temperature Air pressure |
Wind speed Air Temperature Air pressure |
Wind speed Wind direction Air temperature Air pressure |
|
Alerts |
4-level wind speed/direction alarms | Wind speed alarm | Wind speed alarm | 4-level wind speed/direction alarms |
|
Remote Monitoring |
Web browser | - | - | - |
|
Software Support |
WindSmart (iOS/Android Bluetooth phone app) WindPro RS232 monitoring utility ScarletWind (Windows data extraction software) |
- | - |
WindSmart (iOS/Android Bluetooth phone app) WindPro RS232 monitoring utility ScarletWind (Windows data extraction software) |
|
System Integrations |
Relays 4-20 mA RS232 Bluetooth Internet (Ethernet/Wi-Fi) |
- | - |
Relays 4-20 mA RS232 Bluetooth |
|
Power Supply |
Sensor: 3.6V lithium battery Receiver: DC 24V power adapter |
Sensor: 3.6V lithium battery Receiver: AA batteriey x 3/USB |
Sensor: 3.6V lithium battery Receiver: AA batteriey x 3/USB |
Sensor: 3.6V lithium battery Receiver: DC 24V power adapter |
Industries
Scarlet products have been applied to varieties of industries. The risks associated with wind are often underestimated by the public. The Scarlet wind monitoring systems ensure workforce safety and regulatory compliance on cranes as well as other industries.
Renewable energy
Enhance planning and decision-making for renewable energy projects with ease. Measure wind speeds, identify optimal turbine locations, and evaluate areas for sustainable energy generation.
Construction
All construction project and especially high angle constructions operates under wind risk. Monitoring wind speed and wind direction is a vital issue when it comes to safe operation of construction sites.
Offshore
The rise in offshore wind farms needs accurate and easy-to-use wind measurement tools. Scarlet's wireless anemometer gives precise readings and is smaller and lighter, perfect for offshore use.
Building
Building skyscrapers is a common engineering project nowadays. Changeable climates also matters to workers at the construction site. Strong wind up there while under construction is a big threat for workers and might be fatal.
Port
Wind speed direction can significantly affect the position of a ship or oil platform. Regulations require that the vessels record weather data, including wind speed on a regular basis, with data displayed continuously on the bridge.
Outdoor events
Accurate wind data is required for both the build and setup process as well as during outdoor events. Monitoring of actual rigging loads, weight distribution and wind speed allows operators to make informed decisions regarding the stability of a structure.
