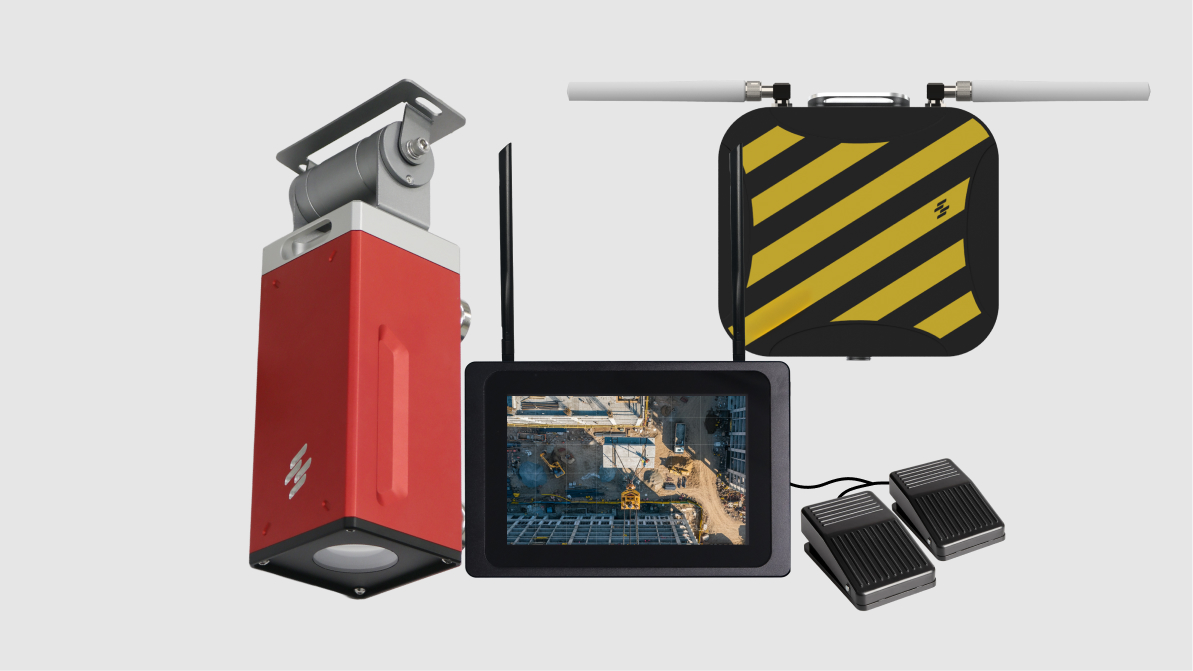

SkyTitan Tower Crane Camera System
25× Optical Zoom Real-Time Visibility for Trolley Cranes
Eliminate Blind Spots with Crane Load & Surrounding Views
Built for tower crane operation safety, SkyTitan Wireless Crane Camera System gives operators a live, real-time view of lifting activities. The trolley-mounted camera enhances operator visibility with high-definition video and 25× optical zoom control. With low-latency wireless technology and on-screen guidance, SkyTitan improves lifting precision and reduces communication errors.
- 1
- 2
- 3
- 4

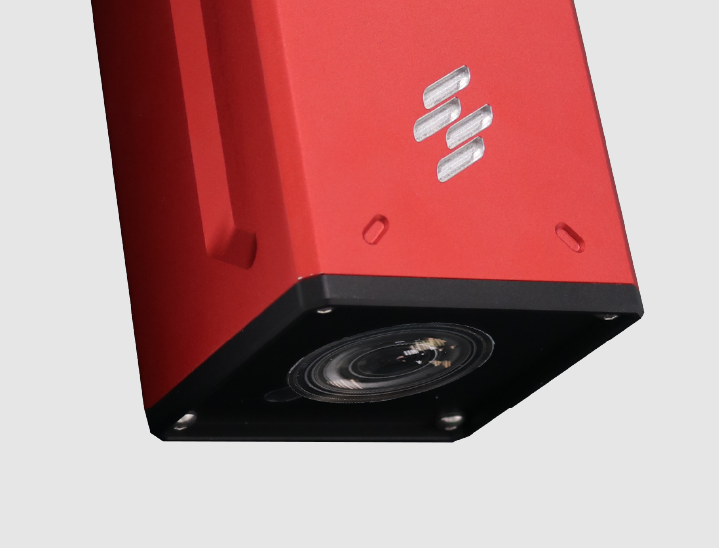

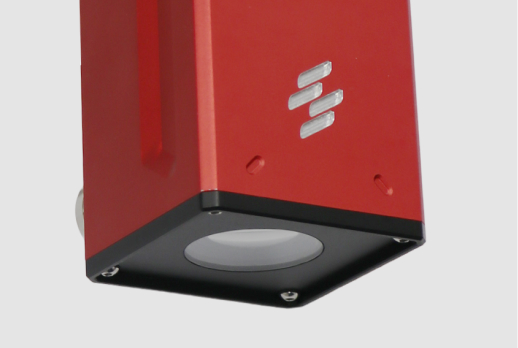

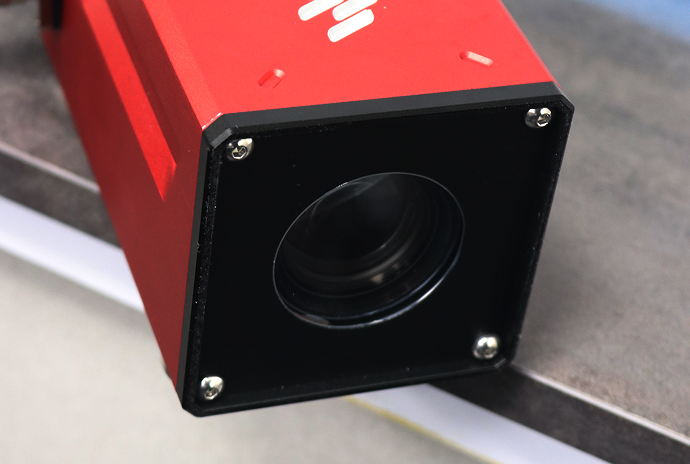

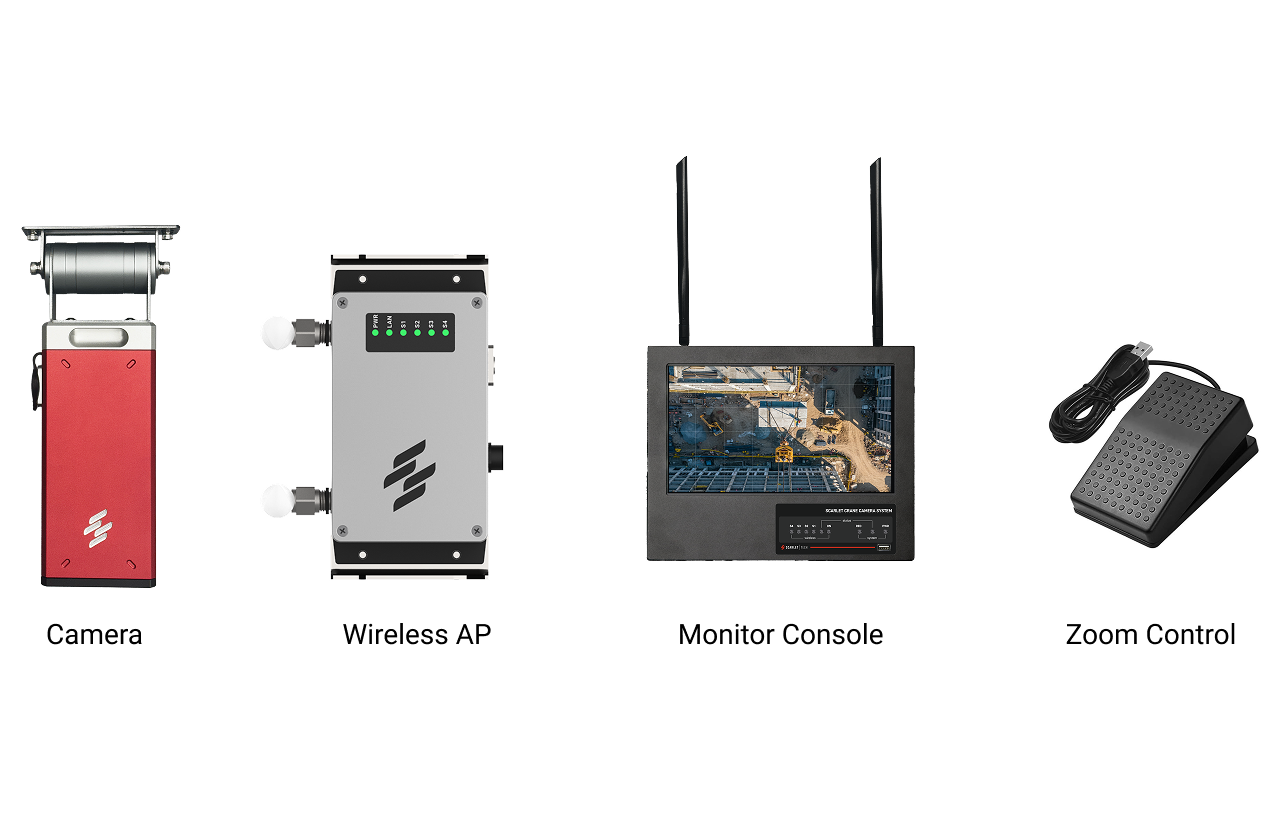

Crane Camera

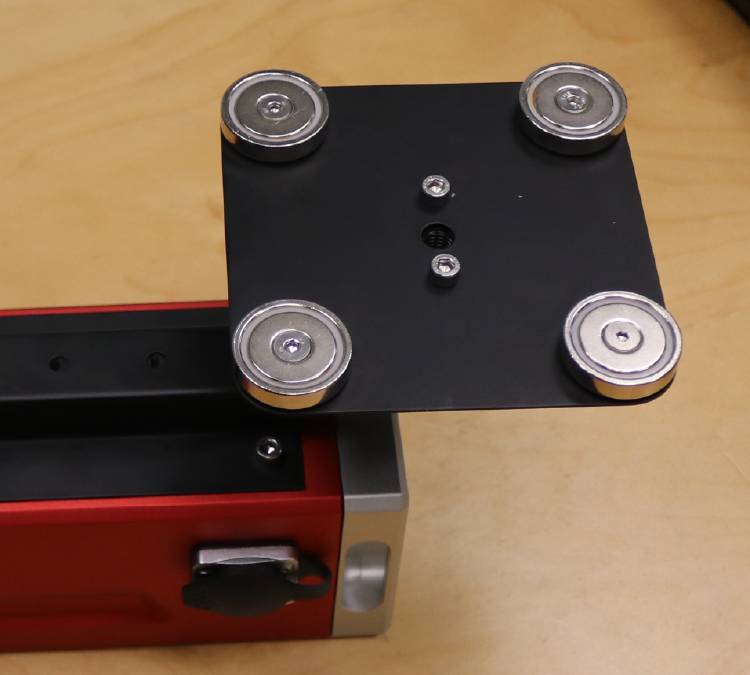

25x optical zoom movement with full-color night vision. Built with IP67-rated housing and strong magnetic mount for safe crane installation.

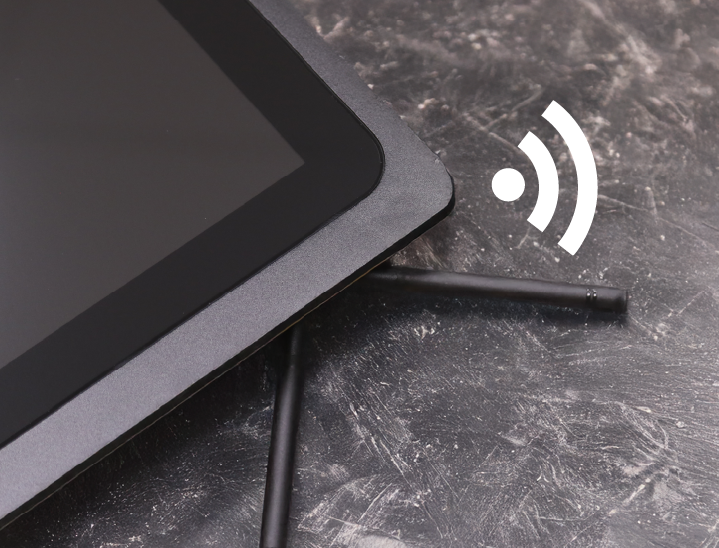

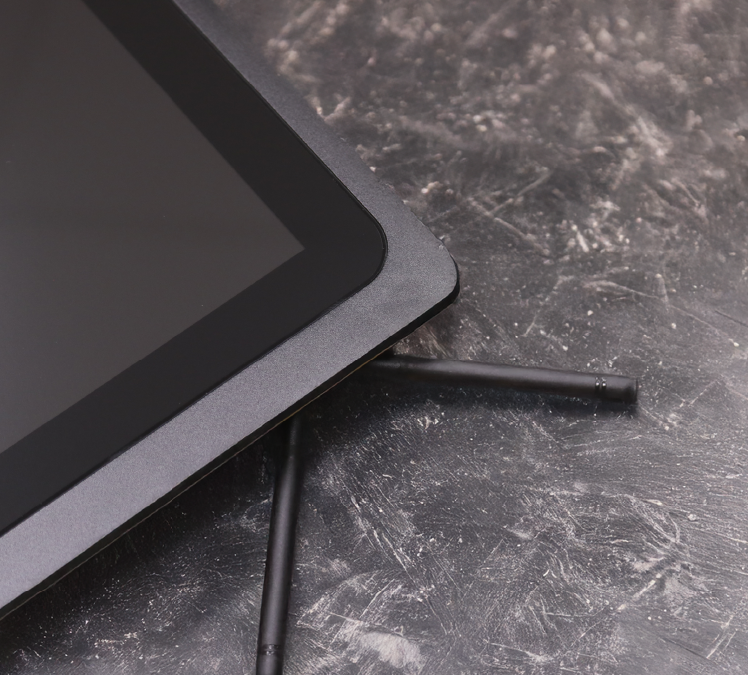

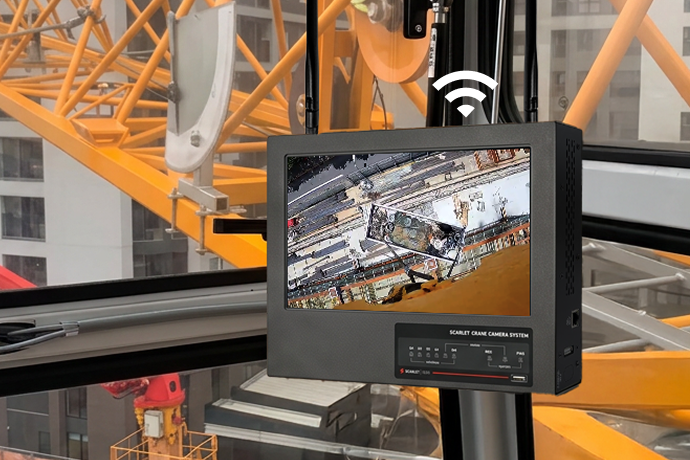

Monitor Console
The 11-inch monitor console delivers Ultra HD view crane lifts with footage playback and export.

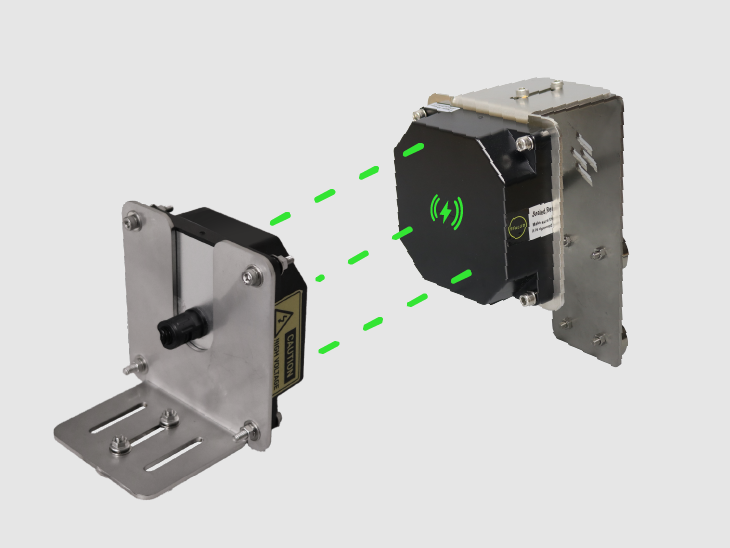

Automatic Recharging System
24/7 power up automatically through wireless battery charging, providing up to 40 hours of operation with a full recharge in 5 hours.
Instant Video Transmission
SkyTitan utilizes industrial Wi-Fi 5GHz wireless technology for a stable, low-latency video stream, ensuring operators see every lift as it happens.

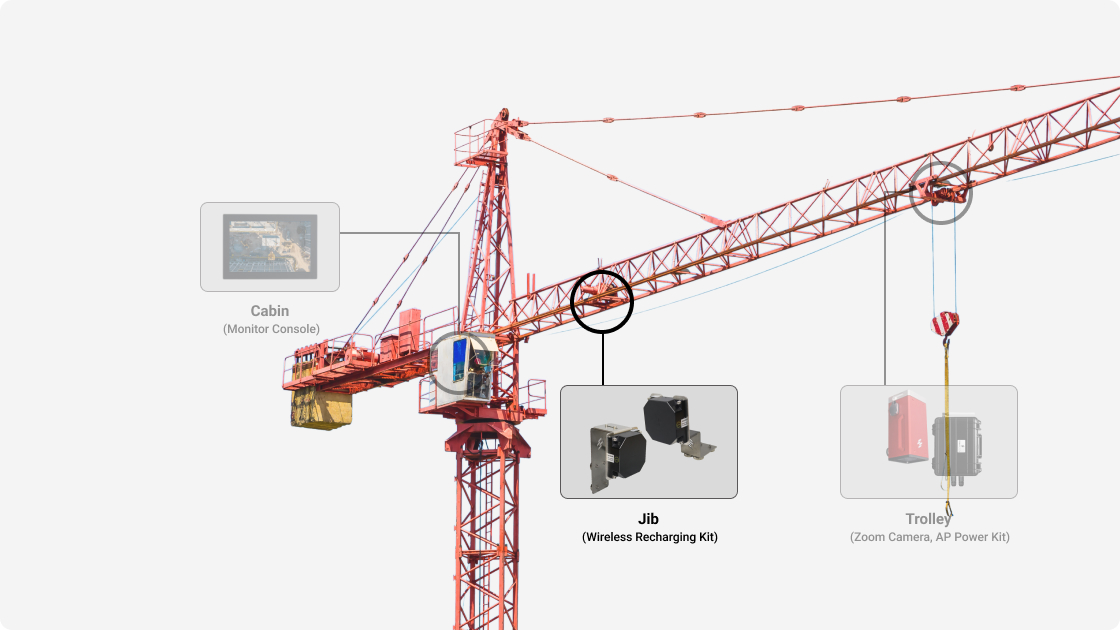

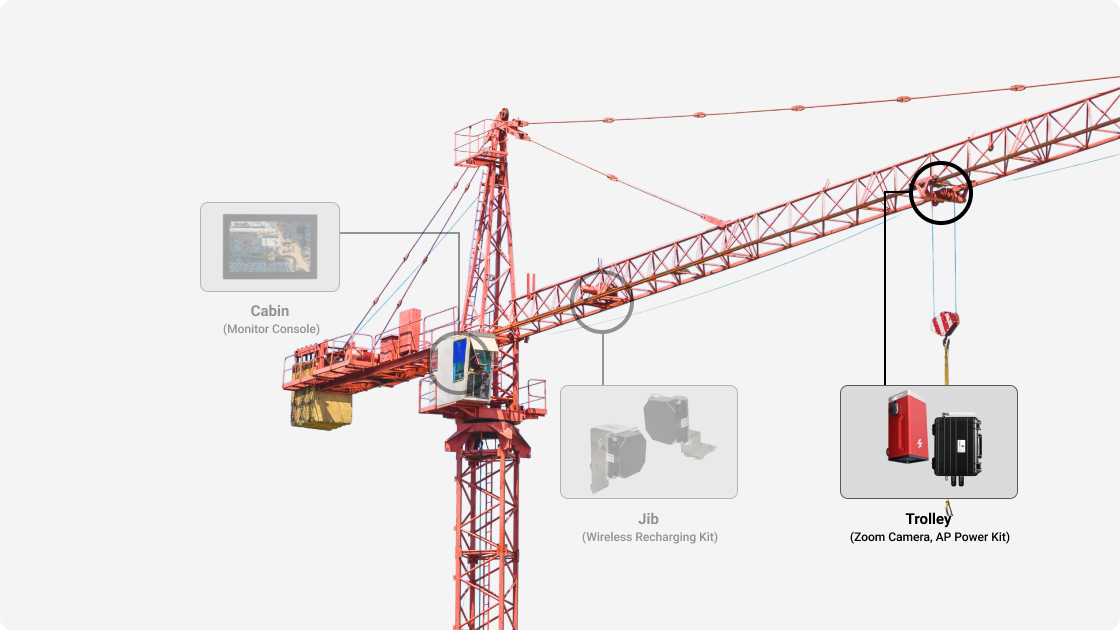

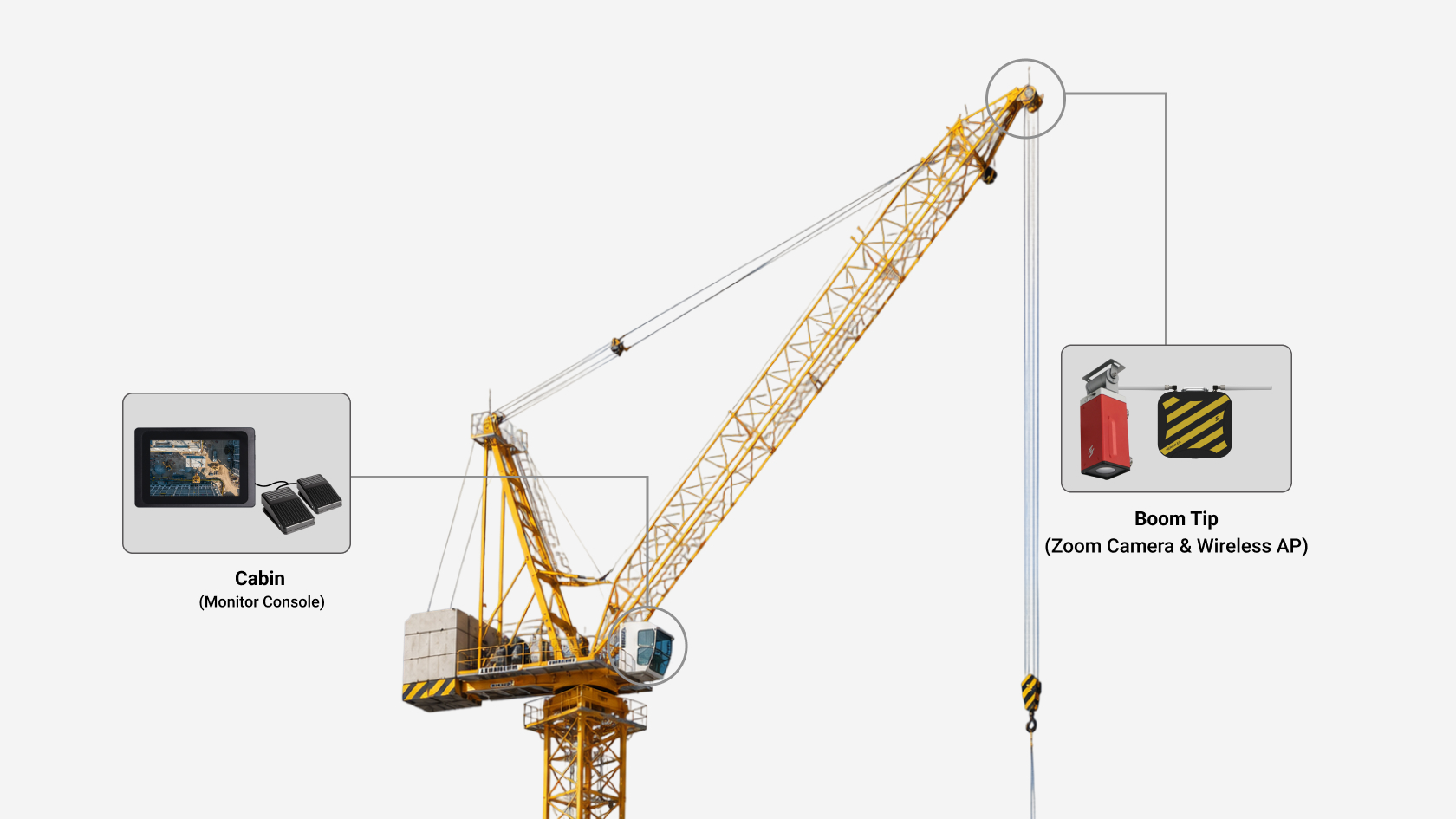

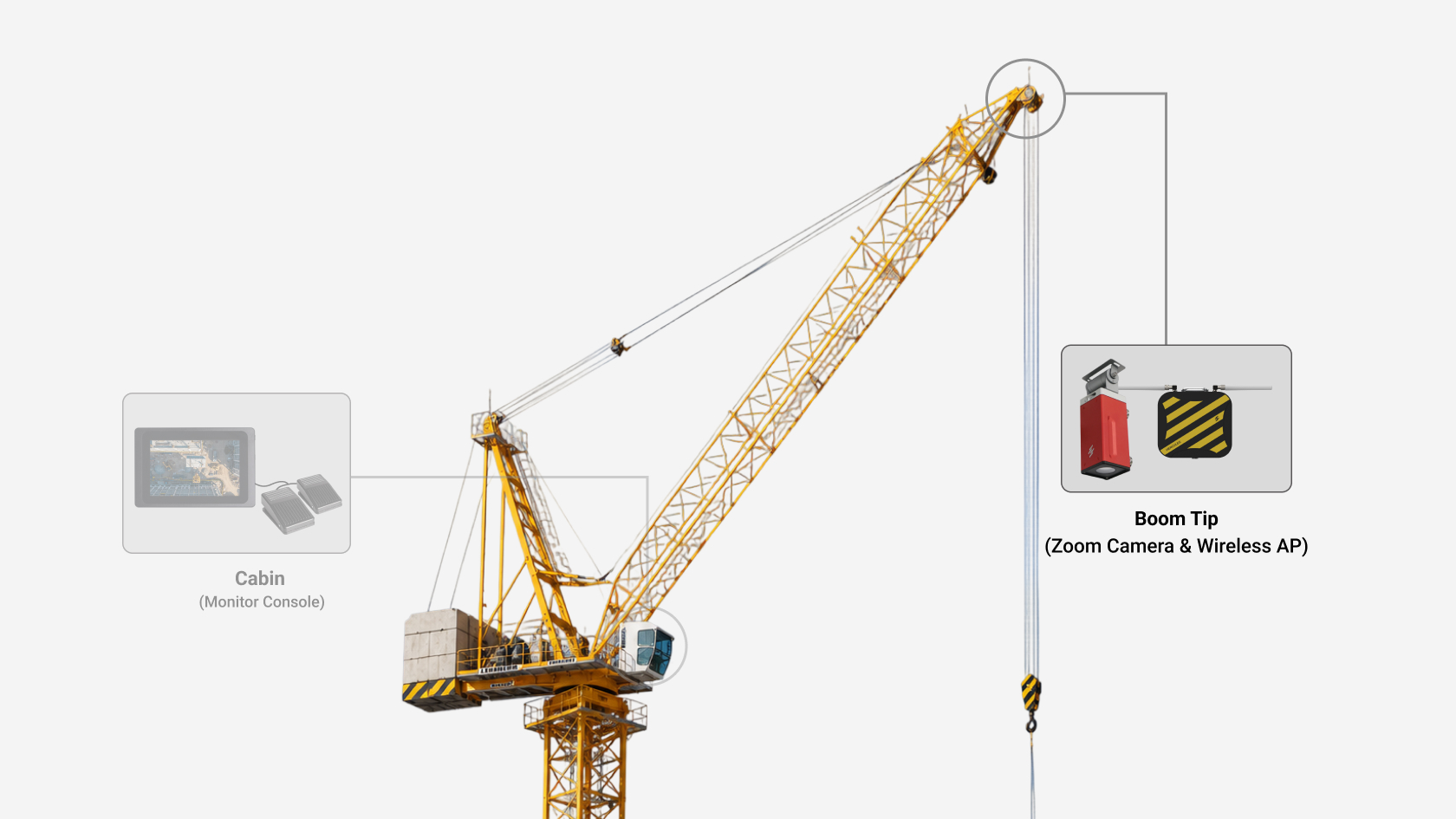

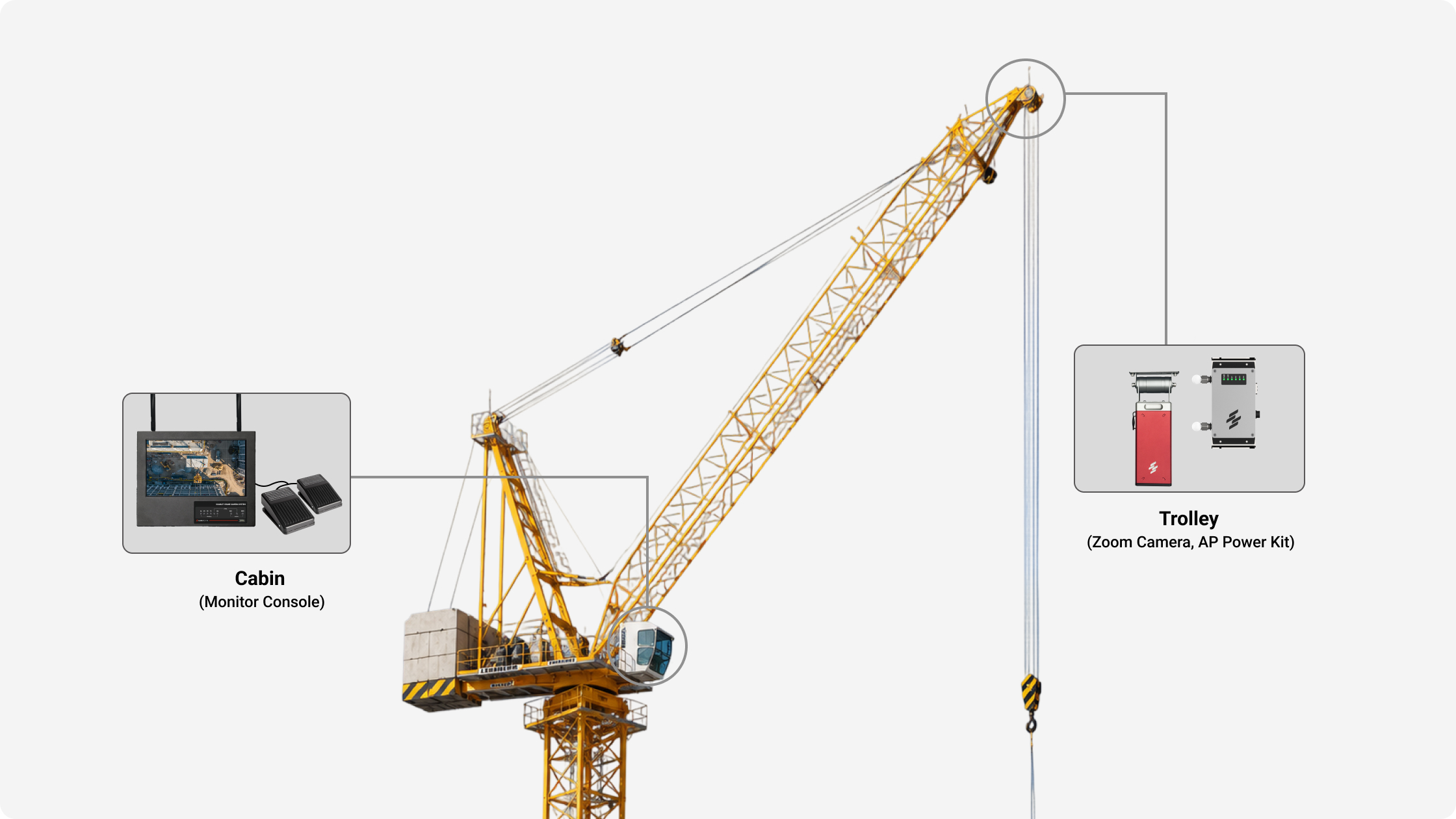

How SkyTitan Works on Tower Cranes

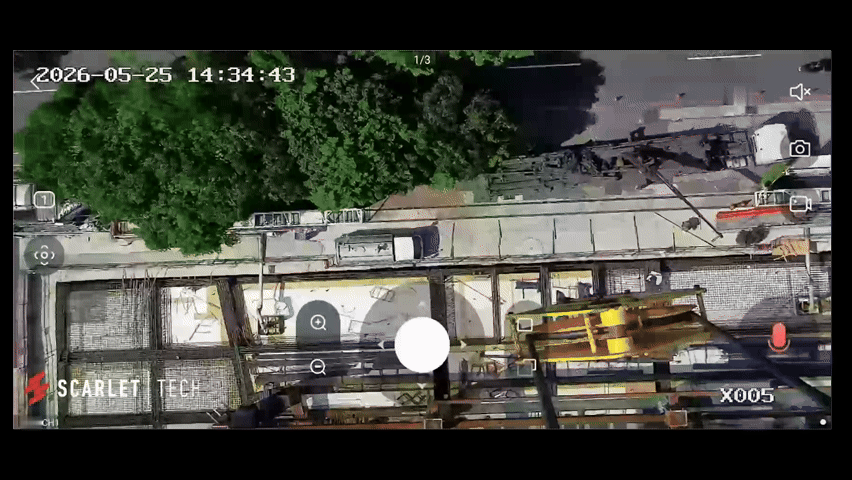

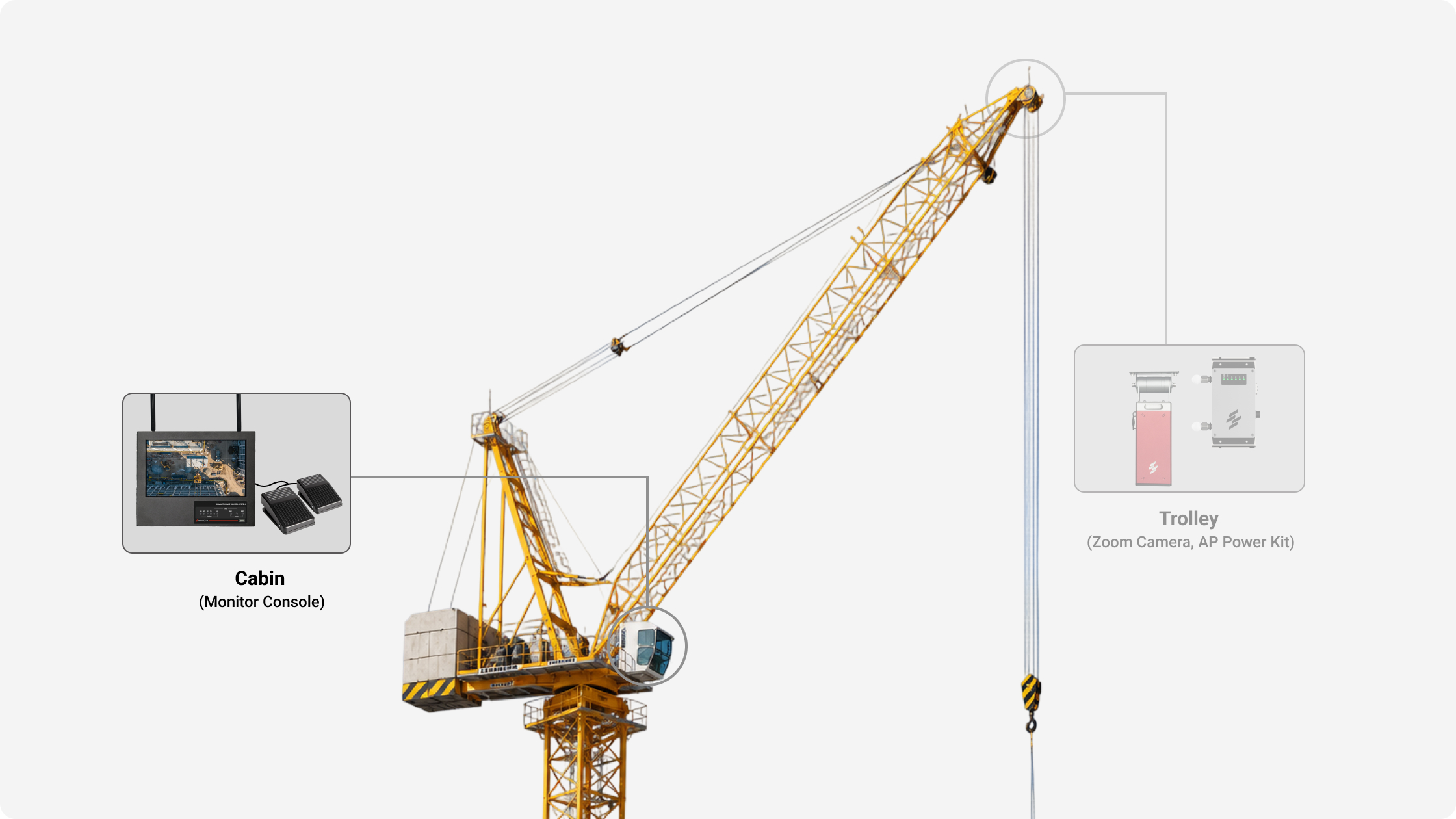

Real-Time Crane Camera
Live Top-Down View in Every Lift

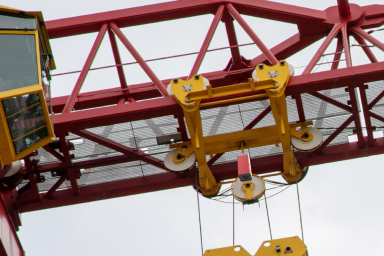

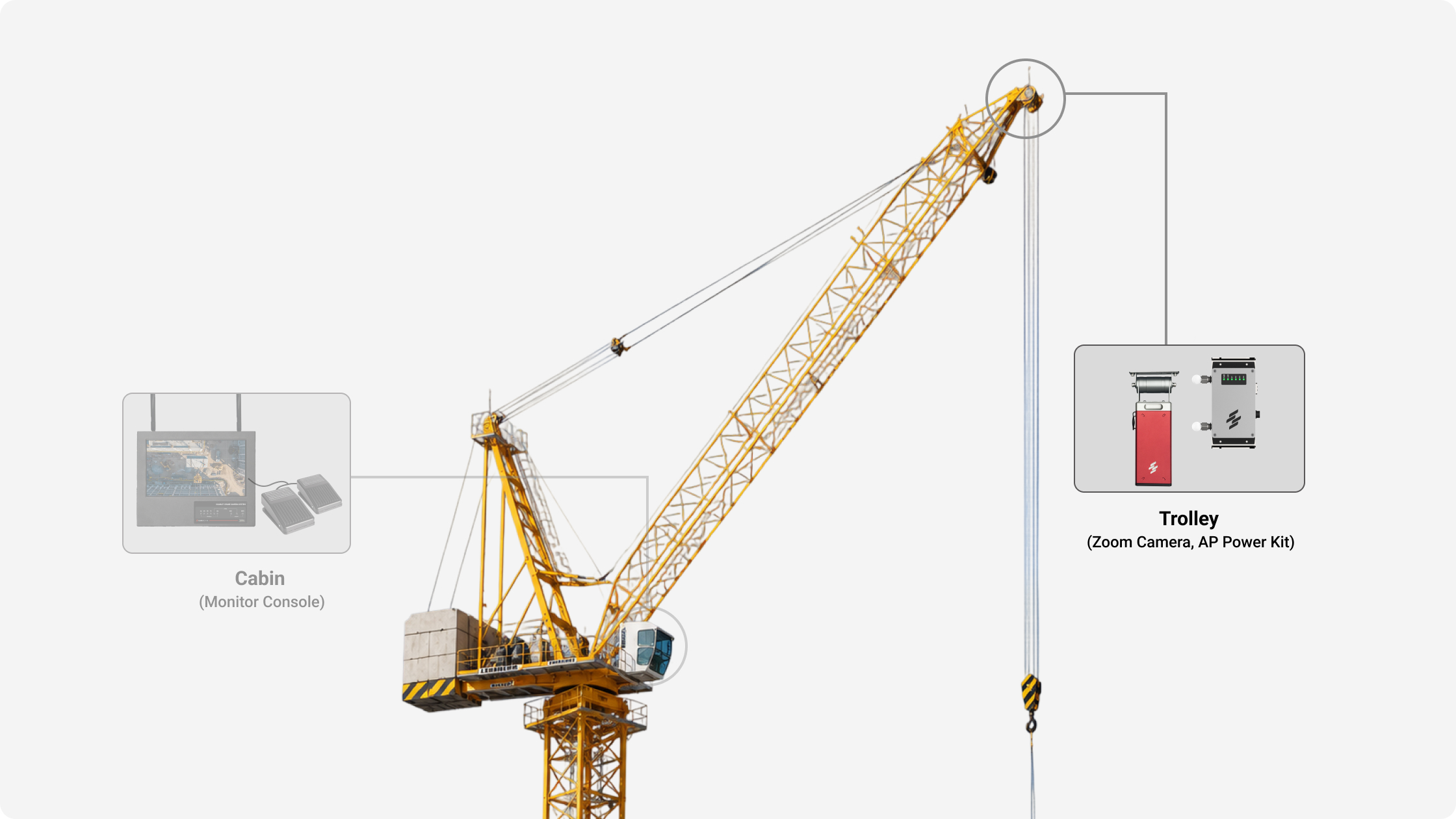

Mounted on the trolley, the SkyTitan camera provides live footage, top-view perspective of the hook and load, with video transmitted through 5 GHz wireless technology.

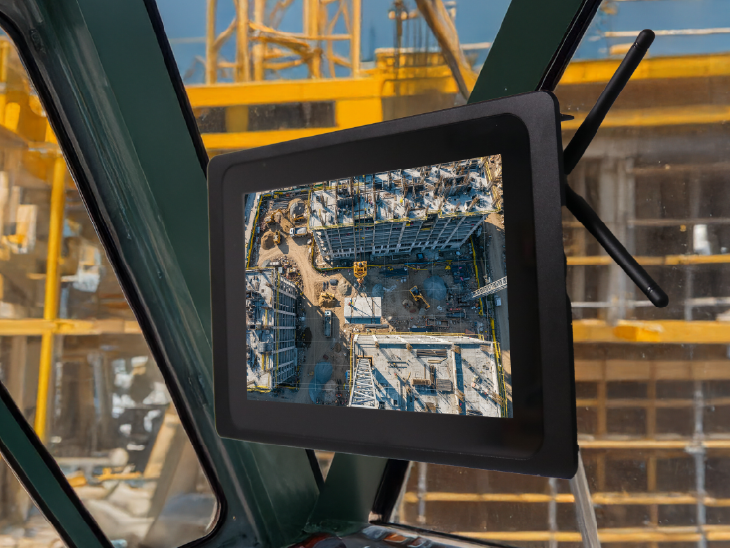

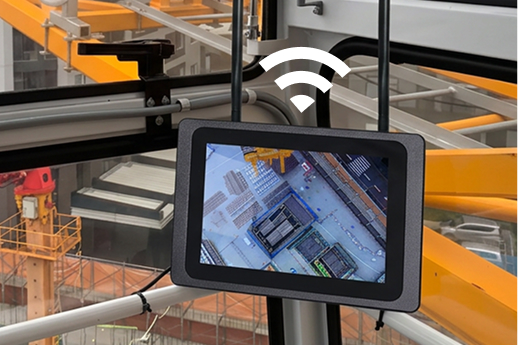

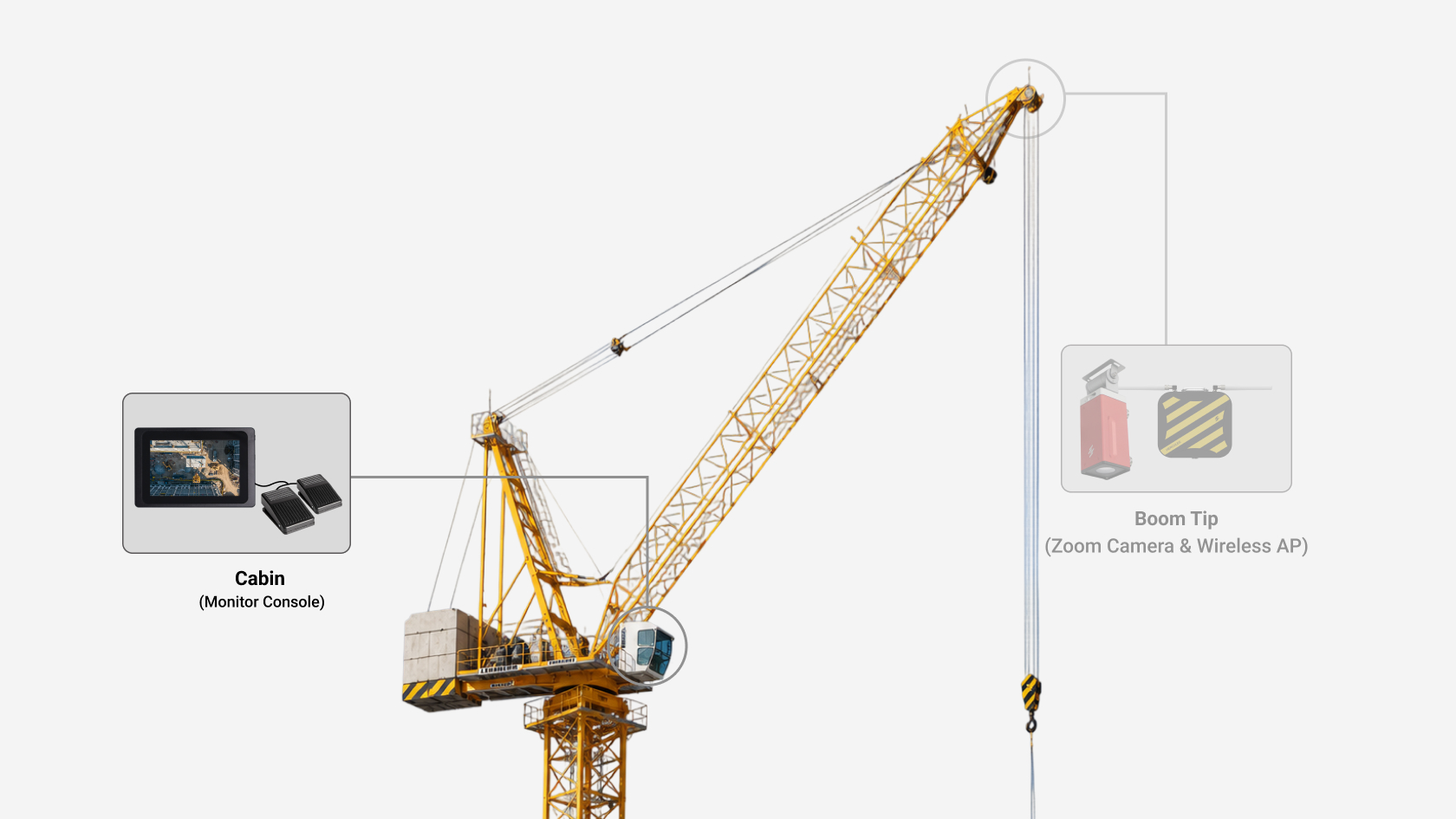

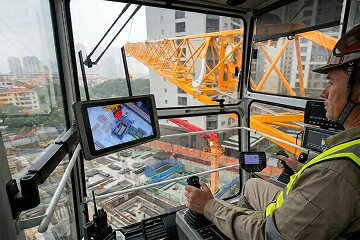

Operator Monitoring & Playback
Clear Visuals and Video Recording

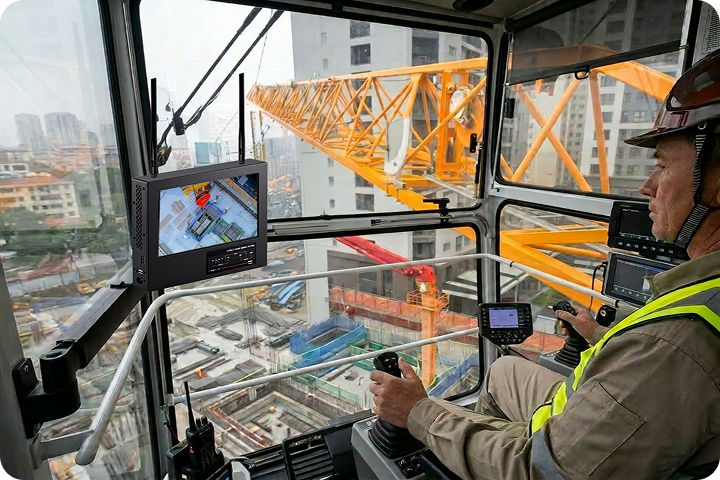

Live footage appears directly in the operator’s cabin while the built-in recorder stores up to 30 days of video for safety review and performance checks.

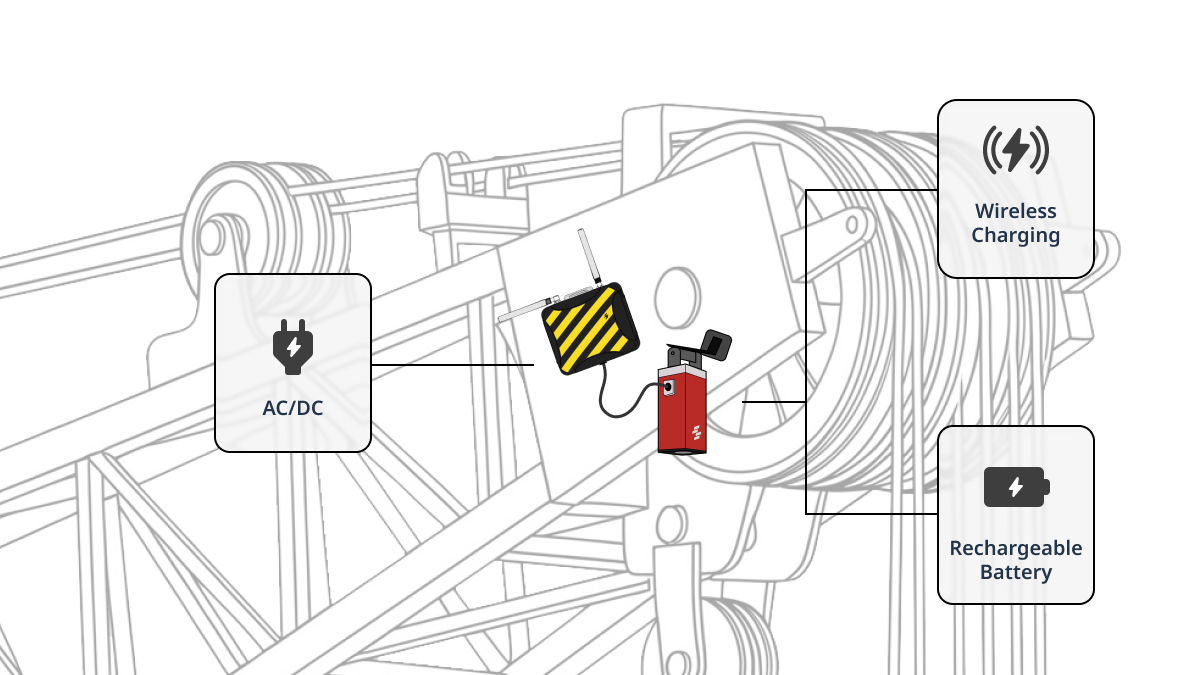

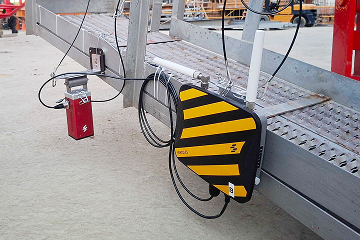

Wireless Smart Battery System
Long Operation and Fast Charging
When the trolley docks, SkyTitan battery recharges with no cables or manual handling required. A 1-hour charge powers up to 8 hours of operation, ensuring continuous readiness.
Interested in This Solution? Get a Quote Now!
Get a quote on the SkyTitan wireless trolley tower crane camera.
Get a Quote
Clear Visibility to Ensure Crane Safety
Tower crane operators often have a limited view through the cabin windows and rely on signal personnel for lifts beyond their line of sight. SkyTitan solves this challenge with a trolley-mounted camera that delivers real-time video of the hook, load, and surroundings with adjustable zoom. Operators can detect obstacles earlier, reduce communication dependency, and execute every lift with precision and safety.

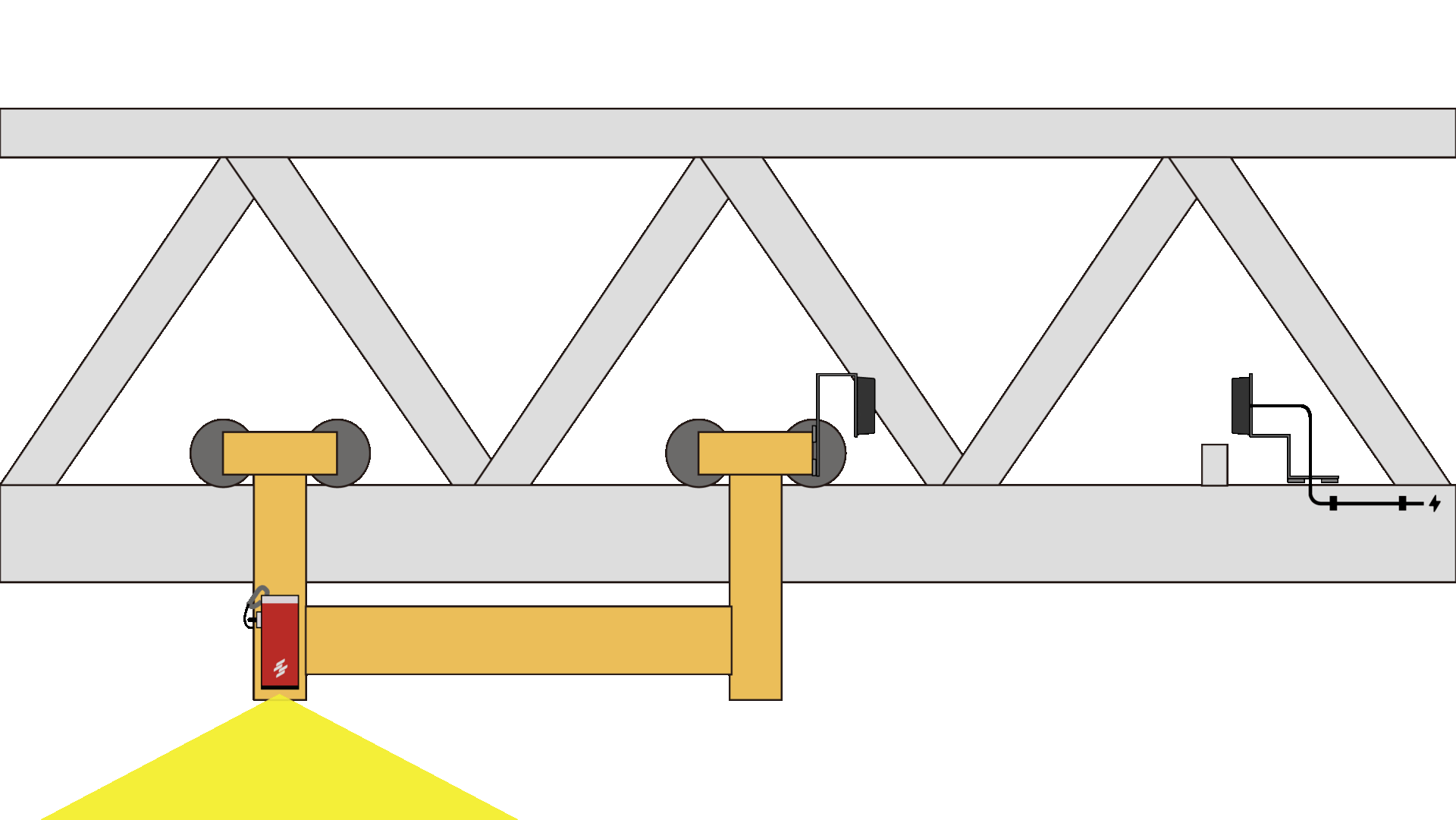

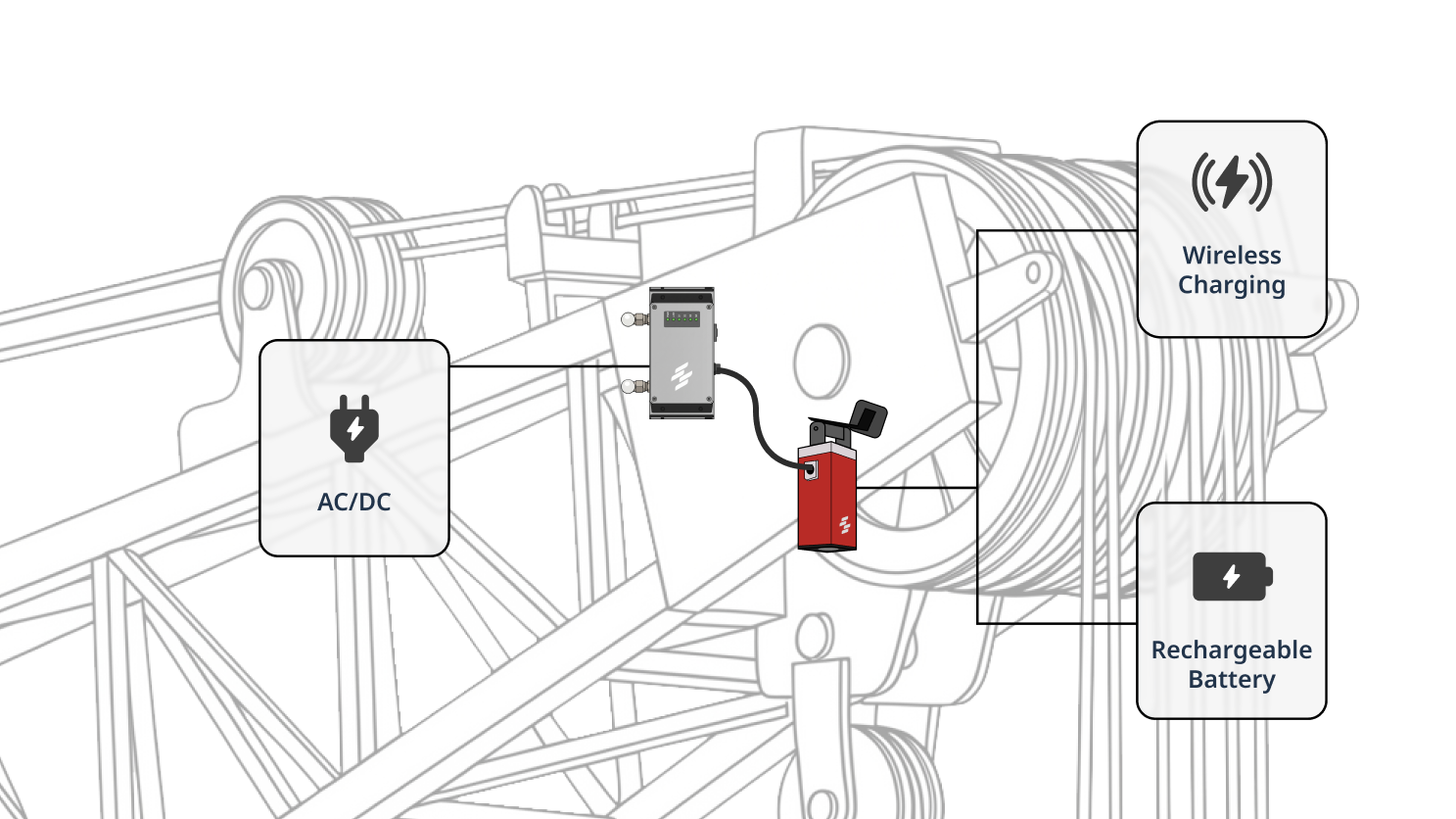

Continuous Power, Less Downtime for Construction
Wireless crane camera power loss can disrupt lifting schedules, so SkyTitan is built to stay operational with minimal attention. Its battery system runs for up to five working days on a single charge, while the automatic docking system eliminates manual recharging—keeping operations on track without extra effort.
Versatile Use for Crane Boom Camera

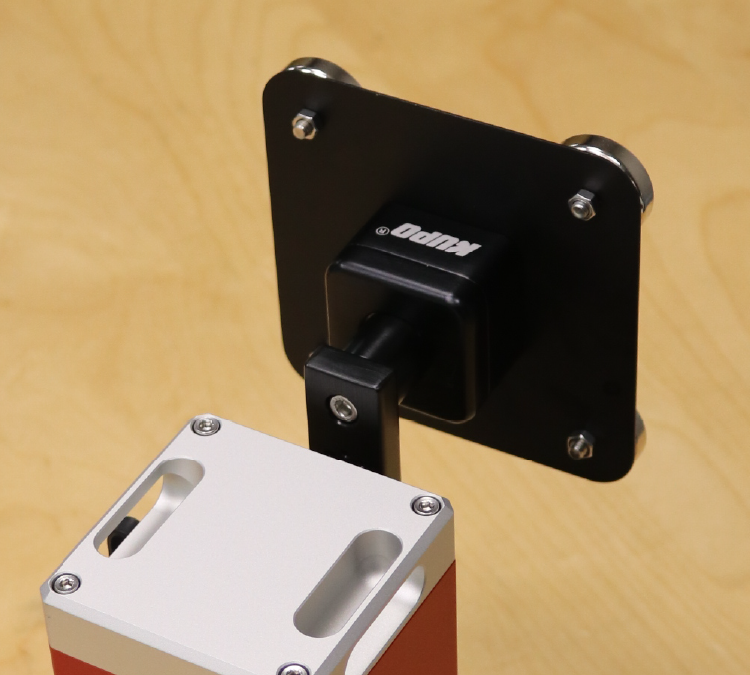

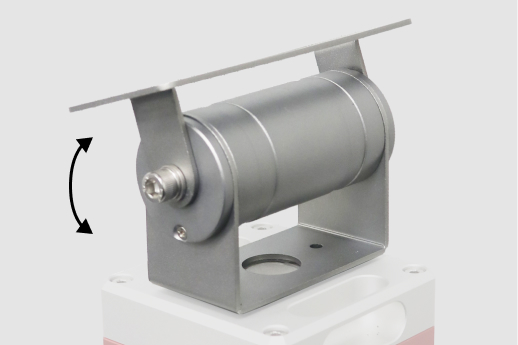

More than just for trolley-type cranes, SkyTitan camera can also be installed on crane booms or other crane parts using an optional self-leveling bracket. It maintains a stable downward view, ensuring consistent visibility of the load and surroundings even as the crane’s angle or height changes. The system’s configuration can also be adjusted to meet different crane applications and working environments.
Overhead Monitoring for Tower Cranes
Built to provide crane operators clear visibility and improve crane safety, specificially for trolley tower crane applications. The system is designed for low maintenance and reliable operation in demanding construction site.
25x zoom camera
Video playback & export
Blindspot coverage
Auto charging system
Frequently Asked Questions
Find quick answers below, or visit our FAQ page for more.
What kind of cameras are used on cranes?
Cranes typically use wireless crane cameras mounted on the hook block, boom or trolley to give operators view of the load and surroundings, especially during blind lifts.
Can crane cameras be used at night?
Yes, Scarlet crane camera systems provides bright & full-color video even at night or in low-light conditions such as inside construction buildings.
How can crane accidents be prevented?
With live video from crane camers, it improves crane operator visibility, helping them detects obstacles and prevent collisions before occur.
Our Clients

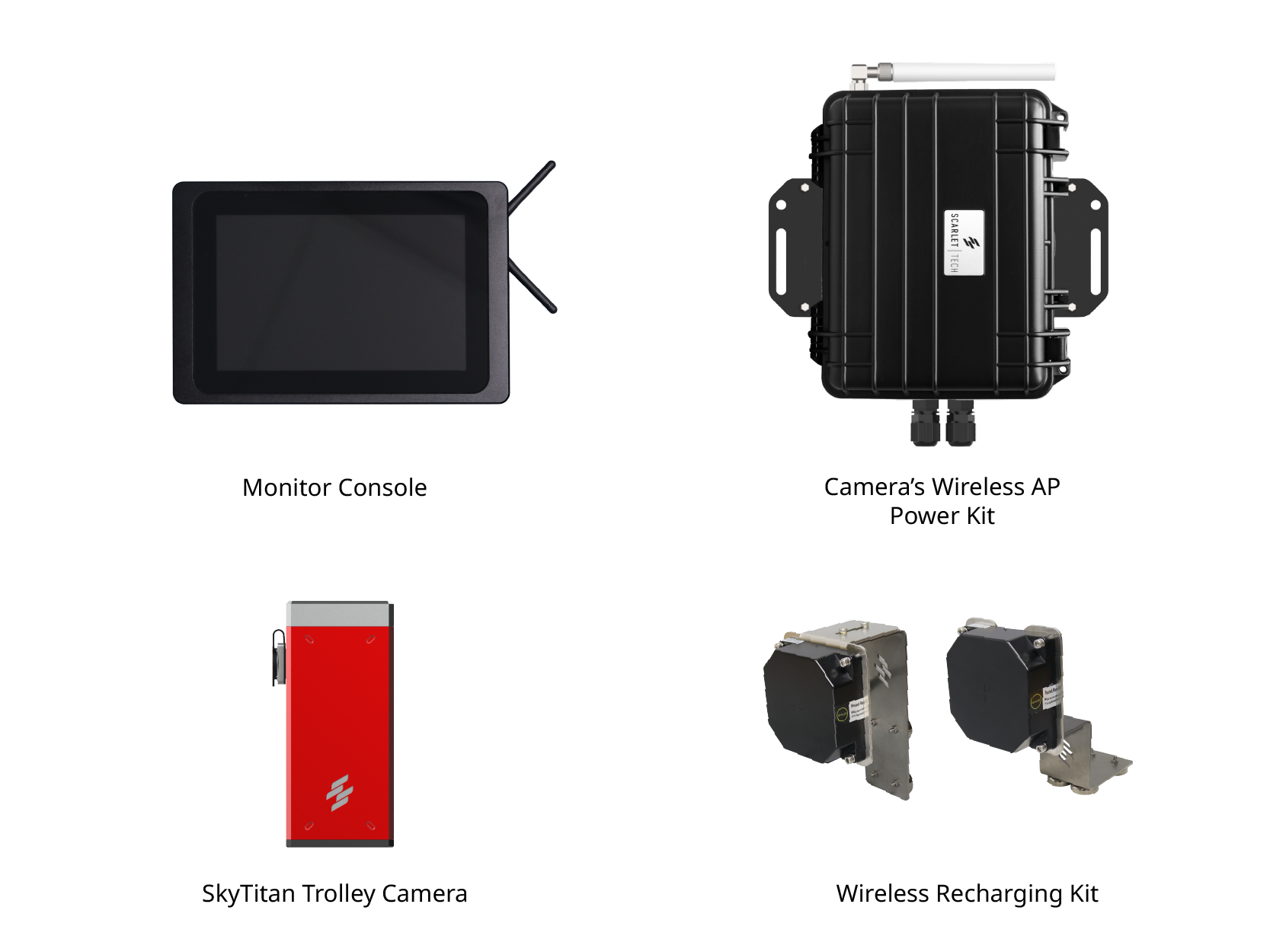

Specifications
- SkyTitan Camera
- Trolley AP
- Monitor Console
- Wireless Recharging Kit
- Features
- Package List
- FAQ
- Download
| Item | Description |
|---|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 2592 × 1944 (Ultra HD) |
| Optical Zoom | 25× Optical |
| Focal Length | 4.8 ~ 120 mm |
| Aperture | F1.5 ~ F22 |
| Field of View (Horizontal) | 57.6° (Wide) - 2.5° (Tele) |
| Min. Object Distance | 10 – 1500 mm (Wide – Tele) |
| Dimensions | 191 (L) × 83 (W) × 83 (H) mm |
| Weight | 2 kg (4.4 lbs) |
| Power Input | DC 12V / 2A |
| Storage | Built-in 512GB SD card (Backup recording) |
| Waterproof Rating | IP67 |
| Operating Temperature | -10°C ~ +60°C (14°F to 140°F) |

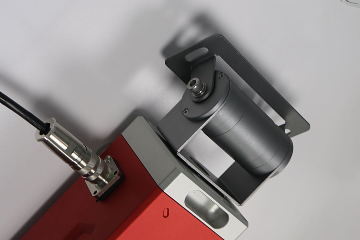

| Installation | Magnet mounting; Self-leveling bracket |
| Item | Description |
|---|---|
| Wireless Technology | Wi-Fi 5GHz (802.11 ac) |
| Antenna Type | 1× External Omnidirectional (N-type), 1× Internal |
| Capacity | 288 Wh (14.4V / 20Ah) |
| Battery Type | Li-Ion (Lithium Ion) |
| Operation Time | Up to 40 hours (Typical: ~30 hours @ 25°C)* *Actual battery operation time is subject to ambient temperature and camera settings. |
| Charging Time | ~5 hours |
| Power Input | DC 16.8V / 4A |
| Interface | 2× Proprietary RJ45 (Camera power & data); 1× GX-16 Aviation Connector (Charging) |
| Waterproof Rating | IP67 |
| Operating Temperature | System: -10°C to +60°C (14°F to 140°F); Battery: -40°C to +60°C (-40°F to 140°F) |
| Dimensions | 430 (L) × 358 (W) × 120 (H) mm |
| Weight | 3.4 kg (7.5 lbs) |
| Installation | Magnet mount; U-bolt bracket |
| Item | Description |
|---|---|
| Display | 10.1" IPS with LED Backlight / Antiglare (AG) with 3H hardness |
| Wireless Technology | Wi-Fi 5GHz (802.11 ac) |
| Power Input | 100W AC adapter Input: AC 110-220V, 50/60 Hz Output: DC 12V, 7A |

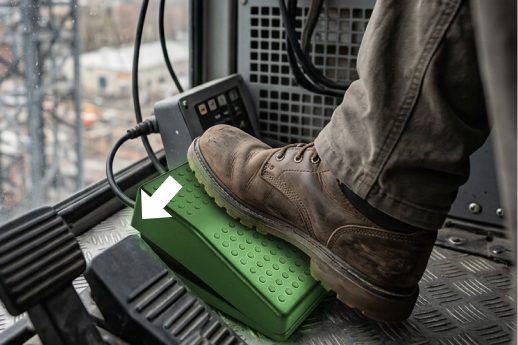

| Interface | 1× RJ45 Ethernet port; 2× USB 3.2 Gen 1 (5 Gbps) port; (Zoom pedal / Peripheral / storage); 1× Power adapter port (Charging) |
| Video Storage | Built-in 256GB SSD (for backup recording; Typical: ~140 hours @ FHD) |
| Operating Temperature | -10°C to +60°C (-14°F to 140°F) |
| Dimensions | 229 (L) × 150 (W) × 45 (H) mm (excluding VESA mount base) |
| Weight | 2.4 kg (5.3 lbs) |
| Installation | VESA mounting (75 x 75 mm or 100 x 100 mm) |
| Item | Description |
|---|---|
| Rated Power | 65 W |
| Charging Voltage | DC 16.8 V |
| Maximum Charge Current | 4A |
| Transmission Efficiency (Power adapter to battery) | > 85 % |
| Working Distance (Z-axis) | 5 to 15 mm |
| Alignment Tolerance | 10 mm (X); 5 mm (Y) |
| Power Input | 540W AC adapter Input: AC 90-264V, 40/70 Hz Output: DC 36V, 15A |
| Waterproof Rating | IP65 Water-resistant |
| Operating Temperature | -40°C to +60°C (-40°F to 140°F) |
| Dimensions | Transmitter / Receiver: 430 (L) × 358 (W) × 120 (H) mm Adapter: 190 (L) × 140 (W) × 74.5 (H) mm |
| Weight | Transmitter / Receiver: 0.8 kg (1.8 lbs) Adapter: 2.0 kg (4.4 lbs) |
| Features |
|---|
| • Ultra HD Top-View with 25x Zoom |
| • Real-Time 5GHz Wireless Streaming to Cabin |
| • Accident Prevention & Efficient Lifting |
| • Long-Life Battery with Wireless Charging at Jib |
| • Recording & Playback with Remote Access Option |
| • Magnet-Mounted Design for Effortless Setup |

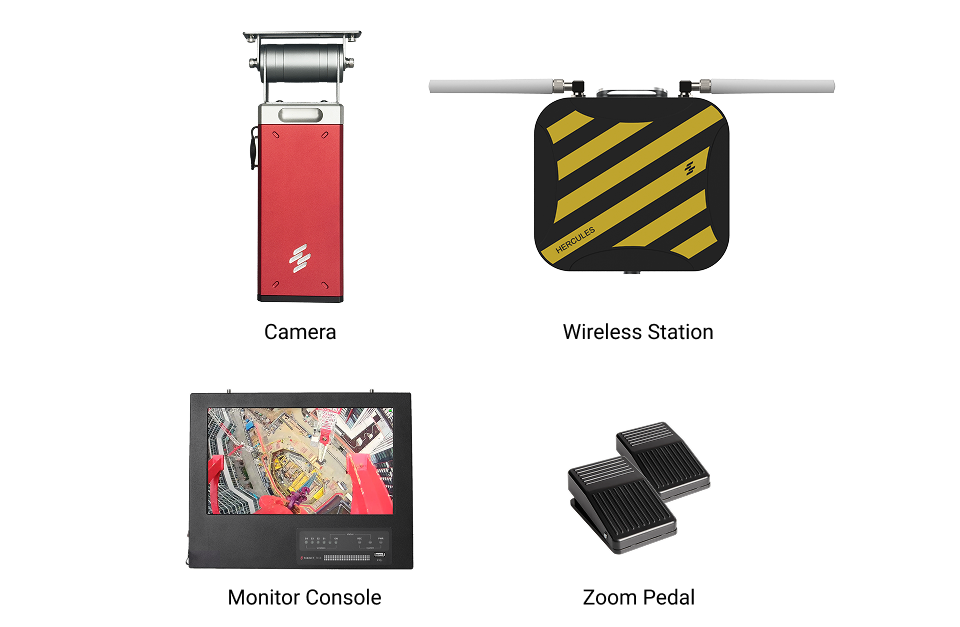

| Package List |
|---|

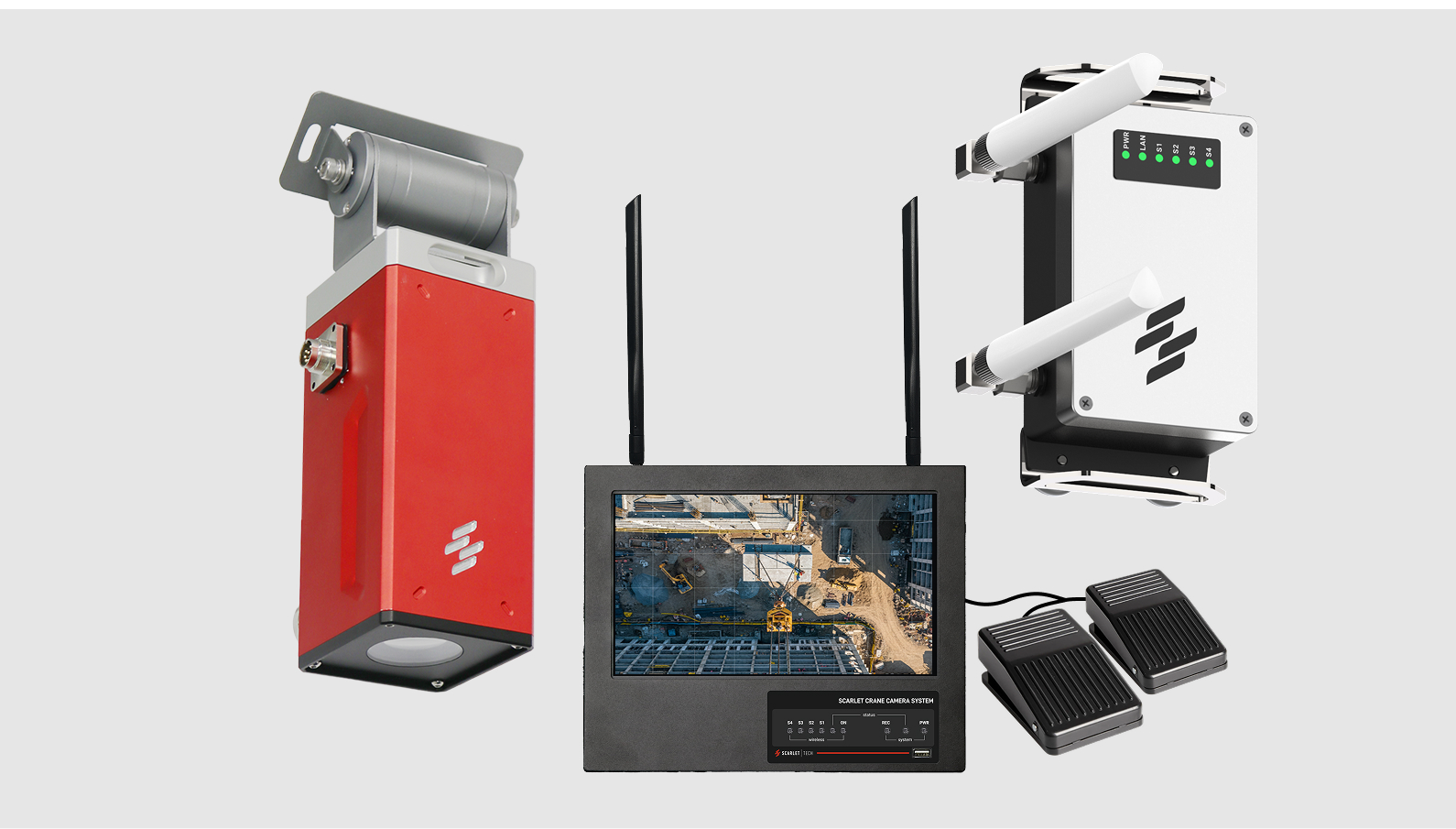

| • SkyTitan Camera |
| • Trolley AP |
| • Monitor Console |
| • Wireless Battery System |

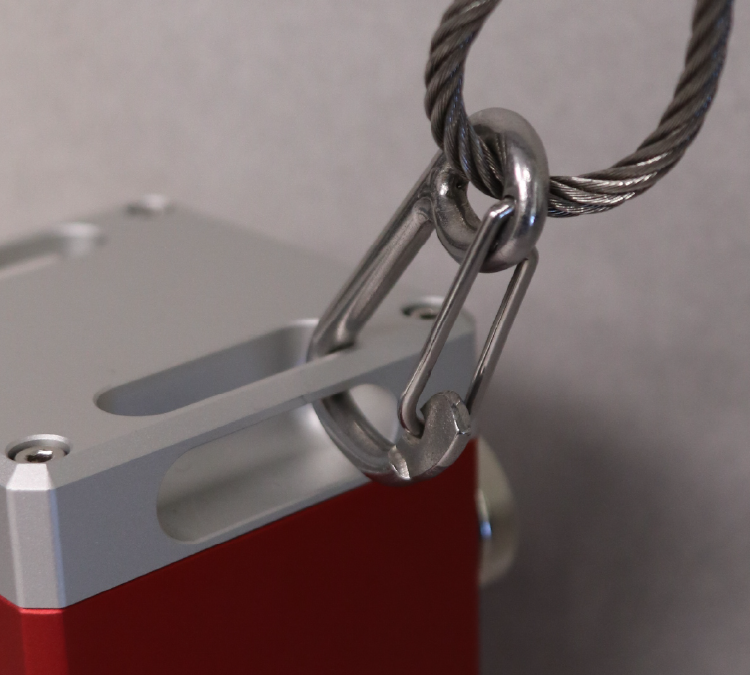

| • Safety Lanyard |
| • Antennas |
| • Monitor Clamp Mount |

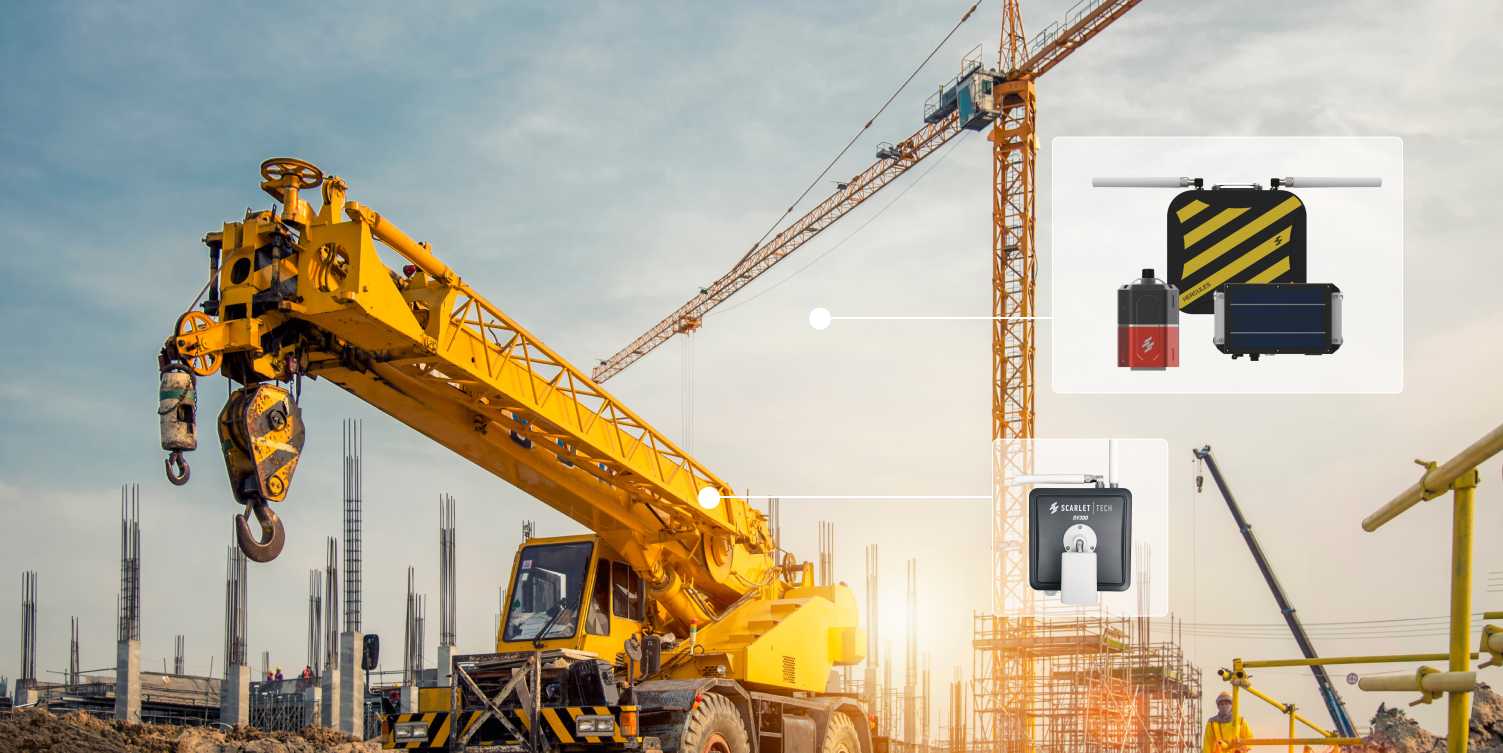

Flexible Integration with SV300 and Hercules Crane Cameras
Enhance your SkyTitan setup with an additional wireless hook block camera.
Compatible with SV300 and HerculesPro wireless crane camera systems, this provides an extra live view of the load directly from the crane hook. All connected seamlessly through SkyTitan’s 5 GHz wireless system.
Industries
Wireless crane cameras are well-suited for wind energy, construction, offshore, and port operations. In these industries, real-time visibility, lifting safety, and blind spot elimination are essential for efficient and secure operations. Designed for tough environments, they help improve coordination and reduce operational risks.
Renewable energy
Ensures safe and precise lifting during wind turbine installation and maintenance. With real-time visibility and robust performance in remote environments, it minimizes risks and improves coordination.
Construction
Wireless crane cameras minimize reliance on ground spotters and reduce the risk of material damage, streamlining operations and accelerating project timelines.
Offshore
In the challenging conditions of offshore platforms, wireless crane camera helps to provide real-time visibility during heavy lifting operations. It eliminates blind spots in material transfer and equipment installation.
Port
Ideal for busy port environments, providing operators with high-definition visibility during cargo loading and unloading. With reduced blind spots and improved communication, it ensures faster and safer operations, even in high-traffic or low-visibility conditions.
